Eaton B-Line B3170CT-3 Adjustable Swivel Ring 3 inches 1/2 inches-13

Product Description

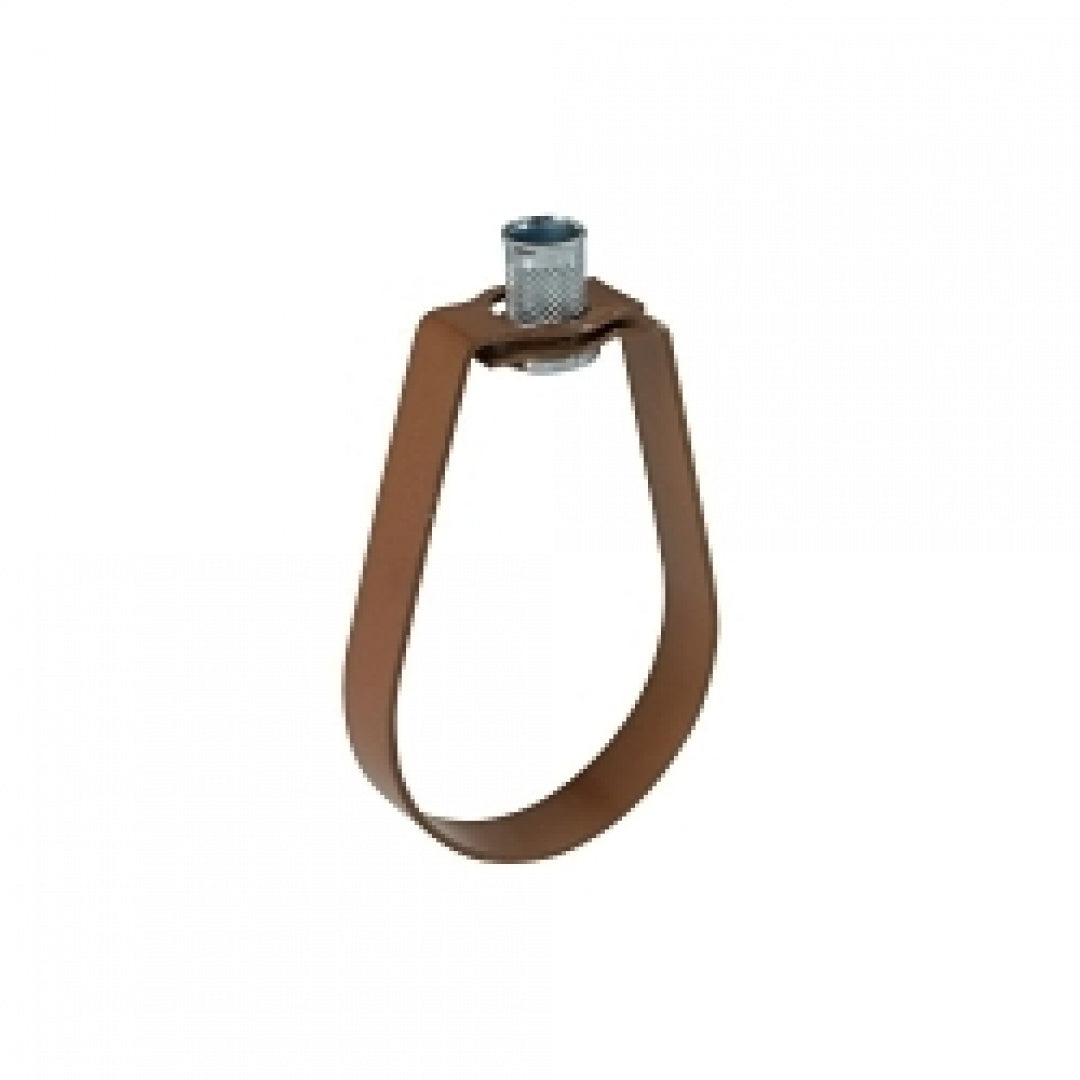

The EATON B-LINE B3170CT-3 is an adjustable swivel ring designed for suspending tubing and allowing vertical adjustment. It features a 3" nominal size and a 1/2"-13 rod size. Constructed from steel with a Dura-Copper finish, this hanger supports a maximum load of 250 lb and conforms to WW-H-171E & A-A-1192A, Type 10, ANSI/MSS SP-69 & SP-58, Type 10 standards.

• Recommended for the suspension of copper tubing, allowing for vertical adjustment
• 3 inch nominal size
• 250 lb. Max Load

Product Highlights

The B-Line B3170CT-3 adjustable swivel ring is ideal for suspending copper tubing, providing vertical adjustment and reliable support.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3170CT-3

Technical Specifications

• Manufacturer: EATON B-LINE
• SKU: B3170CT-3
• Product Name: Eaton B-Line series adjustable swivel hanger for copper tubing
• Catalog Number: B3170CT-3
• UPC: 781011099626
• Product Length/Depth: 5.977 in
• Product Height: 1.175 in
• Product Width: 3.322 in
• Application: Suspended tubing allowing vertical adjustment
• Pipe size - max: 3 in
• Model: Adjustable swivel hanger for copper tubing
• Type: Adjustable Swivel Ring, Loop
• Material: Steel
• Nominal Size: 3 inch
• Rod Size: 1/2-13
• Standards: WW-H-171E & A-A-1192A, Type 10, ANSI/MSS SP-69 & SP-58, Type 10
• Finish: Dura-Copper™
• Maximum Load: 250 lb
