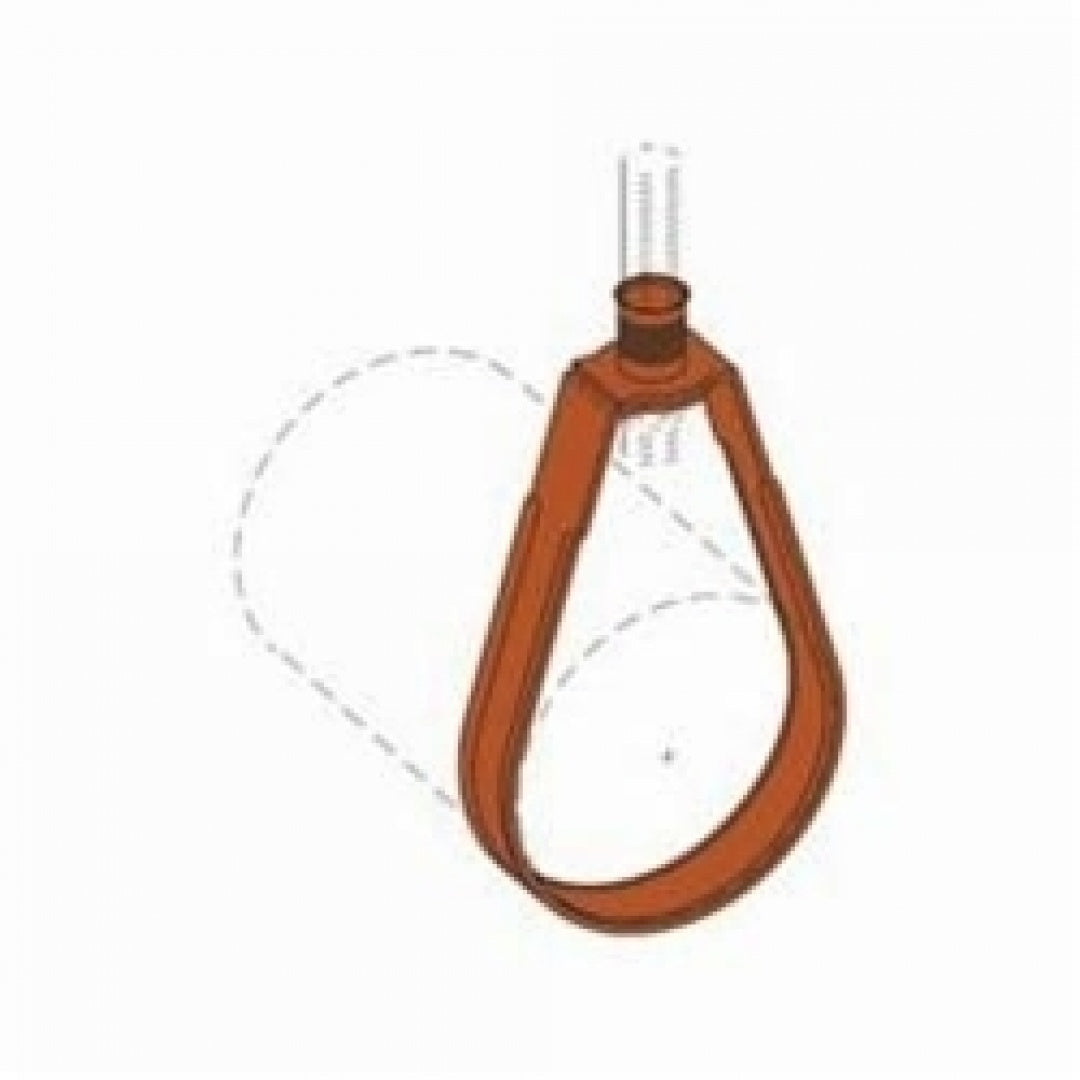

Eaton B-Line B3170CT-1/2 Adjustable Swivel Ring 1/2 inches

Product Description

The EATON B-LINE B3170CT-1/2 is an adjustable swivel ring designed for suspending copper tubing, allowing for vertical adjustment. It has a max pipe size of 1/2 inch and a 3/8-16 rod size. Constructed from dura copper and steel, this hanger supports a work load limit of 180 lb.

• Recommended for the suspension of copper tubing
• Allows for vertical adjustment
• Dura copper and steel

Product Highlights

This adjustable swivel ring is ideal for suspending copper tubing, providing vertical adjustment and reliable support.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3170CT-1/2

Technical Specifications

• Manufacturer: EATON B-LINE
• SKU: B3170CT-1/2
• Product Name: Eaton B-Line series adjustable swivel hanger for copper tubing
• Catalog Number: B3170CT-1/2
• UPC: 781011099404
• Product Length/Depth: 3.249 in
• Product Height: 0.951 in
• Product Width: 1.11 in
• Product Weight: 0.131 lb
• Product Type: Adjustable swivel hanger for copper tubing
• Application: Suspended tubing allowing vertical adjustment
• Pipe size - max: 0.5 in
• Model: Adjustable swivel hanger for copper tubing
• Style: Plastic coated
• Type: Type 10
• Material: Dura Copper Steel
• ANSI: ANSI SP-58 Type 10, ANSI SP-69
• ASTM: ASTM A-1011
• Coating: Copper Plated, DURA-COPPER
• Collection: B3170 Series
• Color Finish Category: Copper Tones
• Color Finish Name: Copper
• FM Approved: No
• Fits Pipe Size: 1/2 in
• MSS: MSS SP-58 Type 10, MSS SP-69
• Rod Size (in): 3/8 in
• UL Listed: No
• Work Load Limit: 180 lb
• Finish: Dura Copper™
• Load Capacity: 180 lb
• Rod Size: 3/8-16 in
• Manufacturer #: B3170CT-1/2
• Series: B3170CT
• Suitable For Use With: Copper Tube
• Temperature Rating: 650 deg F
