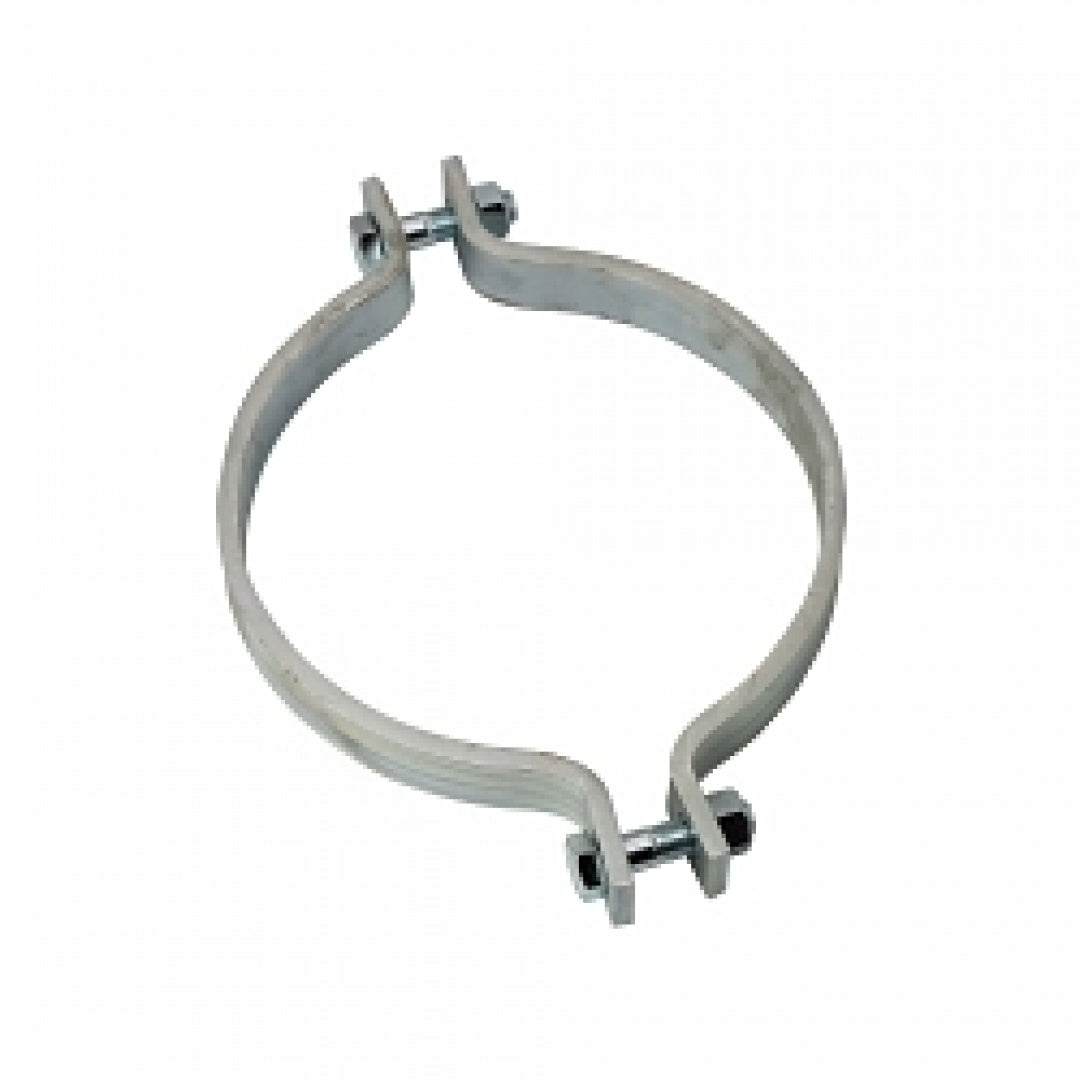

Eaton B-Line B3140-2 1/2pln Standard Pipe Clamp 2-1/2 inches

Product Description

The EATON B-LINE B3140-2 1/2PLN standard pipe clamp is designed for the suspension of non-insulated pipe or insulated pipe with B3151 shields. This 2-piece standard pipe clamp is made of steel with a plain finish. It is suitable for use with B3200 weldless eye nut, B3210 eye rod or B3211 welded eye rod.

• Recommended for the suspension of non-insulated pipe or insulated pipe with B3151 shields
• 2-Piece Standard construction
• Load Capacity 1040 Lb at 650 Deg F, 810 Lb at 750 Deg F

Product Highlights

The EATON B-LINE standard pipe clamp is made of steel with a plain finish and is suitable for use with various eye nuts and rods.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3140-2 1/2PLN
• Country of Origin: CN

Technical Specifications

• Manufacturer: EATON B-LINE
• Nominal Size: 2-1/2 in
• Bolt Size: 1/2-13 in
• Finish: Plain
• Item Name: Pipe Clamp
• Load Capacity: 1040/810 lb
• Material: Steel
• Model: B3140
• Temperature Rating: 750 deg F
• Type: Standard
• Dimension: 6-9/16 in L
• Product Height: 3.28"
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Brand Name: Eaton
• Construction: Two Piece
• Size: 2-1/2 In
• Special Features: Load Capacity 1040 Lb at 650 Deg F, 810 Lb at 750 Deg F, Weight 130 Lb per 100
• Sub Brand: B-Line series
• UNSPSC: 39121311
• Conduit Size: 2-1/2 in
• Pipe/Tube Size: 2-1/2 in
• Series: B3140
• Specifications: 1/2-13 Bolt
• Suitable For Use With: B3200 Weldless Eye Nut, B3210 Eye Rod or B3211 Welded Eye Rod
• Package Width: 3 in
• Package Height: 3.28 in
• Package Length: 7 in
• ASTM E-119|NFPA 251|UL 1479: USCG/NAVSEA Approved
