Eaton B-Line B3100-8PLN Clevis Hanger 8 inches

Product Description

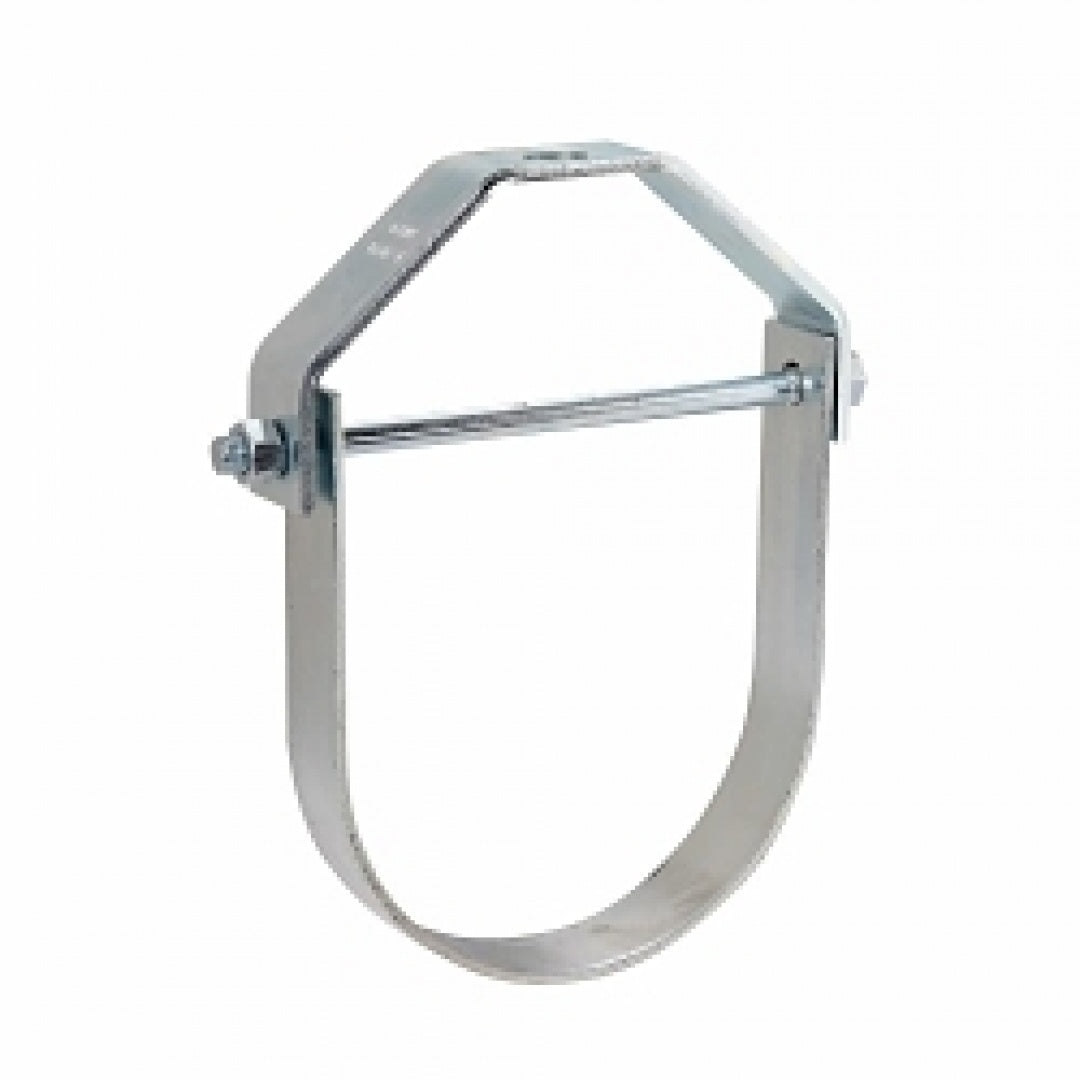

The EATON B-LINE B3100-8PLN is a clevis hanger designed for overhead installation. It has a maximum pipe size of 8 inches and features a design aligned bolt hole. It is recommended for the suspension of non-insulated pipe or insulated pipe with B3151 shield. The hanger is made of steel with a plain finish.

• Design aligned bolt hole for overhead install
• Pipe will not pinch when installing
• 15 deg swing in either direction allows pipe to easily feed thru

Product Highlights

Standard clevis hanger with 8 in pipe size, 3/4-1 rod, and 2000 lb load capacity. Steel construction with plain finish.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-8PLN

Technical Specifications

• MPN: B3100-8PLN
• Brand: EATON B-LINE
• Product Length/Depth: 12.938 in
• Product Height: 1.75 in
• Product Width: 11 in
• Compliances: Not Applicable
• Certifications: cUL Listed
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating temperature - max: 650 °F
• Pipe size - max: 8 in
• Model: Slide rite clevis hanger
• Finish: Plain
• Material: Steel
• Load Capacity: 2000 lb
• Rod Size: 3/4-1
• Manufacturer: EATON
• Series: B3100
• Temperature Rating: 650 deg F
• Pipe Size: 8 in
