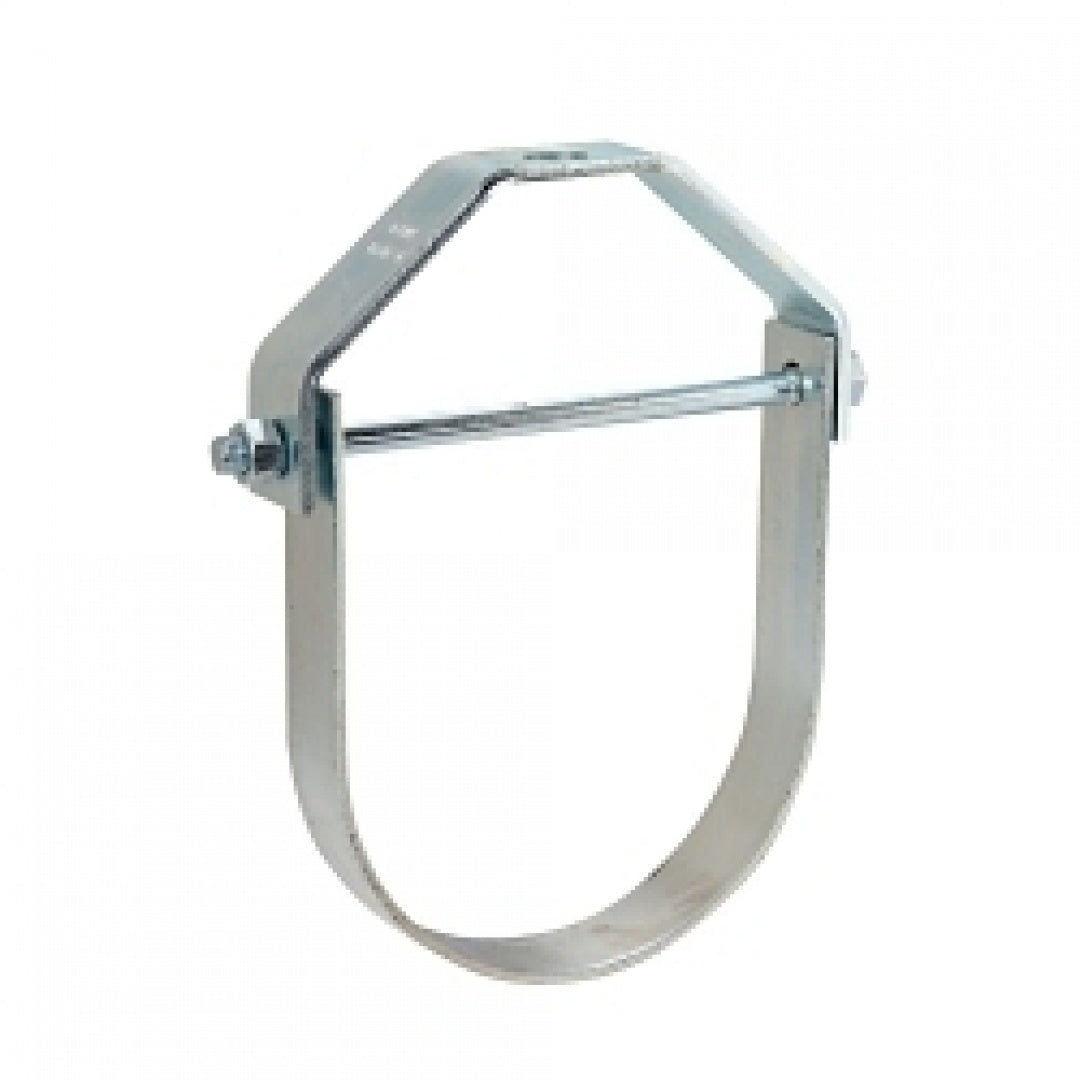

Eaton B-Line B3100-2 1/2PLN Standard Clevis Hanger 2-1/2 inches

Product Description

The EATON B-LINE B3100-2 1/2PLN is a standard clevis hanger designed for supporting pipes. This Slide-Rite clevis hanger is made of steel with a plain finish. It features a design aligned bolt hole for overhead installation and accommodates a maximum pipe size of 2.5 inches. It is suitable for various applications requiring secure pipe hanging.

• Design aligned bolt hole for overhead install
• Pipe will not pinch when installing
• 15 deg swing in either direction allows pipe to easily feed thru

Product Highlights

Standard clevis hanger made of steel with a plain finish, designed for easy overhead installation and secure pipe support.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-2 1/2PLN

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series Slide-Rite clevis hanger
• Catalog Number: B3100-2 1/2PLN
• UPC: 781011050368
• Product Length/Depth: 5.438 in
• Product Height: 1 in
• Product Width: 4.563 in
• Compliances: Not Applicable
• Certifications: cUL Listed UL Listed FM Approved
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating temperature - max: 650 °F
• Pipe size - max: 2.5 in
• Model: Slide rite clevis hanger
• Finish: Plain
• Material: Steel
• Rod size: 1/2" - 13
• Load Capacity: 1350 lb
• Pipe Size: 2-1/2 in
• Rod Size: 1/2-13
• Series: B3100
• Temperature Rating: 650 deg F
