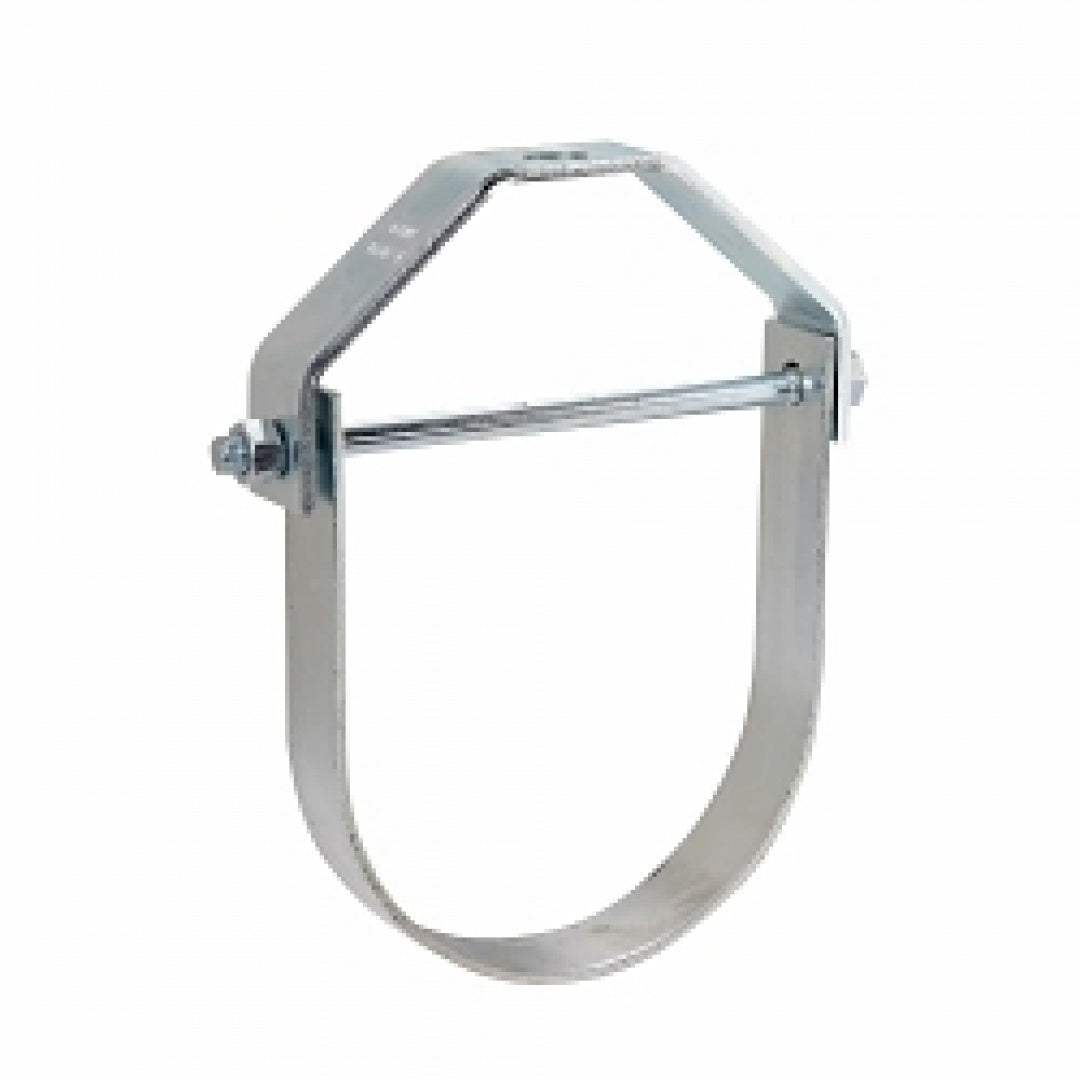

Eaton B-Line B3100-12PLN Clevis Hanger 12 inch

Product Description

The EATON B-LINE B3100-12PLN is a standard clevis hanger with a max pipe size of 12 inches. It is made of steel with a plain finish. The design features aligned bolt holes for overhead installation. It is cUL Listed and UL Listed.

• Design aligned bolt hole for overhead install
• Pipe will not 'pinch' when installing
• 15 deg swing in either direction allows pipe to easily feed thru

Product Highlights

The B3100-12PLN clevis hanger is suitable for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-12PLN
• Country of Origin: USA

Technical Specifications

• MPN: B3100-12PLN
• Brand: EATON B-LINE
• Manufacturer: EATON
• Product Length/Depth: 17.875 in
• Product Height: 1.75 in
• Product Width: 17.5 in
• Compliances: Not Applicable
• Certifications: cUL Listed, UL Listed
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating temperature - max: 650 °F
• Pipe size - max: 12 in
• Model: Slide rite clevis hanger
• Type: Type 1
• Finish: Plain
• Material: Steel
• UPC: 781011050849
• Rod size: 7/8" - 9
• Load Capacity: 3800 lb
• Rod Size: 7/8-9 TPI
• Temperature Rating: 650 deg F
• Height: 1.75 in
• Length: 17.875 in
• Weight: 11.24 lbs
• Pipe Size: 12 in
