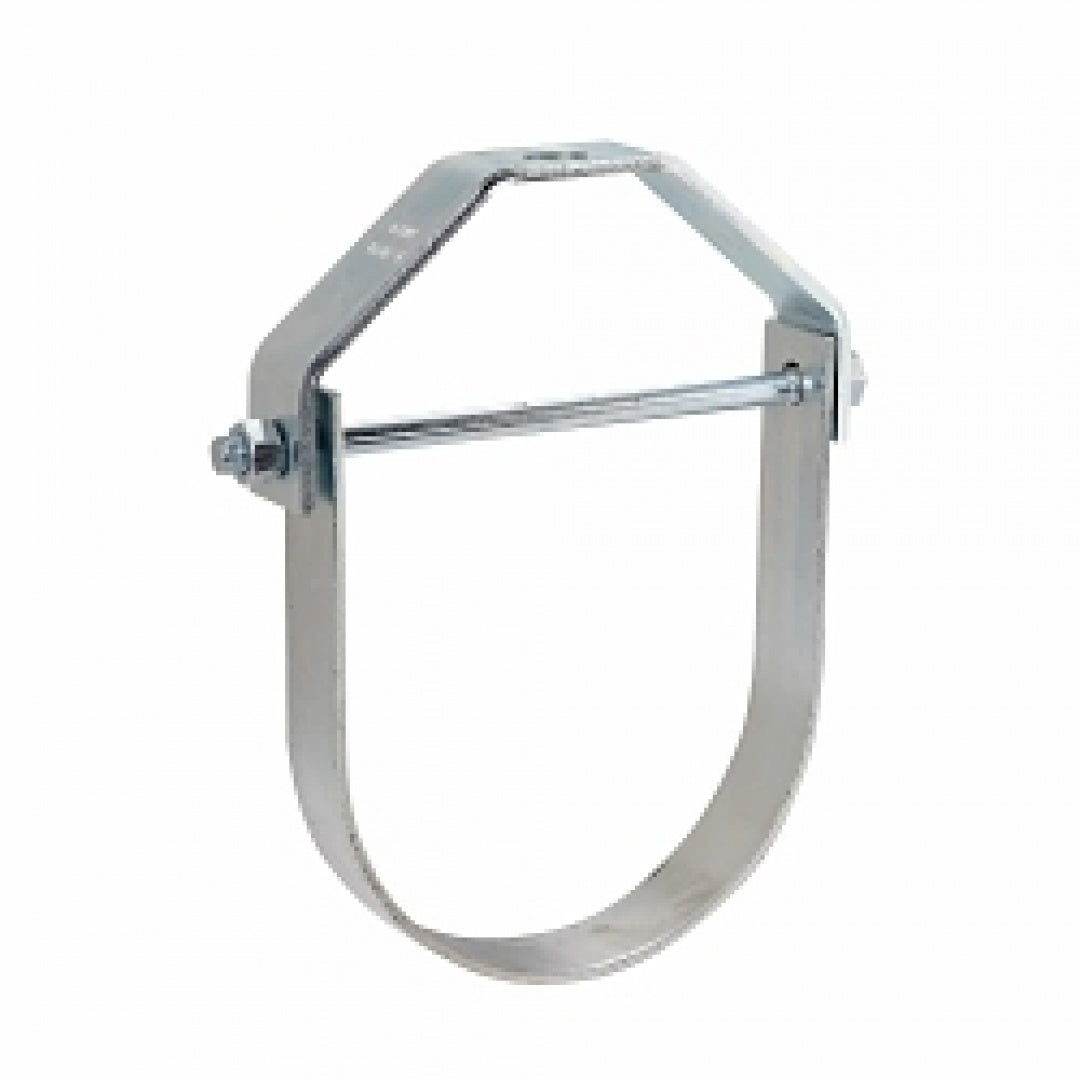

Eaton B-Line B3100-10PLN Clevis Hanger 10 inches

Product Description

The EATON B-LINE B3100-10PLN clevis hanger is designed for overhead installation. It accommodates a maximum pipe size of 10 inches and features a design aligned bolt hole for easy installation. It is made of steel with a plain finish and has a load capacity of 3600 lb.

• Design aligned bolt hole for overhead install
• Slide rite clevis hanger
• Pipe will not pinch when installing

Product Highlights

This steel clevis hanger supports pipes up to 10" with a 3600 lb load capacity and withstands temperatures up to 650°F.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-10PLN
• Country of Origin: USA

Technical Specifications

• MPN: B3100-10PLN
• Brand: EATON B-LINE
• Manufacturer: EATON
• Product Length/Depth: 15.5 in
• Product Height: 1.75 in
• Product Width: 14.875 in
• Compliances: Not Applicable
• Certifications: cUL Listed, UL Listed
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating Temperature - Max: 650 °F
• Pipe Size - Max: 10 in
• Model: Slide rite clevis hanger
• Type: Type 1
• Finish: Plain
• Material: Steel
• UPC: 781011050788
• UNSPSC: 39121311
• Pipe Size: 10 in
• Rod Size: 7/8-9 in
• Load Capacity: 3600 lb
• Series: B3100
• Temperature Rating: 650 deg F
• Standard/Approvals: ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL Listed
• Length: 16.0
