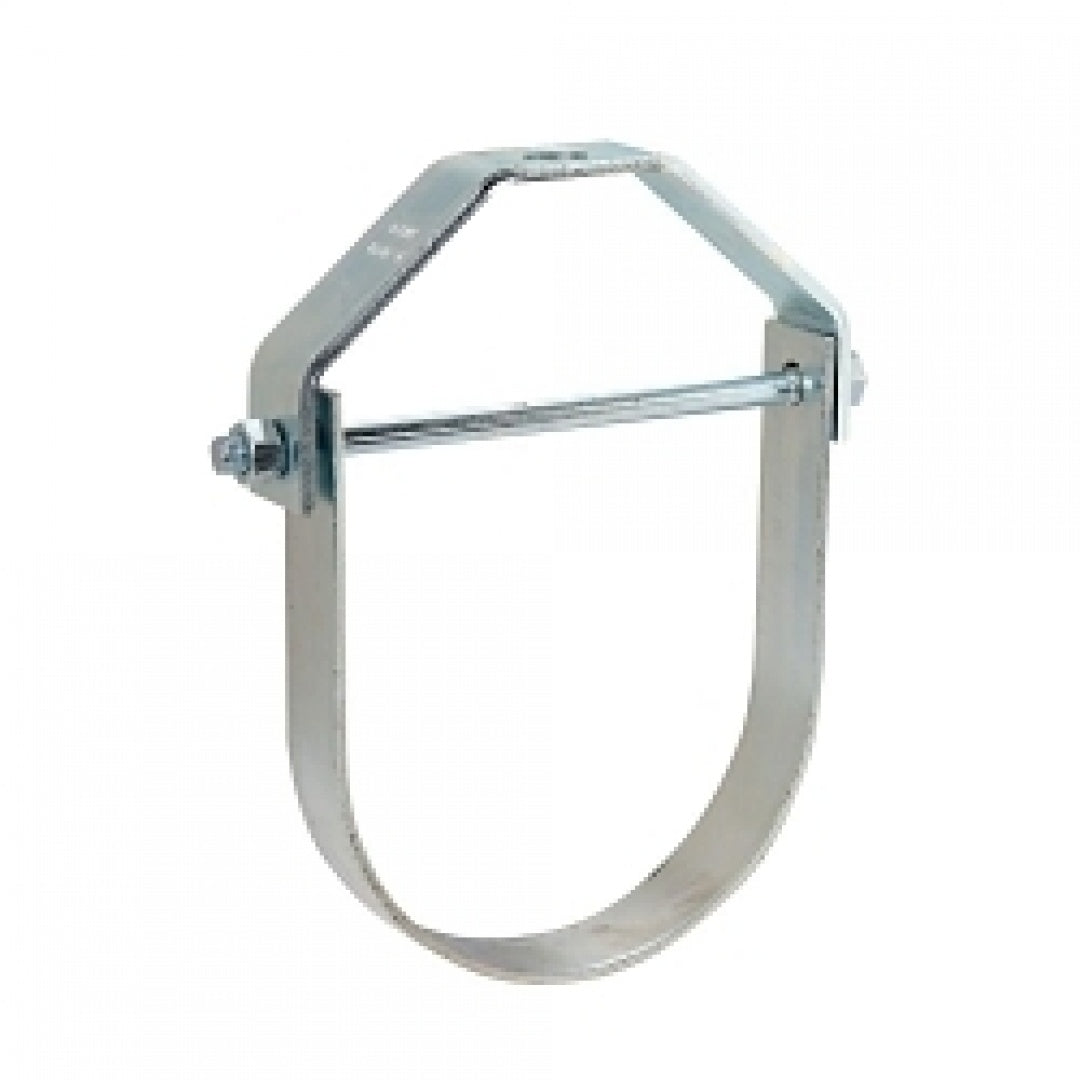

Eaton B-Line B3100-1 1/4ZN Standard Clevis Hanger 1 1/4 inches

Product Description

The EATON B-LINE B3100-1 1/4ZN standard clevis hanger is designed for suspending non-insulated pipe or insulated pipe with a shield. Constructed from steel with a zinc finish, it supports a pipe size of 1-1/4 inches and accommodates a 3/8-16 rod. It features a design aligned bolt hole for overhead installation.

• Designed aligned bolt hole for overhead install
• 15 deg swing in either direction allows pipe to easily feed thru
• Recommended for the suspension of non-insulated pipe or insulated pipe with B3151 shield

Product Highlights

The B-Line clevis hanger is made of steel with zinc finish and supports a max load capacity of 730 lb.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-1 1/4ZN
• Country of Origin: USA

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Length/Depth: 3.212 in
• Product Height: 0.75 in
• Product Width: 3 in
• Product Type: Clevis hanger
• Operating temperature - max: 650 °F
• Pipe size - max: 1.25 in
• Finish: Zinc
• Material: Steel
• Load Capacity: 730 lb
• Pipe Size: 1-1/4 in
• Rod Size: 3/8-16
• Series: B3100
• Temperature Rating: 650 deg F
• Applications: PIPE HANGERS,MECH.-CLEVIS HANGERS
• Brand: B-Line
• Sub Brand: Pipe Hangers
• Size: 1-1/4 In
