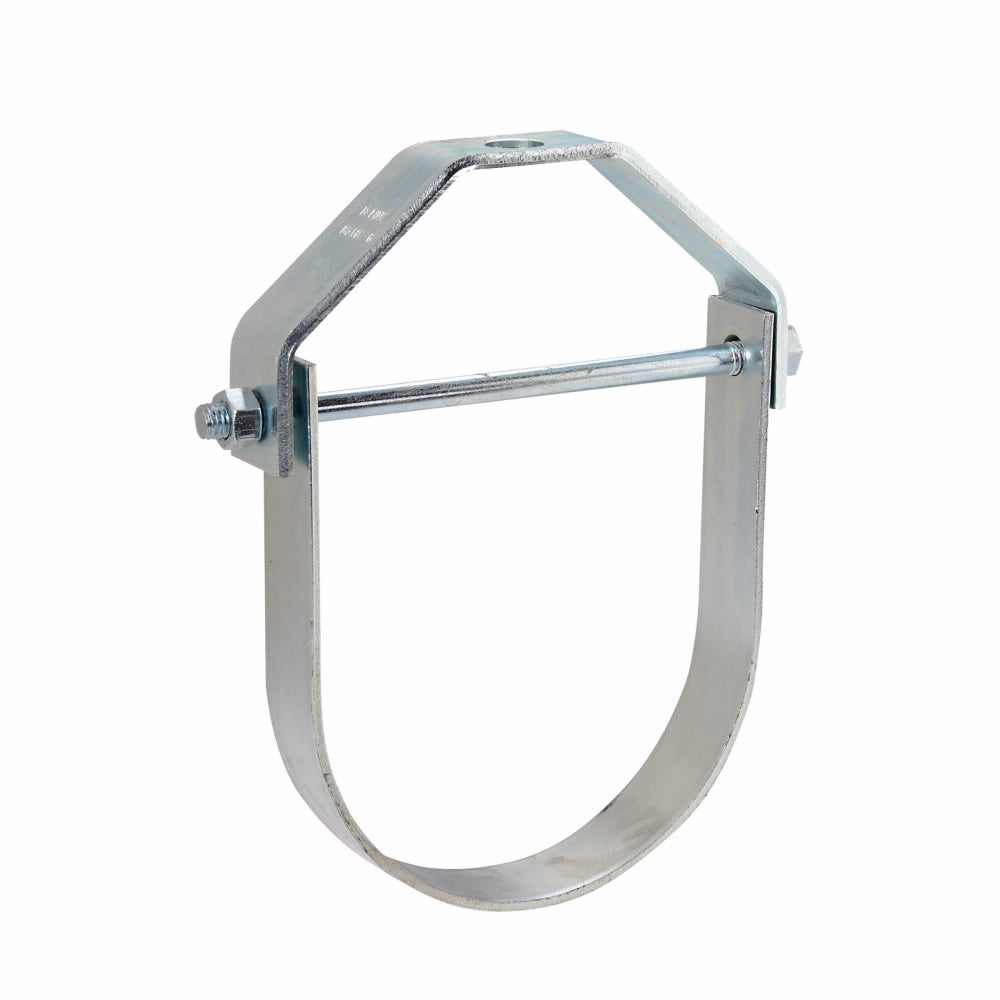

EATON B-LINE B3100-1 1/4PLN CLEVIS HANGER 1.25 IN

Product Description

The Eaton B-Line B3100-1 1/4PLN clevis hanger is a steel support designed for overhead installation. It accommodates pipes up to 1.25 inches in diameter. This hanger has a plain finish and features a bolt hole that is aligned for ease of use.

• Designed for overhead pipe installation
• Maximum pipe size of 1.25 inches
• Operating temperature up to 650 degrees Fahrenheit

Product Highlights

This clevis hanger is built for durability and reliability, making it suitable for various mechanical applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Product Name: Clevis Hanger

Technical Specifications

• Catalog Number: B3100-1 1/4PLN
• UPC: 781011050184
• Product Length: 3.212 inches
• Product Height: 0.75 inches
• Product Width: 3 inches
• Product Weight: 0.4 pounds
• Certifications: cUL Listed, UL Listed, FM Approved
• Max Operating Temperature: 650 degrees Fahrenheit
• Type: Type 1
• Finish: Plain
• Material: Steel
• Applications: Pipe Hangers, Mechanical Clevis Hangers
• Size: 1-1/4 inches
