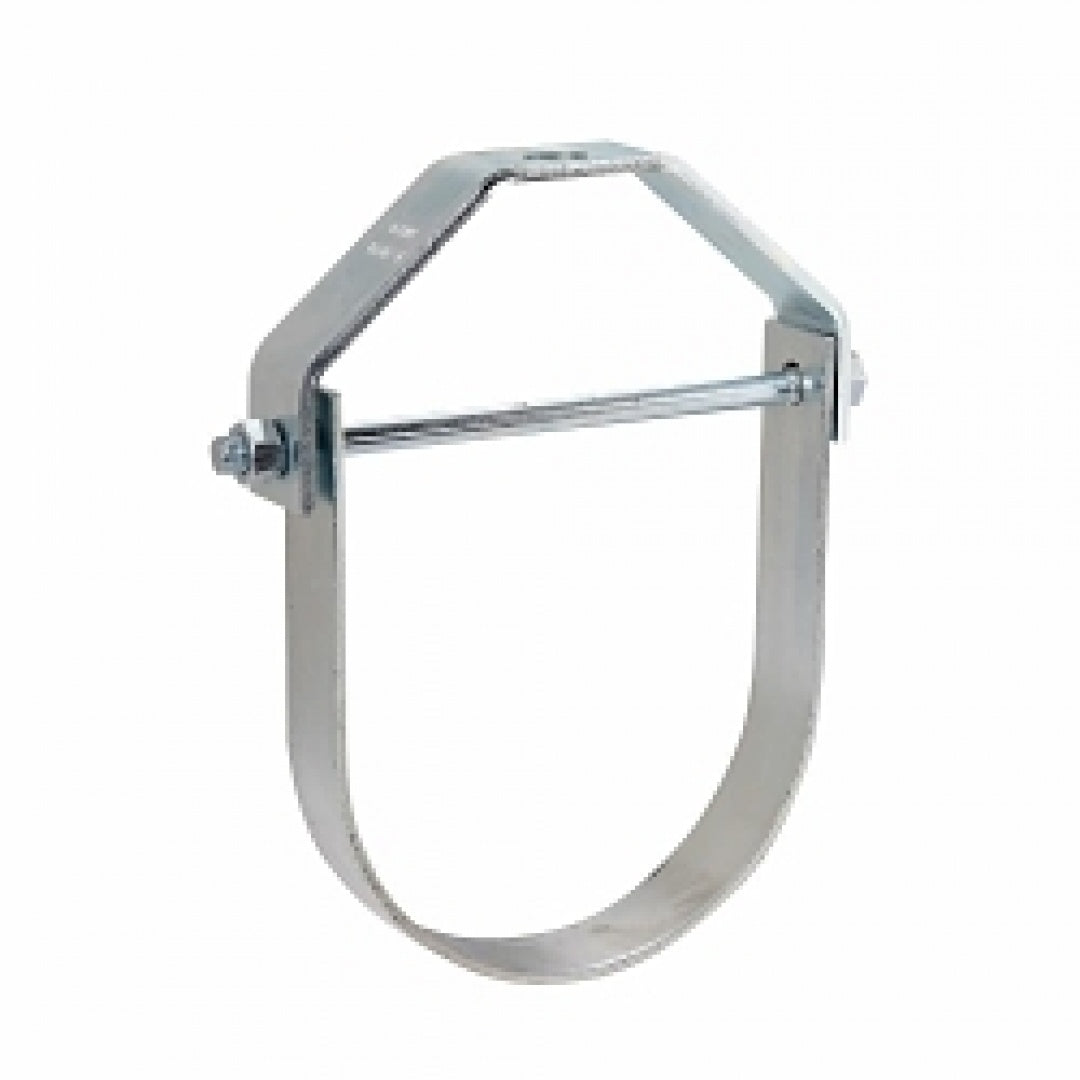

Eaton B-Line B3100-1 1/2PLN Standard Clevis Hanger 1-1/2 inches

Product Description

The EATON B-LINE B3100-1 1/2PLN is a standard clevis hanger with a 1-1/2" pipe size. It features a design aligned bolt hole for overhead installation. Constructed of steel with a plain finish, this Type 1 hanger is suitable for use with insulated or non-insulated pipes. It measures 3.39" L x 0.75" H x 3.25" W.

• Design aligned bolt hole for overhead install
• Pipe will not pinch when installing
• 15° swing in either direction allows pipe to easily feed thru

Product Highlights

Standard clevis hanger with design aligned bolt holes for quick overhead installation. Steel construction with a plain finish.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-1 1/2PLN
• Country of Origin: US - United States

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series clevis hanger
• Catalog Number: B3100-1 1/2PLN
• UPC: 781011050245
• Product Length/Depth: 3.39 in
• Product Height: 0.75 in
• Product Width: 3.25 in
• Compliances: Not Applicable
• Certifications: cUL Listed UL Listed FM Approved
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating temperature - max: 650 °F
• Pipe size - max: 1.5 in
• Model: Slide rite clevis hanger
• Type: Type 1
• Finish: Plain
• Material: Steel
• ECCN: EAR99
• UNSPSC: 39121311
• Series: B3100
• Rod Size: 3/8 in.-16 TPI
• Length: 3.39 in.
• Height: 0.75 in.
• Width: 3.25 in.
• Load Capacity: 730 lb
• Pipe Size: 1-1/2 in
• Temperature Rating: 650 deg F
• Suitable For Use With: Insulated/Non-Insulated Pipe
