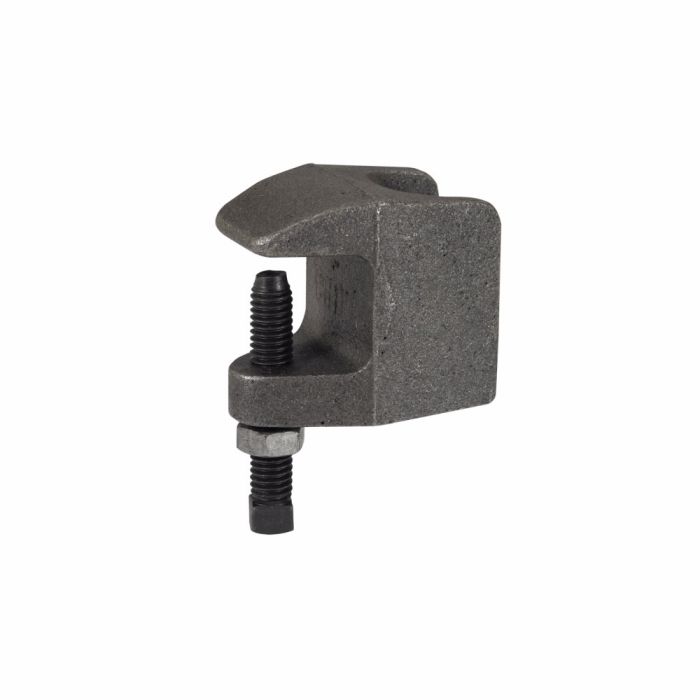

Eaton B-Line B303438PLN C-Clamp 3/8-16 3/4in 560lb

Product Description

The EATON B-LINE B303438PLN is a mechanical C-Clamp with a 3/8-16 rod, designed for use with pipe hangers. It supports a 560 lb load and accommodates a 3/4 in flange thickness. It is made from cast malleable steel with a plain finish and measures 1-5/8 in L x 7/8 in W x 2 in H. Includes a hardened cup point set screw and jam nut.

• Recommended for hanging from steel beam where flange thickness does not exceed 3/4 in
• Beveled lip allows hanging from top flange where clearance is limited
• May be installed with the set screw in the up or down position

Product Highlights

The B-Line C-Clamp is ideal for steel beam hanging, offering easy installation and unlimited rod adjustment.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B303438PLN

Technical Specifications

• Manufacturer: EATON
• Load Capacity: 560 lb
• Finish: Plain
• Flange Thickness: 3/4 in
• Rod Size: 3/8-16
• Type: Mechanical
• Series: B3034
• Suitable For Use With: Pipe Hanger
