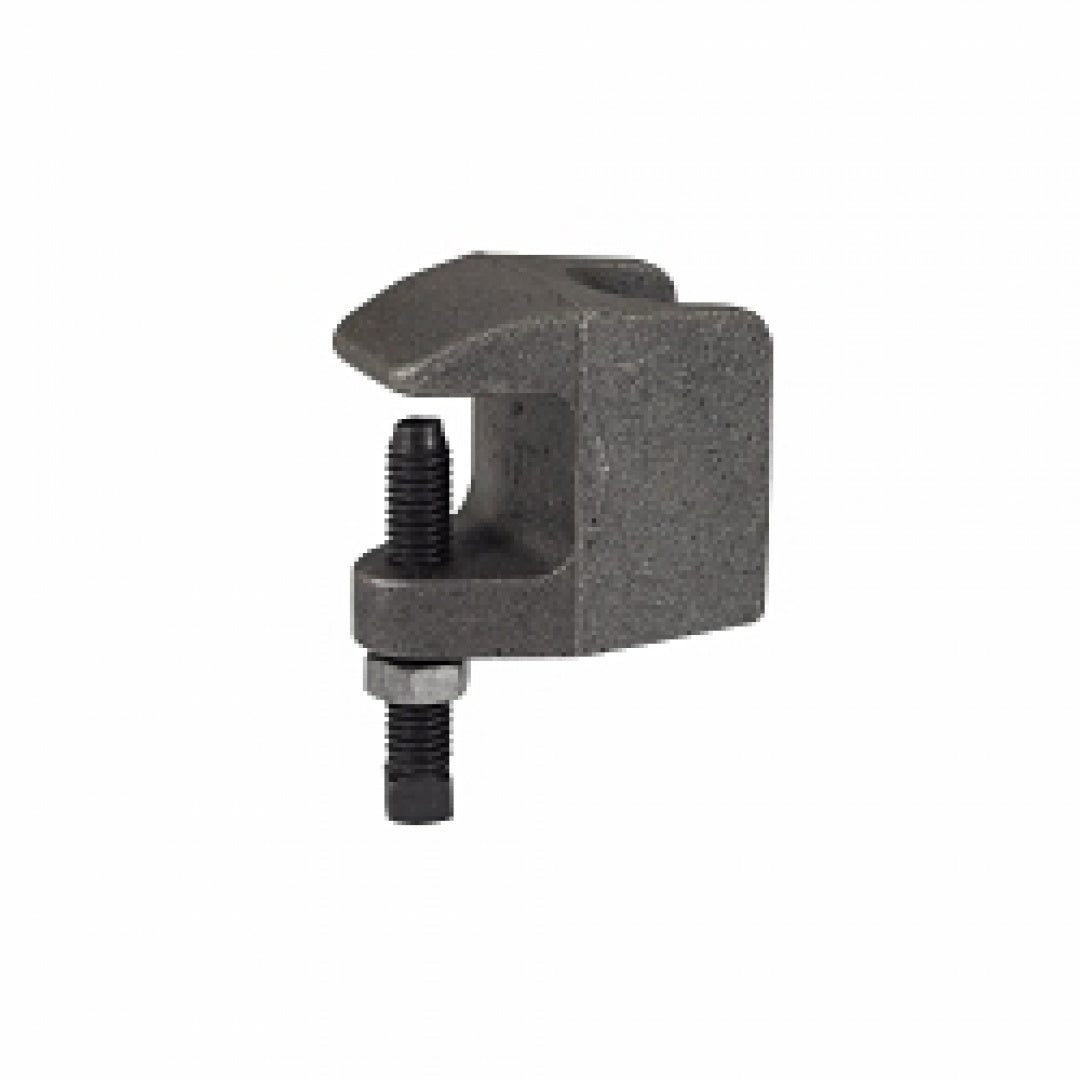

Eaton B-Line B3034-3/8pln Top Flange C-Clamp 3/8-16 Plain

Product Description

The EATON B-LINE B3034-3/8PLN is a top flange C-clamp with a 3/8"-16 rod size and plain finish. Constructed from malleable iron, this wedge C-clamp is designed for applications with a 0.25" beam width. It has a load capacity of 560 lb and includes a setscrew and locknut. It measures 1.6250"Hx2"Lx0.8750"W.

• Features a safety factor of 5
• Includes setscrew and locknut
• Wedge c-clamp design

Product Highlights

The B-Line series C-clamp is suitable for supporting various loads from beams and flanges. Its malleable iron construction ensures durability in demanding environments.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3034-3/8PLN

Technical Specifications

• Manufacturer: EATON B-LINE
• Catalog Number: B3034-3/8PLN
• UPC: 781011705398
• Product Length/Depth: 2 in
• Product Height: 1.625 in
• Product Width: 0.875 in
• Certifications: cULus Listed
• Beam/flange width: 0.25 in
• Special features: Safety factor of 5, setscrew & locknut included
• Thread/rod size: 3/8”-16
• Type: Wedge c-clamp
• Load capacity: 560 lb
• Finish: Plain
• Material: Malleable iron
• Applications: For Residential, Industrial, Commercial and Institutional
• Clamp Type: C-clamp
• Rod Size: 3/8-16
• Flange Thickness: 3/4 in
• Suitable For Use With: Pipe Hanger
• Series: B3034
