Eaton B-Line B2213ZN Multi-Grip and Offset Pipe Clamp 600 lbs

Product Description

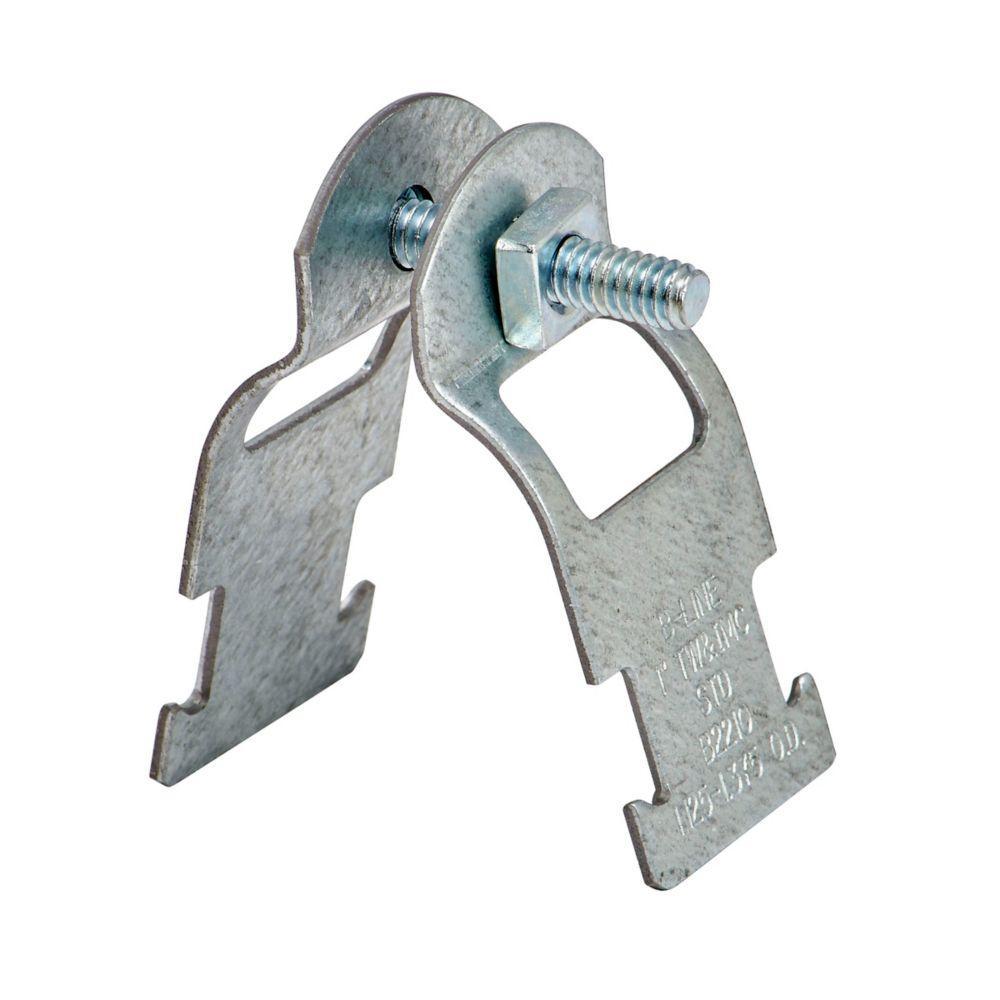

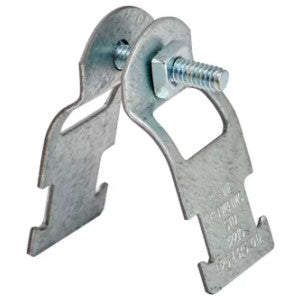

The Eaton B-Line B2213ZN multi-grip and offset pipe clamp is made of steel and measures 4" L x 1.25" W x 0.0966" H. Designed for thinwall (EMT) conduit, this pipe clamp supports up to 600 lbs. It features a combination recess hex head machine screw for secure fastening.

• Includes combination recess hex head machine screw
• Pipe clamp for thinwall (EMT)
• 600 lb vertical, 75 lb transverse/longitude load capacity

Product Highlights

The Eaton B-Line B2213ZN pipe clamp provides support without drilling or welding, and is suitable for use with thinwall EMT/IMC/Rigid conduit/pipe.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2213ZN
• Country of Origin: US - United States

Technical Specifications

• Product Name: Eaton B-Line series multi-grip and offset pipe clamp
• Catalog Number: B2213ZN
• UPC: 781011604639
• Product Length/Depth: 4 in
• Product Height: 0.0966 in
• Product Width: 1.25 in
• Product Weight: 0.26 lb
• Product Type: Multi-grip and offset pipe clamp
• Special features: Include combination recess hex head machine screw
• Type: Pipe clamp for thinwall (EMT)
• Load capacity: 600 lbs
• Material: Steel
• Brand: B-Line
• Part Number #: B2213ZN
• UNSPSC: 39121311
• ECCN: EAR99
• Conduit Type: Rigid/IMC/EMT
• Fitting Type: Conduit Clamp
• Load Rating: 600 lb.
• Max. Opening (Inches): 2.4 in.
• Rod Size: 2 in.
