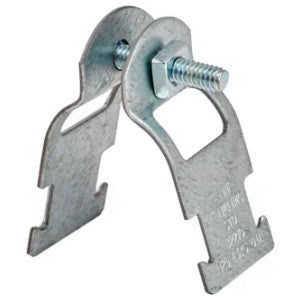

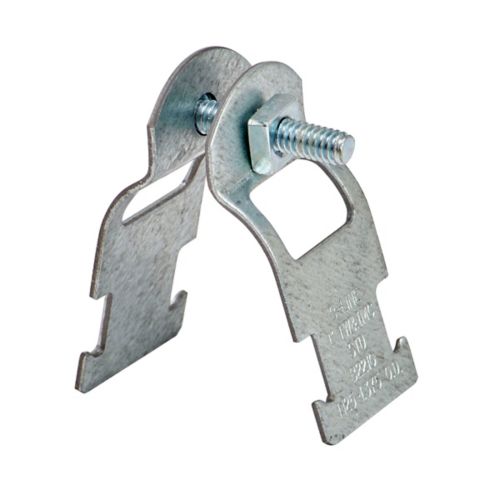

Eaton B-Line B2212ZN Multi-Grip Pipe Clamp 1-1/2 in.

Product Description

The EATON B-LINE B2212ZN is a multi-grip pipe clamp designed for thinwall, IMC and rigid conduits. It is made of steel and provides support without drilling or welding. Designed for use with B-Line channels and 4Dimension Strut Systems and Bolted Framing Applications.

• Includes combination recess hex head machine screw and square nut
• Features a safety factor of 5
• 600 lb vertical, 75 lb transverse/longitude load capacity

Product Highlights

The B2212ZN pipe clamp is suitable for thinwall EMT/IMC/Rigid Conduit/Pipe. It has a load capacity of 600 lbs.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2212ZN
• Country of Origin: US - United States

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Length/Depth: 3.375 in
• Product Height: 0.0966 in
• Product Width: 1.25 in
• Product Type: Multi-grip and offset pipe clamp
• Special features: Include combination recess hex head machine screw
• Type: Pipe clamp for thinwall (EMT)
• Load capacity: 600 lbs
• Material: Steel
• Part Number #: B2212ZN
• SKU #: 2139681
• UNSPSC: 39121311
• Application: 4Dimension Strut Systems and Bolted Framing Applications
• Includes: Combination Recess Hex Head Machine Screw and Square Nut
• ECCN: EAR99
• Conduit Type: Rigid/IMC/EMT
• Fitting Type: Conduit Clamp
• Load Rating: 600 lb.
• Max. Opening (Inches): 1.93 in.
• Rod Size: 1-1/2 in.
