Eaton B-Line B2209ZN 3/4 EMT/RGD Strut Strap

Product Description

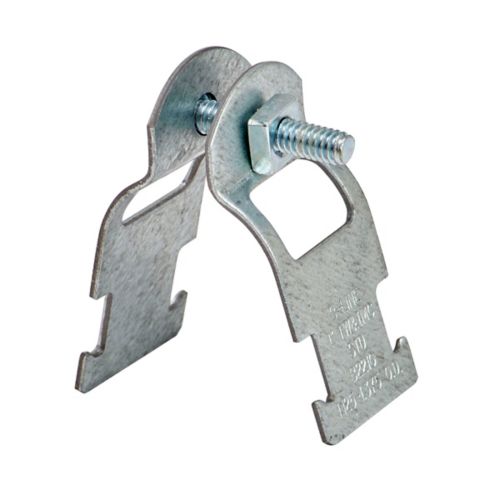

The EATON B-LINE B2209ZN is a 3/4 EMT/RGD strut strap designed for use with thinwall, IMC, and rigid conduits. It is made of steel and features a safety factor of 5. It can be used with 4Dimension strut systems or bolted framing. It has a 400 lb vertical and 50 lb transverse/longitude load capacity.

• Safety factor of 5
• 33000 psi minimum yield
• 400 lb vertical, 50 lb transverse/longitude load capacity

Product Highlights

The B2209ZN pipe clamp is suitable for thinwall EMT/IMC/Rigid Conduit/Pipe.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2209ZN

Technical Specifications

• Product Name: Eaton B-Line series multi-grip and offset pipe clamp
• Catalog Number: B2209ZN
• UPC: 781011604233
• Product Length/Depth: 2.375 in
• Product Height: 0.0677 in
• Product Width: 1.25 in
• Product Weight: 0.12 lb
• Product Type: Multi-grip and offset pipe clamp
• Type: Pipe clamp for thinwall (EMT)
• Material: Steel
• Load Capacity: 400/50 lb
• UNSPSC: 39121311

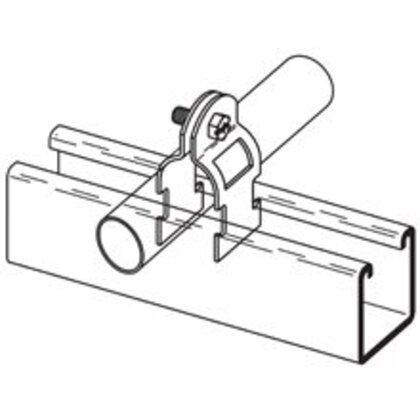

• Application: For 4Dimension strut systems/bolted framing
• Includes: Combination Recess Hex Head Machine Screw, Square Nut
• Diameter: 3/4 in
