Eaton B-Line B2208ZN 1/2 EMT/RGD Strut Strap

Product Description

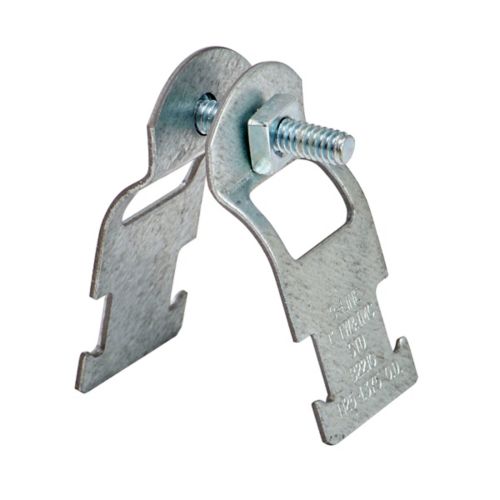

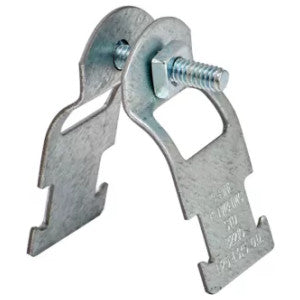

The EATON B-LINE B2208ZN is a multi-grip and offset pipe clamp designed for thinwall, IMC, and rigid conduits. It provides support without drilling or welding and is suitable for use with B-Line channels. This two-piece clamp is constructed from steel with a zinc finish and features a safety factor of 5.

• Safety factor of 5
• 400 lb vertical, 50 lb transverse/longitude load capacity
• Includes combination recess hex head machine screw and square nut

Product Highlights

The B2208ZN pipe clamp ensures secure and reliable support for various conduit types in strut systems.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2208ZN
• Country of Origin: US - United States

Technical Specifications

• Catalog Number: B2208ZN
• UPC: 781011604134
• Product Length/Depth: 2.156 in
• Product Height: 0.0635 in
• Product Width: 1.25 in
• Product Weight: 0.11 lb
• Product Type: Multi-grip and offset pipe clamp
• Type: Pipe Clamp for Thinwall (EMT)
• Material: Steel
• Thickness: 16 ga
• UNSPSC: 39121311
• Application: For 4Dimension strut systems/bolted framing
• Includes: Combination Recess Hex Head Machine Screw, Square Nut
• Size: 1/2 In
• Trade Size: 1/2 Inch
• Construction: Two Piece
• Finish: Zinc
• ECCN: EAR99
• Conduit Type: Rigid/IMC/EMT
• Fitting Type: Conduit Clamp
• Load Rating: 400 lb.
• Max. Opening (Inches): 0.88 in.
• Rod Size: 1/2 in.
• Brand: Eaton B-Line
• Country of Origin: China
• Load Capacity: 400/50 lb
