Eaton B-Line B2020PAZN Pipe and Conduit Clamp 6 in

Product Description

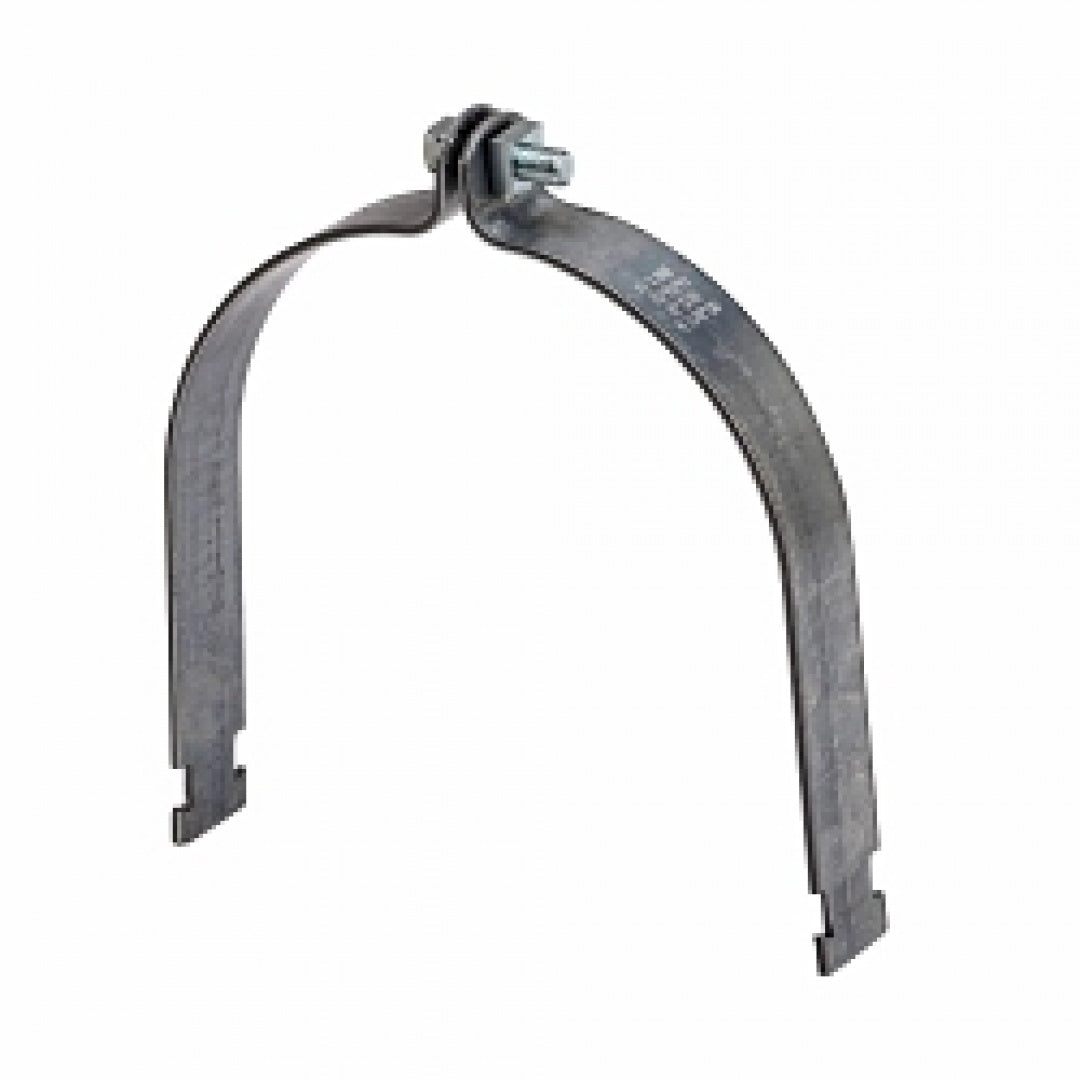

The EATON B-LINE B2020PAZN is a 2-piece pre-assembled pipe and conduit clamp designed for 6 in conduits. Constructed from low carbon steel with a zinc plated finish, it features a combination recess hex head machine screw and square nut. It is designed for channel mounting and can support loads up to 1000 lbs.

• Pre-Assembled
• Durable Construction
• Suitable for 6 in Conduit

Product Highlights

Pre-assembled pipe and conduit clamp made from low carbon steel with zinc plating. Ideal for channel mounting.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2020PAZN

Technical Specifications

• Application: Pipe and Conduit Clamp
• Size: 6 in Conduit, 6-5/8 in OD
• Material: Low Carbon Steel
• Type: 2-Piece Pre-Assembled
• Manufacturer: EATON
• Product Length/Depth: 9.875 in
• Product Height: 0.12 in
• Product Width: 1.25 in
• Product Type: Pre-assembled O.D. pipe and conduit clamp
• Special features: Pre-assembled combination recess square nut
• Load rating/capacity Value: 1000 lbs
• Outside Diameter: 6-5/8 in
• Series: B2000
• Mounting Type: Channel
• Finish: Zinc Plated
• Conduit Size: 6 in
