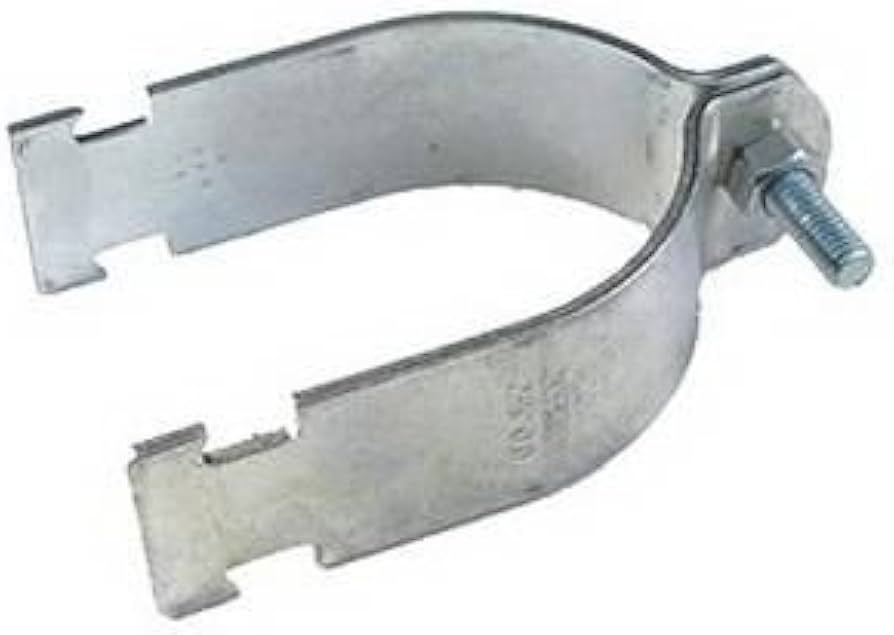

EATON B-LINE B2005PA-1-1/2 EMT Pipe & Conduit Strut Clamp

Product Description

The EATON B-LINE B2005PA-1-1/2 is a 2-piece clamp intended for EMT conduit applications. This product is designed for use with thin wall EMT and rigid conduit. The assembly is pre-assembled, which enhances the ease of installation. It features a combination recess hex head machine screw and a square nut for simple setup.

• Pre-assembled for easy installation.
• Constructed from 12-gauge low-carbon steel with a zinc finish.
• Load rating up to 800 pounds vertically.

Product Highlights

This clamp offers reliable support without the need for drilling or welding, making it efficient for installations with compatible channels.

Product Information

Standard Information

• Material: 12 Gauge Low Carbon Steel
• Finish: Zinc Electroplated

Technical Specifications

• Trade Size: 1-1/2 Inch
• Load Rating: 800 Lb (Vertical), 125 Lb (Longitudinal/Transverse)
• Safety Factor: 5
• Suitable For Use With: PVC Coated Rigid Conduit
• Type: 2-Piece
• Mounting Type: Channel
• Thickness: 12 ga
• Product Length: 3.573 inches
• Product Height: 0.0994 inches
• Product Width: 1.25 inches
• Product Weight: 0.28 lb
