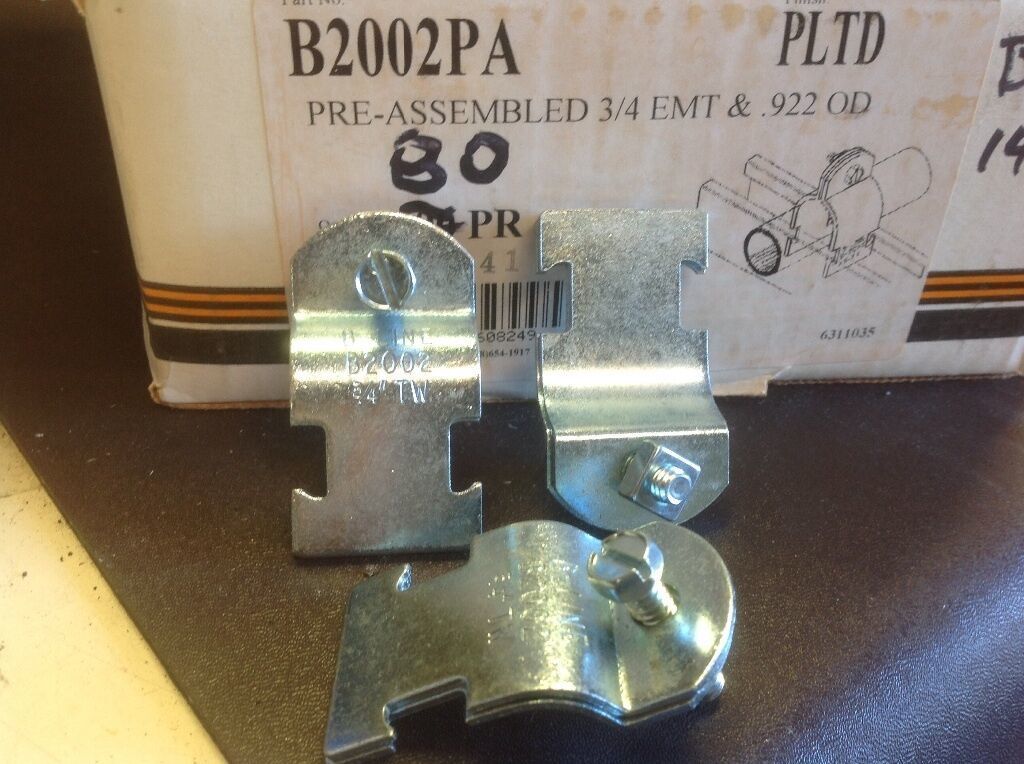

EATON B-LINE B2002PA-3/4 3/4 EMT Conduit Clamp

Product Description

The EATON B-LINE B2002PA-3/4 is a three-fourth inch EMT conduit clamp made from zinc-plated steel. This two-piece, pre-assembled clamp is designed for reliable attachment of conduit, flexible conduit, or cables to standard strut channels. Made from ASTM A1011 16-gauge low carbon steel, it ensures durability and security in various applications.

• Pre-assembled for quick installation
• Constructed with zinc-plated steel for strength
• Designed for three-fourth inch EMT conduit

Product Highlights

This clamp offers an effective solution for mounting conduit. It includes a combination recess hex head machine screw and square nut, facilitating an easy installation process.

Product Information

Standard Information

• Material: ASTM A1011 16 Gauge Low Carbon Steel
• Finish: Zinc Plated

Technical Specifications

• Type: EMT Conduit to Strut, Pre-Assembled
• Size: Three-fourths inch
• Load Rating: 400 lb (Vertical), 50 lb (Longitudinal/Transverse)
• Thickness: 16 ga
• Suitable For Use With: PVC Coated Rigid Conduit/Clamp
• Mounting Type: Channel
