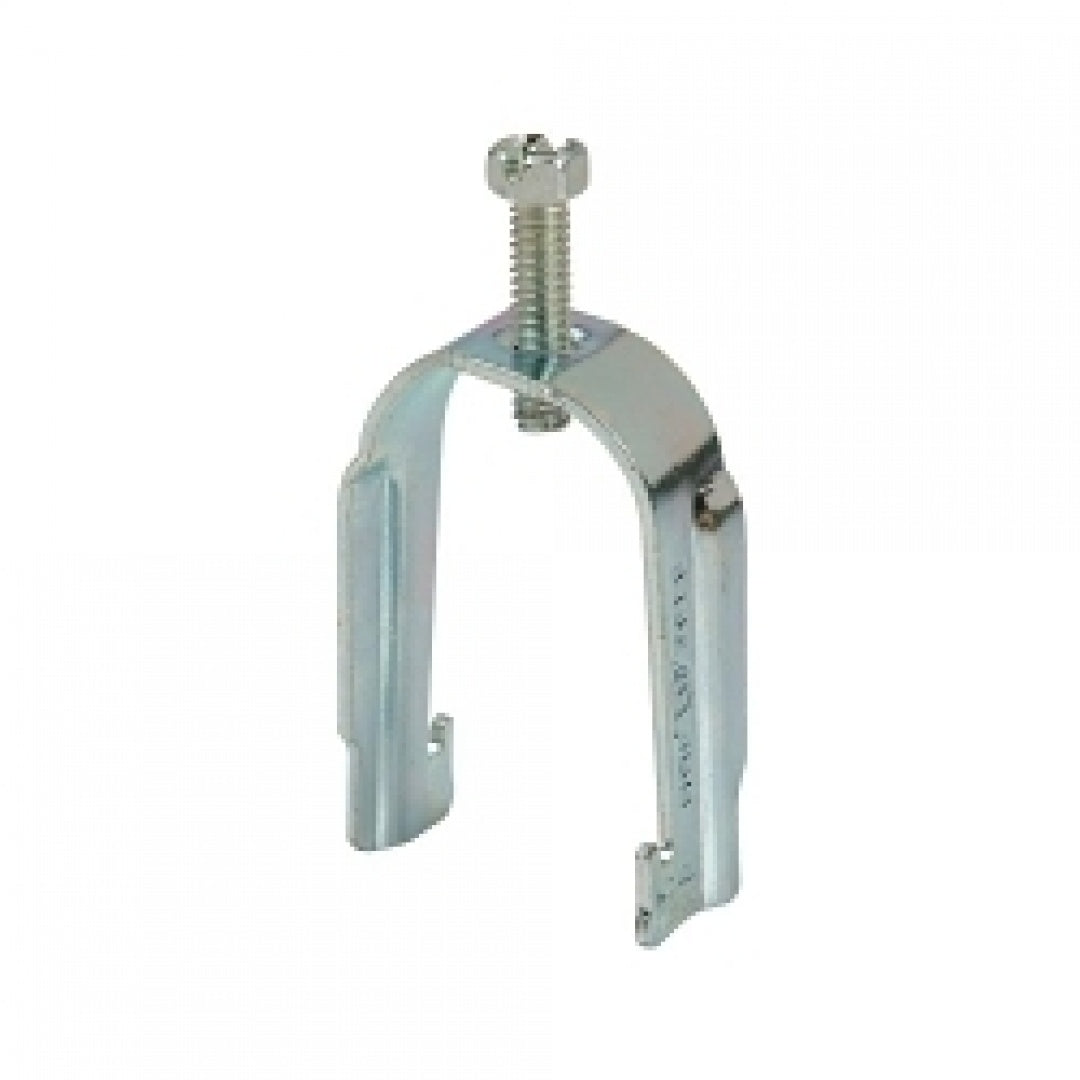

Eaton B-Line B1524S Conduit Strut Clamp 1 1/2-In. EMT, 1 1/4-In. Rigid, With Saddle

Product Description

The EATON B-LINE B1524S is a conduit strut clamp designed for 1 1/2-in. EMT and 1 1/4-in. rigid conduits, and includes a saddle. It is designed for use with 1 5/8 in strut channels, conduit, and MC/AC cables. The clamp is made of steel with a pre-galvanized finish and is UL Listed.

• For Use With 1 5/8 in Strut Channels, Conduit, MC/AC Cables
• Includes Bolt, Saddle
• UL Listed

Product Highlights

This conduit strut clamp provides a secure and reliable mounting solution for conduit and cable installations.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B1524S
• Country of Origin: United States

Technical Specifications

• Manufacturer: EATON B-LINE
• Item [Specifications]: Conduit Strut Clamp
• Size [Specifications]: Conduit size EMT: 1.5 inch, rigid: 1.25 inch
• Type [Specifications]: Conduit strut clamps
• Depth [Specifications]: 1 1/2 in
• Width [Specifications]: 2"
• Finish [Specifications]: Pre-Galvanized
• Length [Specifications]: 3"
• Series [Specifications]: B-Line
• Includes [Specifications]: Bolt, Saddle
• Material [Specifications]: Steel
• Standards [Specifications]: UL Listed
• Thickness [Specifications]: 1/10 in
• Cable Range [Specifications]: 1.375 to 1.660 in
• Thread Size [Specifications]: 1/4"-20
• Conduit Size [Specifications]: 1 1/2 in
• Conduit Type [Specifications]: EMT, Flexible, IMC, Rigid
• For Use With [Specifications]: 1-5/8" Strut Channels, Conduit, MC/AC Cables
• Sub-Category [Specifications]: Clamps
• Load Capacity [Specifications]: 400 lb
• Overall Depth [Specifications]: 1 1/2 in
• Overall Width [Specifications]: 2 in
• Product Width [Specifications]: 1 in
• Certifications [Specifications]: UL/CUL listed
• Overall Length [Specifications]: 3 in
• Product Height [Specifications]: 1 in
• Strut Trade Size [Specifications]: 1 1/2 in
• Cable diameter - max [Specifications]: 1.66 in
• Cable diameter - min [Specifications]: 1.375 in
• Nominal Conduit/Pipe [Specifications]: 1-1/2"
• Product Length/Depth [Specifications]: 1 in
• For Strut Channel Size [Specifications]: 1 5/8 in
• Length (Straight Wireway) [Specifications]: 3 in
• Product Name: Eaton B-Line series conduit strut clamp
• Catalog Number: B1524S
• UPC: 781011631826
• Product Weight: 0.165 lb
• Product Type: Conduit strut clamp
• Product Category: Conduit and cable
• Outside Diameter: 1.375 to 1.66 in
• Mounting Type: Channel
• Suitable For Use With: MC/AC Cable
• Conduit Size: 1-1/2 in
• Country Of Origin: US
• Thickness: 1/10 in
