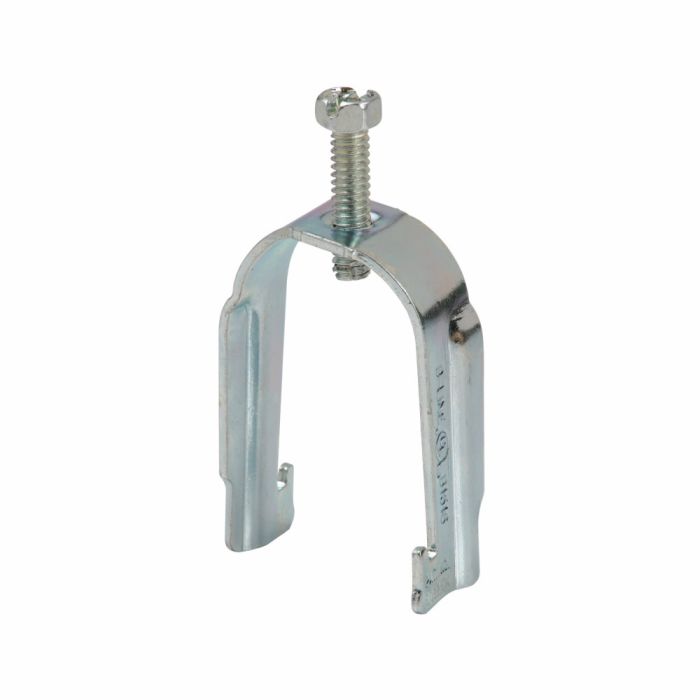

Eaton B-Line B1520S Conduit Clamp 1-1/4 In EMT

Product Description

The EATON B-LINE B1520S is a strut mounting bracket designed for use with 1 5/8 in strut channels, conduits, and MC/AC cables. It features a galvanized finish and includes a bolt and saddle. This clamp supports a load capacity of 300 lb and is UL Listed.

• For Use With 1 5/8 in Strut Channels, Conduit, MC/AC Cables
• Standards UL Listed
• Attaches conduit, flexible conduit or cables to standard strut channels

Product Highlights

This conduit strut clamp is suitable for use with EMT, flexible, IMC, and rigid conduits. Its one-piece design allows for easy installation.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B1520S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Conduit Strut Clamp
• Size [Specifications]: Conduit size EMT: 1.25 inch, rigid: 1 inch
• Type [Specifications]: Conduit strut clamps
• Depth [Specifications]: 1 1/2 in
• Width [Specifications]: 1 3/4"
• Finish [Specifications]: Pre-Galvanized
• Length [Specifications]: 2-1/2"
• Series [Specifications]: B-Line
• Includes [Specifications]: Bolt, Saddle
• Material [Specifications]: Steel
• Standards [Specifications]: UL Listed
• Thickness [Specifications]: 1/16 in
• Cable Range [Specifications]: 1.125 to 1.315 in
• Thread Size [Specifications]: 1/4"-20
• Conduit Size [Specifications]: 1 1/4 in
• Conduit Type [Specifications]: EMT, Flexible, IMC, Rigid
• For Use With [Specifications]: 1-5/8" Strut Channels, Conduit, MC/AC Cables
• Sub-Category [Specifications]: Clamps
• Load Capacity [Specifications]: 300 lb
• Overall Depth [Specifications]: 1 1/2 in
• Overall Width [Specifications]: 1 3/4 in
• Certifications [Specifications]: UL/CUL listed
• Overall Length [Specifications]: 2 1/2 in
• Cable diameter - max [Specifications]: 1.315 in
• Cable diameter - min [Specifications]: 1.125 in
• Nominal Conduit/Pipe [Specifications]: 1-1/4"
• For Strut Channel Size [Specifications]: 1 5/8 in
• Length (Straight Wireway) [Specifications]: 2 1/2 in
• Product Name: Eaton B-Line series conduit strut clamp
• Catalog Number: B1520S
• UPC: 781011631772
• Product Weight: 0.146 lb
• Product Type: Conduit strut clamp
• Product Category: Conduit and cable
• Mounting Type: Channel
• Outside Diameter: 1.125 to 1.315 in
• Suitable For Use With: MC/AC Cable and EMT/Rigid Conduit
• ECCN: EAR99
• UNSPSC: 39121311
• Application: FASTENERS,ONE PIECE PIPE CLAMP,Rigid/EMT/Flexible Conduit
• Material: Zinc Plated Steel
• Fitting Type: Conduit Clamp
• Load Rating: 300 lb.
• Max. Opening (Inches): 1.315 in.
• Rod Size: 1 in. to 1-1/4 in.
