Eaton B-Line 864RTSC Type 3/3R Junction Box (8 x 6 x 4)

Product Description

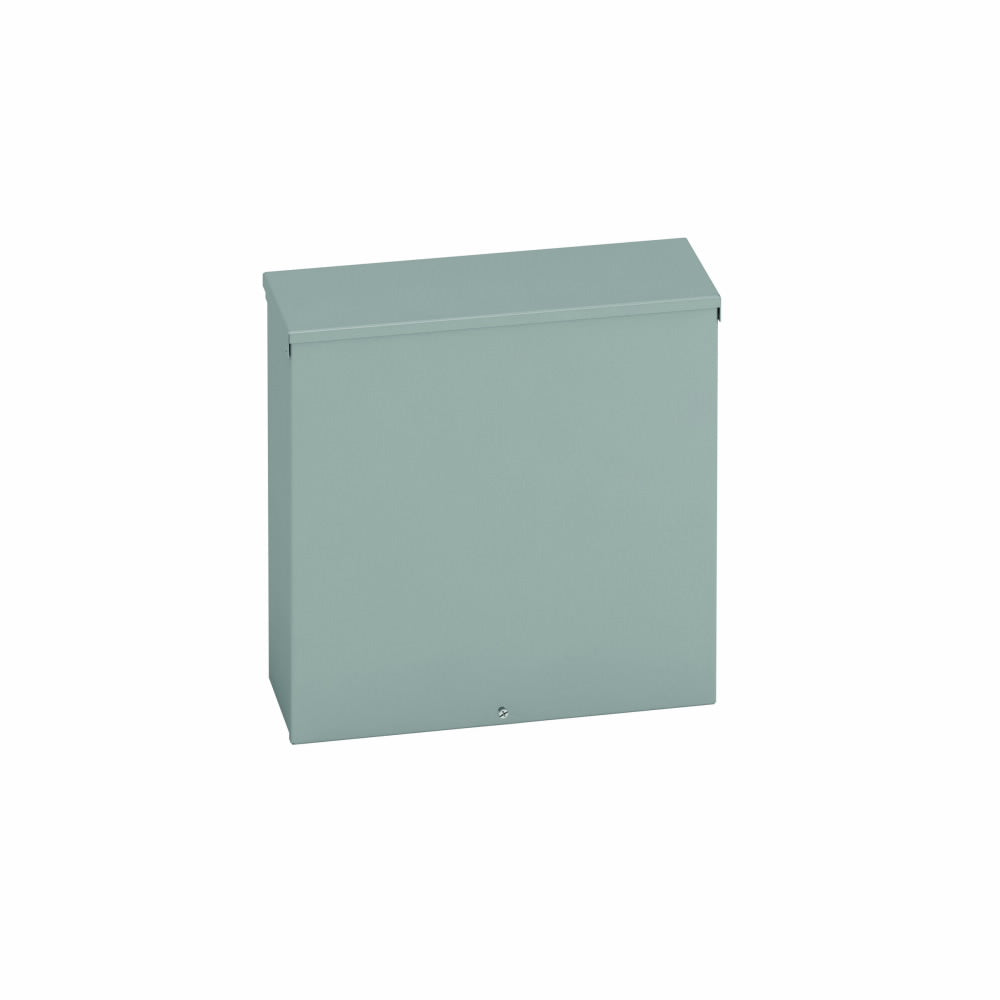

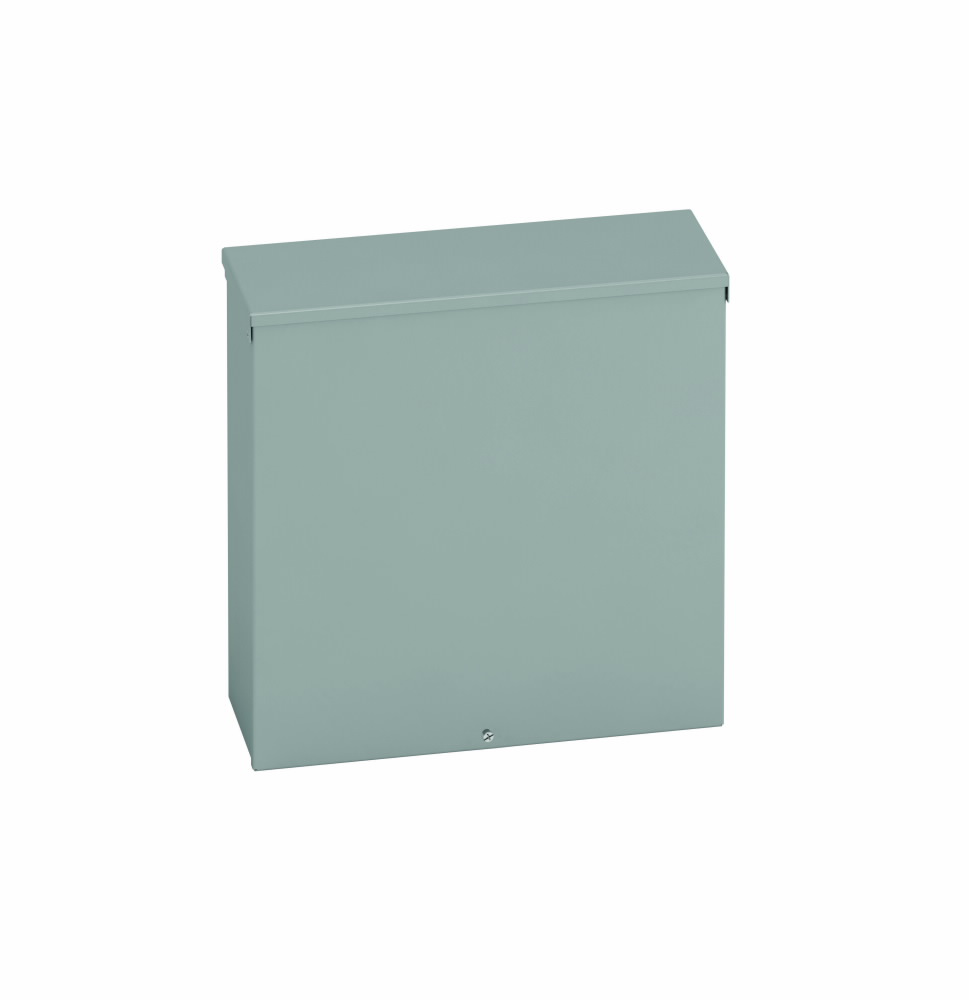

The Eaton B-Line 864RTSC is a Type 3/3R junction box. Measuring 8" in height, 4" in length, and 6" in width, this carbon steel enclosure features a screw cover and RTSC enclosure. It is surface mounted with a small single door and embossed thru holes.

• Rain hood
• Plated screws
• Embossed thru holes

Product Highlights

Provides reliable environmental protection for commercial wiring, junction, pull, and termination applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 864RTSC
• Country of Origin: US

Technical Specifications

• SKU: 864 RTSC
• Product Name: Eaton B-Line series Type 3/3R junction boxes
• Catalog Number: 864 RTSC
• UPC: 782051341003
• Product Length/Depth: 4 in
• Product Height: 8 in
• Product Width: 6 in
• Product Weight: 3.8 lb
• Certifications: UL 50 CSA C22.2. NEMA
• Product Type: Type 3/3R junction boxes
• Material: Carbon steel
• Wall thickness: 16 gauge
• Finish color: Painted
• Color: ANSI 61 gray
• Style: Small single door
• Model: RTSC enclosure
• Cover type: Screw
• Mounting method: Surface
• Mounting hole details: Embossed thru holes
• Closure type: Flanged cover
• Special features: Rain hood, plated screws
• Bottom knockouts: 3
• NEMA Rating: 3R
• Country of origin: US
• ECCN: EAR99
• UNSPSC: 39121324
• Applications: Wiring Boxes, Junction and Pull Boxes
• Cable Entry: Knockouts
• Mounting Type: Surface
• Size: 6.00 In Width X 4.00 In Depth X 8.00 In Height
• Standard: CSA C22.2,IEC 60529,UL 50
• Type: IP32,NEMA 3R,Screw Cover
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• Finish: GRAY
• Height: 8 Inch
• Length: 4 Inch
