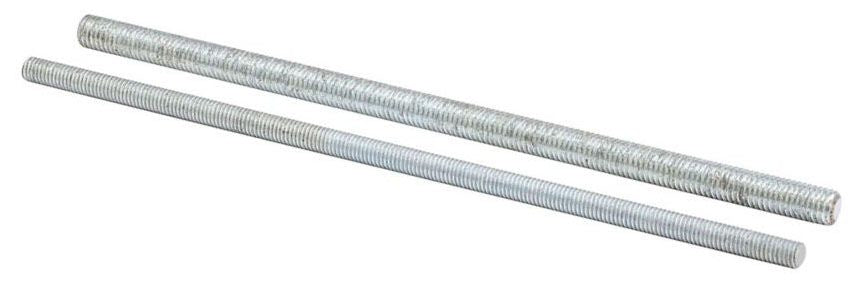

Eaton B-line 78101169032 All Threaded Rod 3/8-16 Unc 120 in

Product Description

The EATON B-LINE 78101169032 is a full-length all threaded rod designed for use in strut channel support systems, pipe hangers, and mechanical equipment suspension. Manufactured from ASTM A108/A36 steel with a yellow zinc chromate finish, this 120-inch rod carries a recommended load rating of 730 pounds. The 3/8-16 UNC thread runs the full length of the rod, allowing field cutting to any required length. It is installed by licensed electricians, HVAC mechanics, plumbers, and pipefitters in commercial and industrial construction and maintenance work.

This threaded rod is suited for suspended ceiling grids, pipe and conduit hanger assemblies, mechanical equipment supports, and seismic bracing systems. At 120 inches, it accommodates deep-ceiling or multi-tier hanger drops without splicing. The yellow zinc chromate finish provides moderate corrosion resistance appropriate for dry or lightly humid indoor environments. Contractors working on new construction or retrofit projects typically stock this length for flexible field use.

Key Features

• Full 120-inch length with 3/8-16 UNC thread for versatile field cutting
• 730-pound recommended load rating per SAE J429 applicable standard
• ASTM A108/A36 steel with press-formed, machined, and hardened process
• Yellow zinc chromate finish for corrosion resistance in indoor applications
• Straight rod type compatible with standard 3/8-inch strut hardware and hanger components
• Made in the USA

Compatibility

Designed as an OEM-style replacement or new-installation component for 3/8-16 UNC threaded rod applications in strut channel and pipe hanger support systems. Compatible with standard 3/8-inch nuts, couplings, rod hangers, and strut fittings that accept UNC thread series hardware.

Installation Notes

Installation should be performed by qualified tradespeople in accordance with applicable local mechanical and electrical codes, including NEC and SMACNA hanger spacing guidelines. Shut down and de-energize any electrical systems in the work area before overhead installation. Use a thread-cutting die or chop saw with appropriate blade when field-cutting to length, and deburr cut ends before threading hardware. Do not exceed the 730-pound recommended load rating per rod without engineering review.

Technical Specifications

• Load Rating: 730 pounds (recommended)
• Overall Length: 120 inches
• Nominal Diameter: 0.375 inches
• Thread Series: UNC
• Threads Per Inch (TPI): 16
• Rod Type: Straight
• Material: Steel
• Material Specification: ASTM A108/A36
• Process: Press Formed, Machined, Hardened
• Finish: Yellow Zinc Chromate
• Applicable Standard: SAE J429
• Country of Origin: USA

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 78101169032
