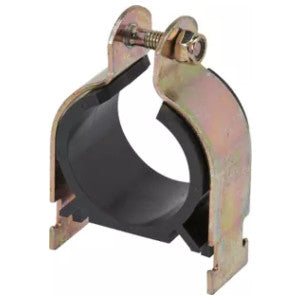

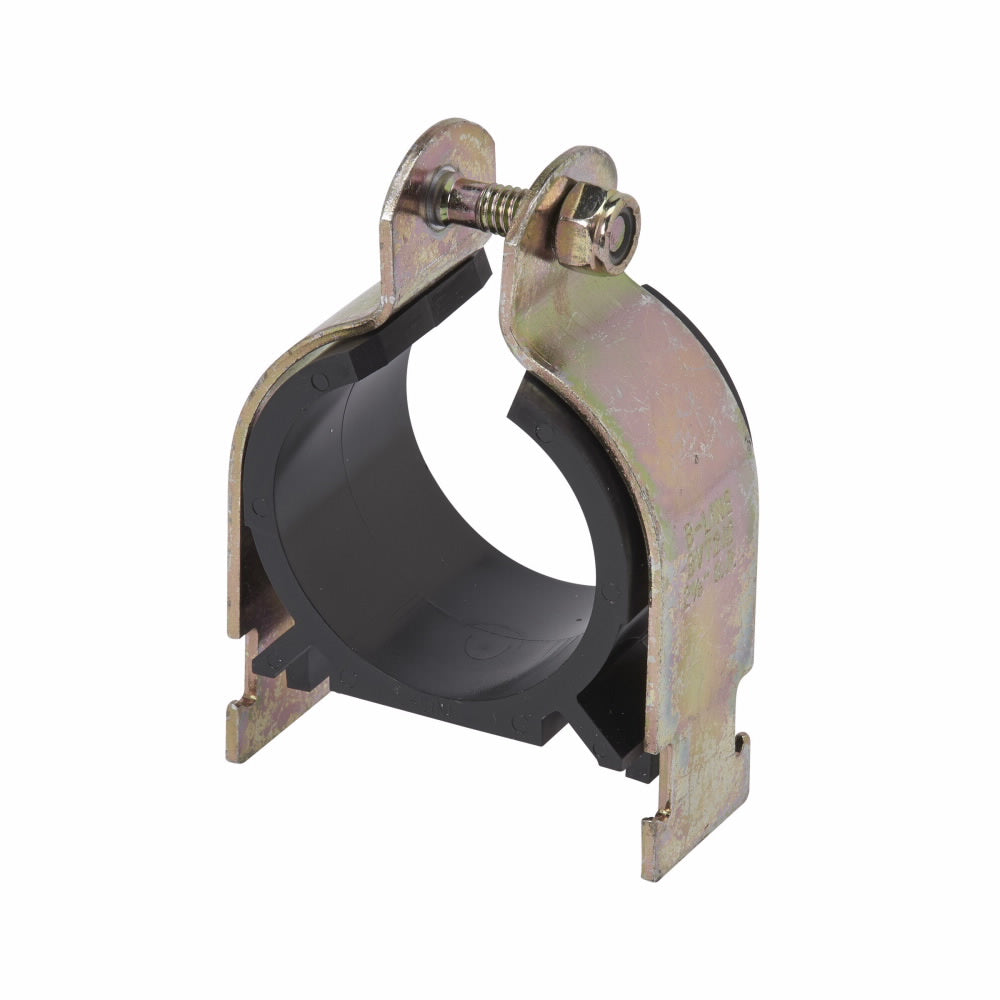

Eaton B-Line 78101158025 Strut Clamp, Pipe Clamp, BVT Series, 1/2 in, 5/8 in

Product Description

The EATON B-LINE 78101158025 is a strut clamp and pipe clamp from the BVT Series, designed for 4 dimension & traditional strut applications. Constructed from steel, this 2-piece cushioned pipe clamp is suitable for securing pipes or rigid tubing. It features a load rating of 400 lb. (Design Load 1), 50 lb. (Design Load 2), 50 lb. (Design Load 3).

• Includes Cushion, Clamp, Screw and Nut
• Dielectric strength of 400 V/mil
• Dampens vibration and noise
• Eliminates galvanic metal to metal contact
• Resists most industrial oils and solvents
• Reduces thermal loss and gain

Product Highlights

This steel pipe clamp is designed to dampen vibration and noise, while also eliminating metal-to-metal contact. Suitable for various strut applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 78101158025
• Country of Origin: US - United States

Technical Specifications

• Series: BVT Series
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Material: Low Carbon Steel
• Type: Pipe Clamp
• Fitting Type: Pipe Clamp
• Load Rating: 400 lb. (Design Load 1), 50 lb. (Design Load 2), 50 lb. (Design Load 3)
• Length: 0.86 in.
• OD Max: 5/8 in. (15.9mm)
• Country of Origin: United States - Subject to change
• Rigid Conduit Trade Size: 1/2 in. (15mm)
• OD Min: 5/8 in. (15.9mm)
• Load: 400 lb. Max
• Construction: 2-Piece Cushioned
• Finish: Electro-Plated Zinc
• Alternate Catalog Number: 78101158025
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: BVT062YZN
• EU RoHS Indicator: C
• Height: 1.62 in
• Height [Metric]: 4.1148 cm
• Length [Metric]: 2.1844 cm
• Mounting: Channel
• Mounting Type: Channel
• Returnable: Y
• Size: 5/8 In (OD), 1/2 In (Copper Tube)
• Standards: ARRA CompliantBuy American Act CompliantRoHS Compliant
• Sub Brand: B-Line series
• Temperature Rating: -40 to 300 °F
• UNSPSC: 39121311
• UPC 11: 78101158025
• UPC 12: 78101158025
• Width: 1.25 in
• Width [Metric]: 3.1750 cm
• Stock Status: NONSTOCK
• Brand: B-Line
• Manufacturer: Eaton
• Conduit Size: 1/2 in
• Load Capacity: 400/50 lb
• Outside Diameter: 5/8 in
