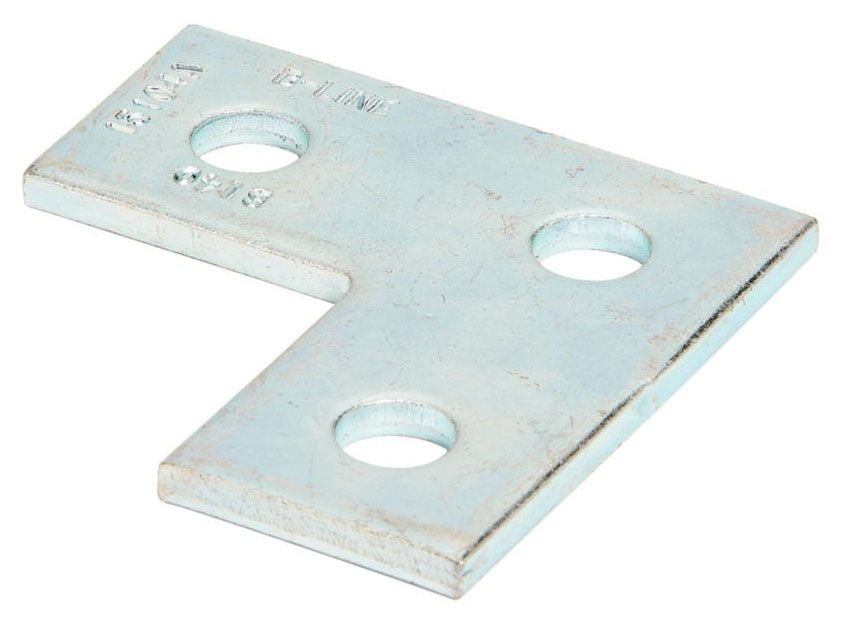

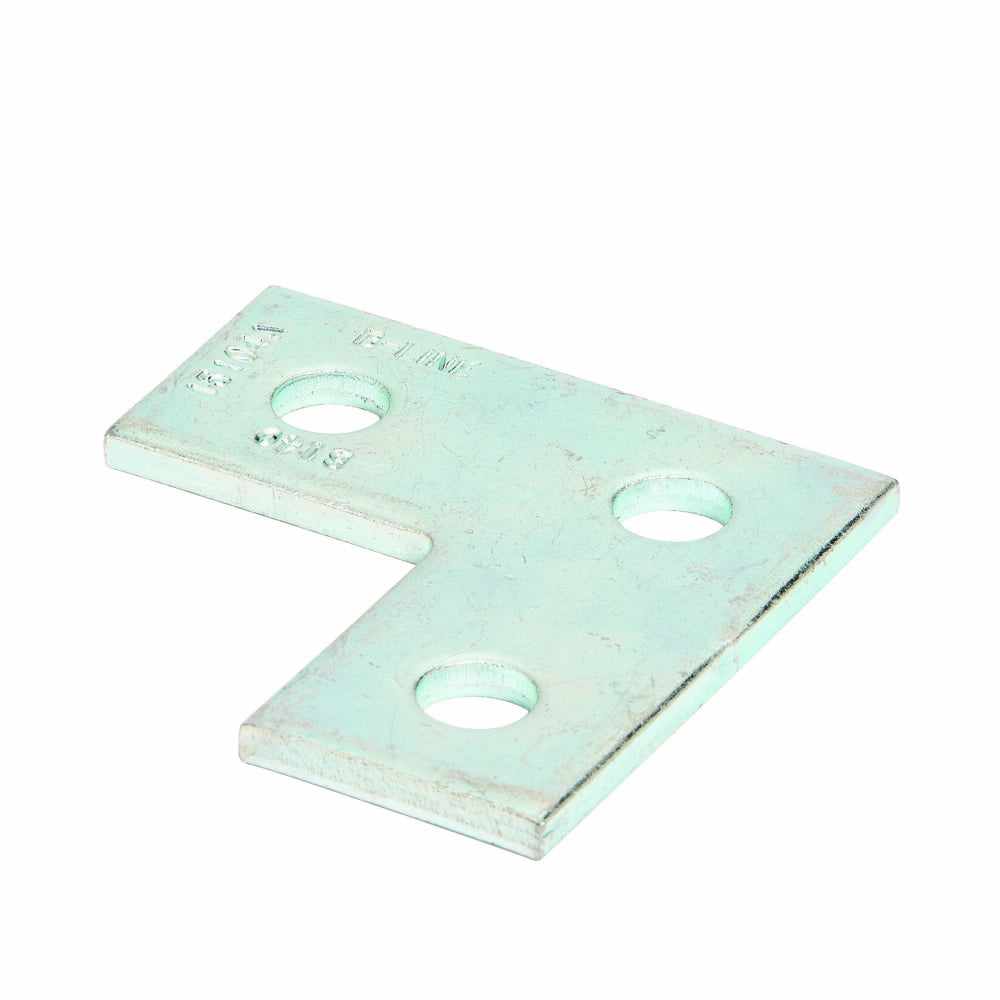

Eaton B-Line 78101150432 AS718G 3-Hole Corner Plate (3.5 x 3.5 in)

Product Description

The Eaton B-Line 78101150432 is an AS718G three-hole corner plate designed for channel and strut connections, providing a compact flat plate for corner reinforcement. The plate measures approximately 3.5 x 3.5 x 0.3 and includes three mounting holes for fasteners. Constructed from steel with a protective finish, it is intended for use with B-Line strut fittings and is compatible with 1-5/8 inch channel.

• Compact dimensions: 3.5 in length x 3.5 in width x 0.3 in thickness; recorded weight 0.58 (unit not specified).
• Three 9/16 in diameter mounting holes; hole spacing from end 13/16 in and center spacing 1-7/8 in.
• Steel construction (ASTM A1018 referenced in sources) with protective Dura Green/epoxy finish; fits 1-5/8 in channel width.

Product Highlights

Flat three-hole steel corner plate for strut channel connections; three 9/16 in mounting holes; 3.5 x 3.5 x 0.3 in footprint.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 78101150432
• Country of Origin: United States

Technical Specifications

• Brand: EATON B-LINE
• Manufacturer Part Number: 78101150432
• Alternate Part Number: B140GRN
• Title: AS718G 3-HOLE CORNER PLATE
• Material: Steel (ASTM A1018 referenced)
• Process: Hot rolled, pickled and oiled (per sources)
• Finish: Dura Green / green epoxy (protective finish)
• Number of Holes: 3
• Hole Diameter: 9/16 Inch
• Hole Spacing From End: 13/16 Inch
• Hole Spacing On Center: 1-7/8 Inch
• Length: 3.5 Inch
• Width: 3.5 Inch
• Thickness: 0.3 (unit not specified) � unit likely inches but should be confirmed
• Channel Width Compatibility: 1-5/8 Inch
• Weight: 0.58 (unit not specified) � reported weight; see weight validation
• Country of Origin: United States (listed in sources)
• Type: Flat three-hole corner plate
• Catalog Description: Flat three-hole corner plate for B-Line series strut channel
