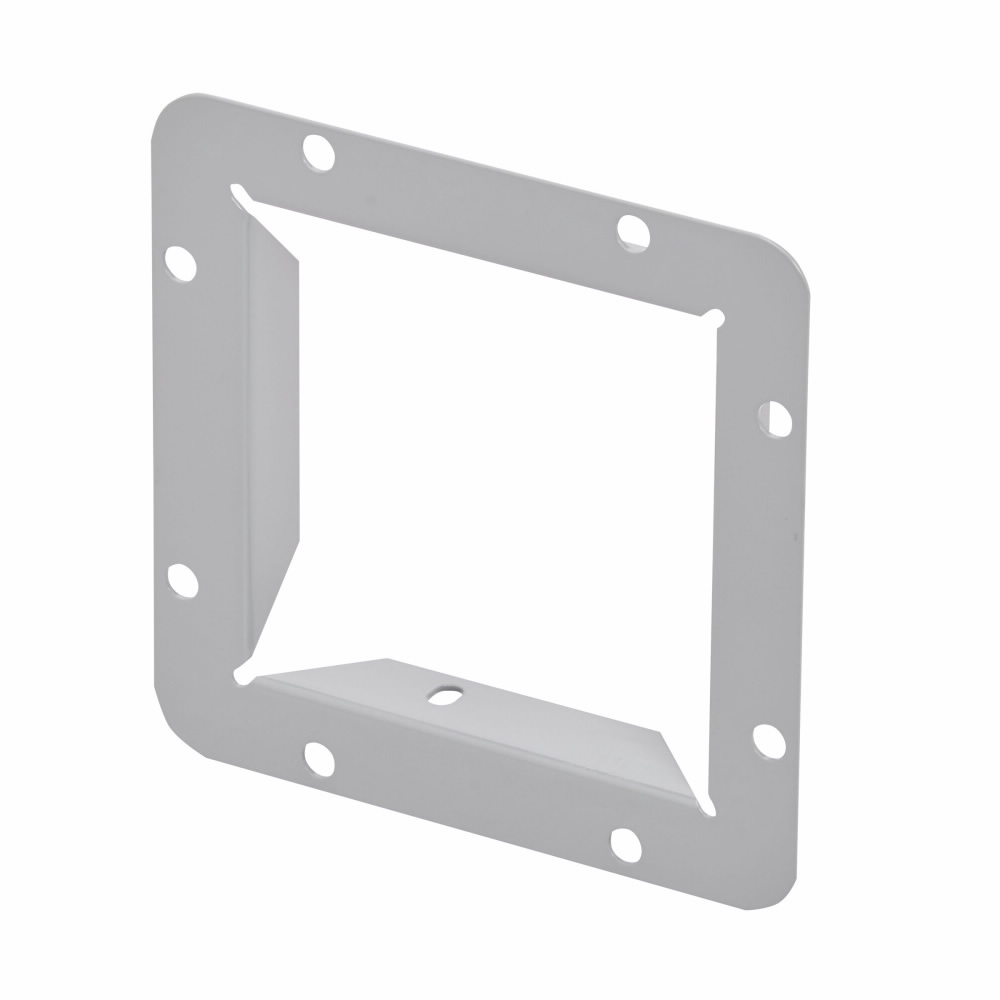

Eaton B-Line 44GF Wireway End Flange 4 inches X 4 inches

Product Description

The Eaton B-Line 44GF is a wireway end flange with NEMA 1 rating. Constructed of steel with an ANSI 61 gray painted finish, it measures 4" x 4". It is designed for secure connection of wireway or fitting to an adjoining enclosure or wall.

• NEMA 1 rated
• Constructed of steel
• Features ANSI 61 gray painted finish

Product Highlights

The Eaton B-Line wireway end flange allows for a secure connection of wireway or fitting to an adjoining enclosure or wall.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 44GF
• Country of Origin: US - United States

Technical Specifications

• Product Name: Eaton B-Line series wireway end flange
• Catalog Number: 44 GF
• UPC: 782051109429
• Product Length/Depth: 5.5 in
• Product Height: 5.5 in
• Product Width: 5.5 in
• Product Weight: 0.438 lb
• Certifications: UL Listed
• Product Type: Wireway end flange
• Material: Steel
• Finish color: ANSI 61 gray painted
• Type: Wireway End Flange
• NEMA Rating: 1
• Color: Gray
• Color Family: Gray
• Country of Origin: US - United States
• UNSPSC: 39131711
• Applications: Control and Power Cable, Cable and Wire Junction, Distribution and Termination
• Cover Type: Screw
• Enclosure: IP30,NEMA 1
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 782051109429
• Finish: Gray
• Product UPC: 78205110942
• IP/NEMA Rating: NEMA 1
