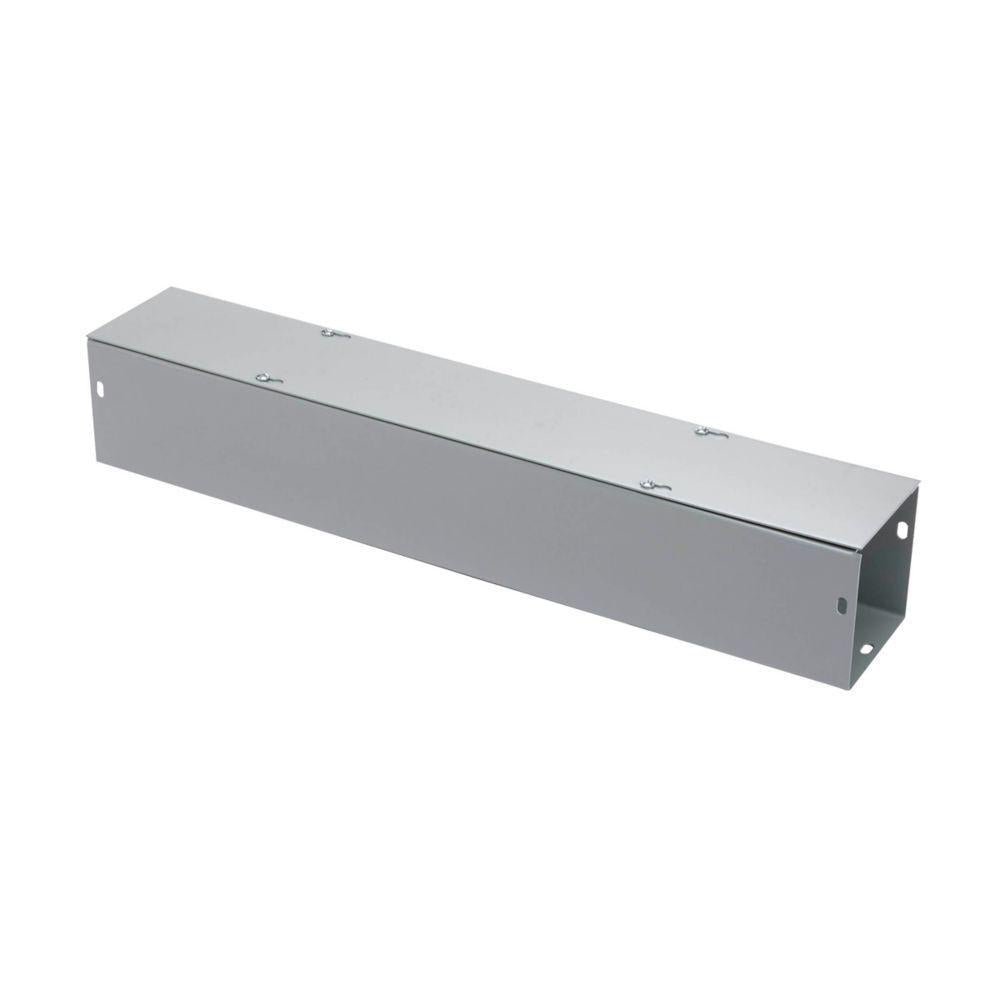

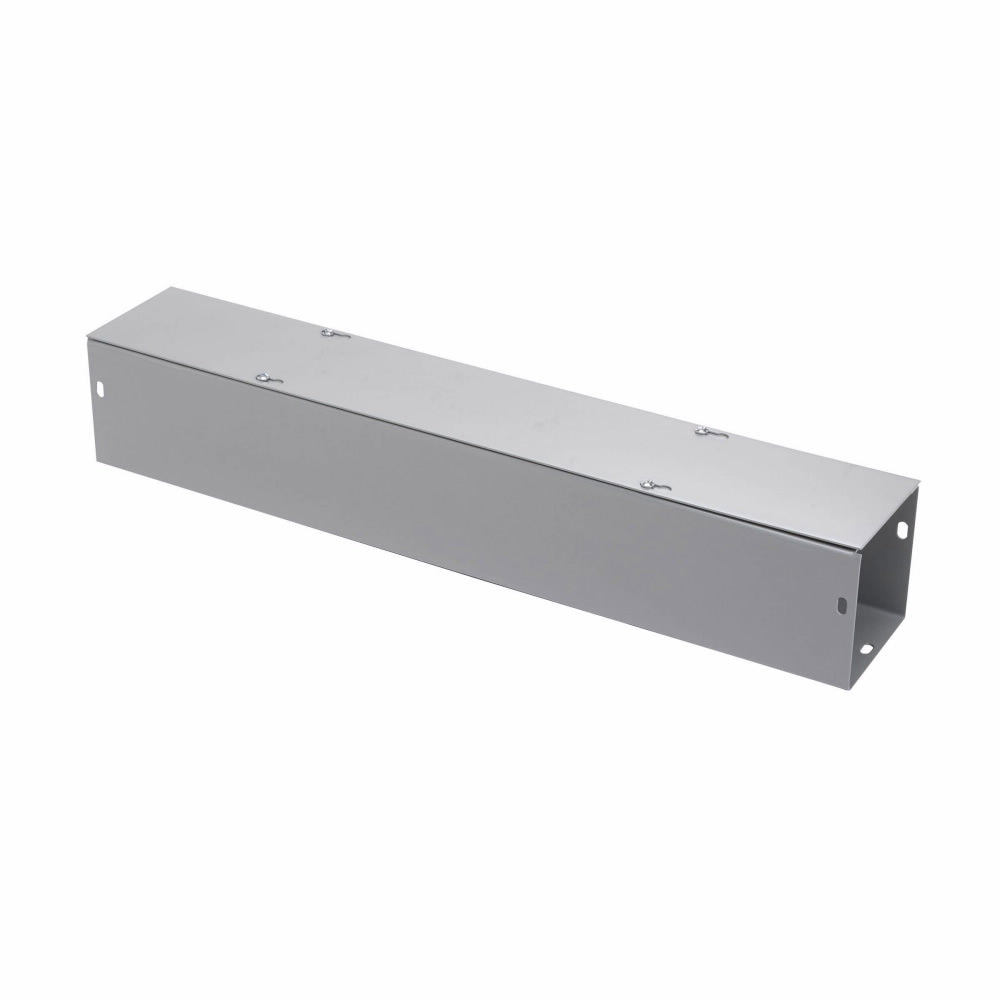

Eaton B-Line 4460GNK Wireway 4 inches x 60 inches x 4 inches

Product Description

The EATON B-LINE 4460GNK is a wireway designed for control and power cable, cable and wire junction, distribution and termination applications. The cover is secured with plated screws. The wireway body has mounting holes on the back. It is made of 16 gauge steel with ANSI 61 gray finish.

• Cover is secured with plated screws
• Wireway body has mounting holes on the back
• Keyhole slots on the cover allow easy access

Product Highlights

This B-Line wireway is ideal for protecting and routing electrical cables in various industrial and commercial settings.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 4460GNK

Technical Specifications

• Product Name: Eaton B-Line series wireway
• Catalog Number: 4460 G NK
• UPC: 782051101355
• Product Length/Depth: 60 in
• Product Height: 4 in
• Product Width: 4 in
• Certifications: CSA Certified UL Listed
• Product Type: Wireway
• Finish color: ANSI 61 gray
• Closure type: Plated screws
• Mounting method: Thru holes
• Special features: Cover is secured with plated screws
• Type: G NK wireway
• Material thickness: 16 gauge
• Brand: B-Line
• Part Number #: 4460GNK
• UNSPSC: 39131710
• Applications: Control and Power Cable, Cable and Wire Junction, Distribution and Termination
• Cover Type: Screw
• Enclosure: NEMA 1, IP30
• IP Rating: IP30
• Material: Steel
• NEMA: 1
• Standard: UL 870,IEC 60529,CSA C22.2
• Sub Brand: Electrical Enclosures
• Product UPC: 78205110135
• Height: 4 Inch
• Length: 60 Inch
• Width: 4 in
• Manufacturer Part Number: 78205110135
• Manufacturer: Eaton's B-Line series
• Product Series: Lay-In
• Family Series: Eaton's B-Line series Wireway, Lay-In Series
• Description: 4460 G NK
• Latching Mechanism: Screw Cover
• Composition: Metallic
• Style: Lay-In
• Nominal Length: 60 "
• Nominal Height: 4 "
• Nominal Width: 4 "
• NEMA Rating: NEMA 1
• Net Weight: 16.6 lbs
• Gross Weight: 16.6 lbs
