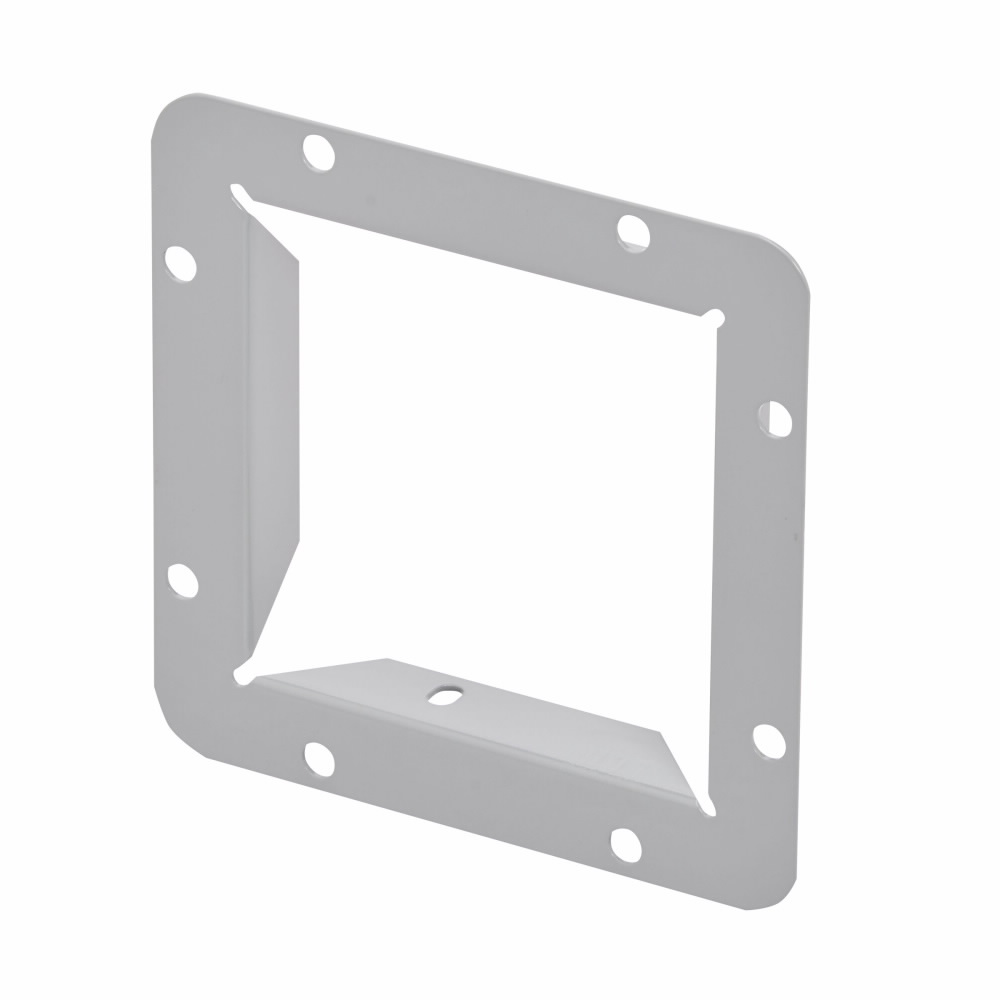

Eaton B-Line 1212GF Wireway End Flange 12 inches X 12 inches

Product Description

The Eaton B-Line 1212GF series wireway end flange, NEMA 1, made of steel with an ANSI 61 gray painted finish, measuring 12" X 12". It is designed for control and power cable, cable and wire junction, distribution and termination applications.

• Steel construction
• ANSI 61 gray painted finish
• NEMA 1, IP30 enclosure

Product Highlights

The Eaton B-Line 1212GF wireway end flange provides a durable and reliable solution for various electrical enclosure needs.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 1212GF

Technical Specifications

• Product Name: Eaton B-Line series wireway end flange
• Catalog Number: 1212 GF
• UPC: 782051109580
• Product Length/Depth: 12 in
• Product Height: 12 in
• Product Width: 13.5 in
• Product Weight: 1.364 lb
• Certifications: UL Listed CSA C22.2. NEMA
• Product Type: Wireway end flange
• Material: Steel
• Finish color: ANSI 61 gray painted
• Type: Wireway End Flange
• Degree of protection: 1
• Applications: Control and Power Cable, Cable and Wire Junction, Distribution and Termination
• Cover Type: Screw
• Enclosure: NEMA 1, IP30
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 782051109580
• Product UPC: 78205110958
• Height: 12 Inch
• Length: 12 Inch
• Width: 12 in
