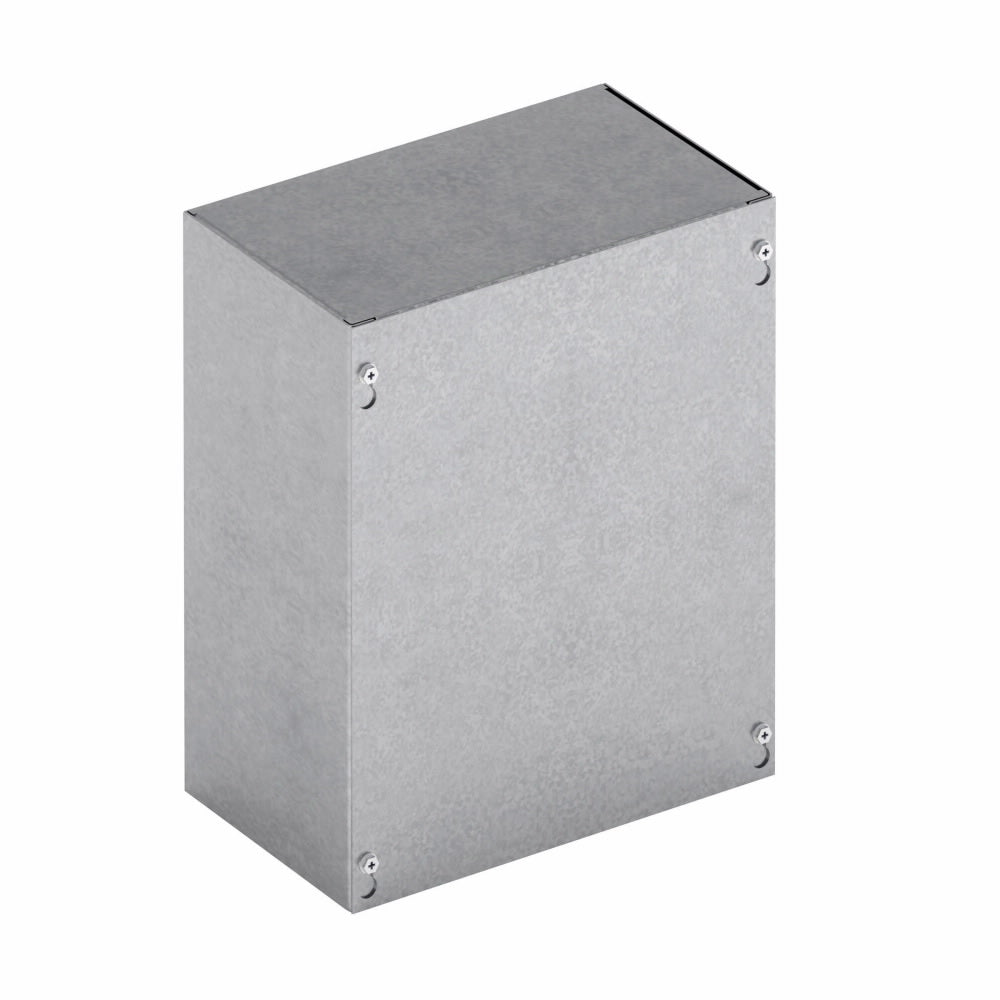

Eaton B-Line 12126SCGVNK Type 1 Junction Box 12 inches x 12 inches x 6 inches

Product Description

The Eaton B-Line 12126SCGVNK series Type 1 junction box measures 12" in height, 6" in length, and 12" in width. Featuring a screw cover and SCGV NK enclosure, it is surface mounted with a small single door, no knockout, and thru holes. Constructed of galvanized steel.

• NEMA 1
• Screw cover
• Surface mounted

Product Highlights

Type 1 junction box with screw cover, surface mounting, and galvanized steel construction.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 12126SCGVNK
• Country of Origin: US

Technical Specifications

• SKU: 12126 SCGV NK
• Product Name: Eaton B-Line series Type 1 junction boxes
• Catalog Number: 12126 SCGV NK
• UPC: 782051002584
• Product Length/Depth: 6 in
• Product Height: 12 in
• Product Width: 12 in
• Product Weight: 10 lb
• Certifications: UL 50 CSA C22.2. NEMA
• Product Type: Type 1 junction boxes
• Material: Galvanized steel
• Wall thickness: 16 gauge
• Finish color: Unfinished
• Color: Gray
• Style: Small single door
• Model: SCGV NK enclosure
• Cover type: Screw
• Mounting method: Surface
• Mounting hole details: Thru holes
• Special features: Keyhole slots on cover, plated screws
• Standards: NEMA Rating 1
• Country of origin: US
• Applications: Wiring Boxes, Junction and Pull Boxes
• Mounting Type: Surface
• Type: IP30,NEMA 1,Screw Cover
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 78205100258
• Finish: Pre-Galvanized
• Product UPC: 78205100258
• Height: 12 Inch
• Length: 6 Inch
• Manufacturer Part Number: 78205100258
• Manufacturer: Eaton's B-Line series
• Product Series: Type 1 Screw Cover
• Family Series: Eaton's B-Line series Enclosures, Type 1 Screw Cover Series
• Description: Enclosure, 12in.Hx12in.Wx6in.D, N1, Galvanized Steel, Lift-Off Screw Cover, w/o Knockouts, no Inner Panel
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Lift-Off Cover
• Window/Clear Cover: No
• Latching Mechanism: Screws
• Panel Included: No
• NEMA Rating: NEMA 1
• Nominal Height: 12 "
• Nominal Width: 12 "
• Nominal Depth: 6 "
• Approvals: CSA, UL
• Comments: No Inner Panel Available
