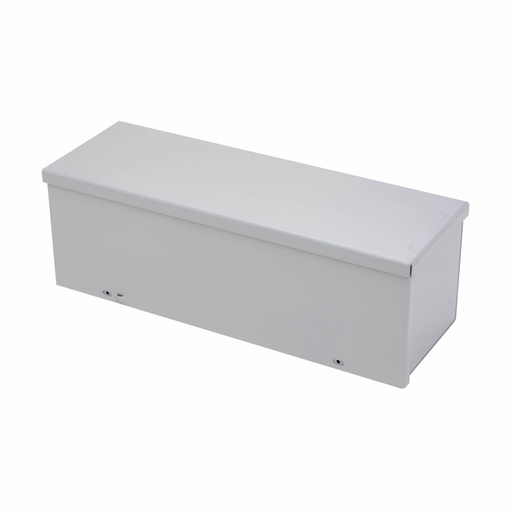

Eaton B-Line 121260GRTNK Series Wiring Trough 12 inches Height, 60 inches Length, 12 inches Width

Product Description

The Eaton B-Line 121260GRTNK series wiring trough is 12" in height, 60" in length and 12" in width. This GRT NK wiring trough features embossed thru holes and no knockouts. It has a screw cover, NEMA 3R rating, and is made of steel with plated screws and ANSI 61 gray finish, 16 gauge.

• Covers are secured by flange and plated screws
• Embossed thru holes
• No knockouts

Product Highlights

The Eaton B-Line wiring trough is ideal for use as a pull box, junction box, or splice box and provides protection against dripping non-corrosive liquids.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 121260GRTNK

Technical Specifications

• Product Name: Eaton B-Line series wiring trough
• Catalog Number: 121260 GRT NK
• UPC: 782051144895
• Product Length/Depth: 60 in
• Product Height: 12 in
• Product Width: 12 in
• Certifications: CSA Certified, UL Listed
• Product Type: Wiring trough
• Material thickness: 16 gauge
• Finish color: ANSI 61 gray
• Closure type: Plated screws
• Mounting method: Embossed thru holes
• Special features: Covers are secured by flange and plated screws
• Type: GRT NK wiring trough
• Length: 60 in
• Height: 12 in
• Weight: 53.183 lbs
