Eaton B-Line 12124RTSC Type 3/3R Junction Box 12 inches x 12 inches x 4 inches

Product Description

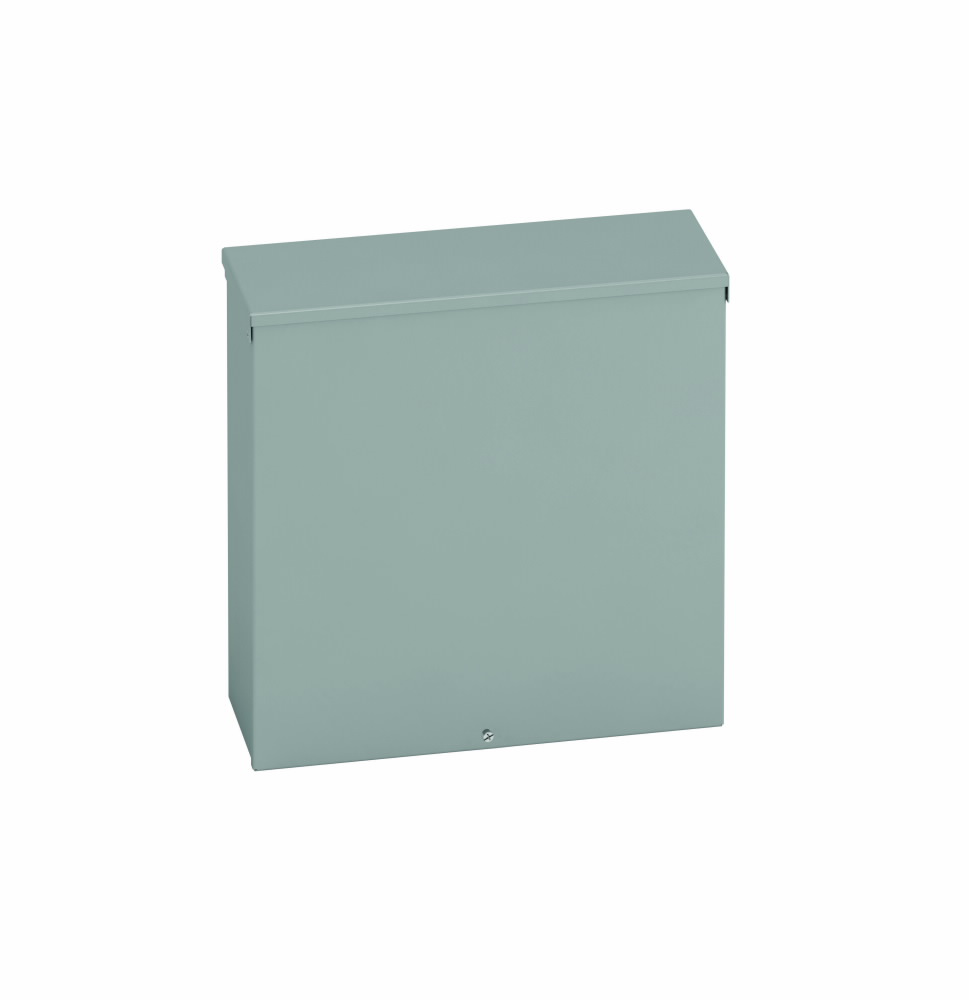

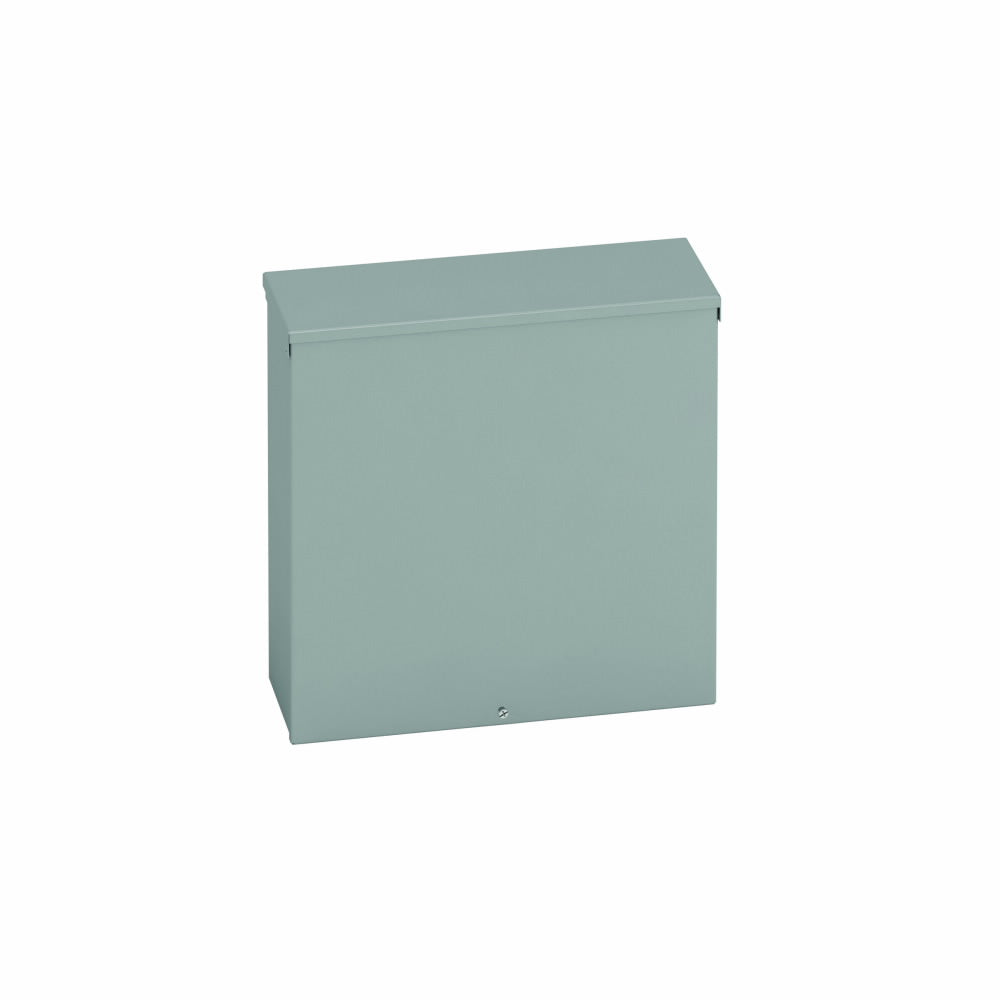

The Eaton B-Line 12124RTSC is a Type 3/3R junction box. Measuring 12" in height, 4" in length, and 12" in width, this carbon steel enclosure features a screw cover and RTSC enclosure. It is surface mounted with a small single door and embossed thru holes.

• NEMA 3R rating for environmental protection
• Constructed from carbon steel for durability
• Features 5 bottom knockouts for cable entry

Product Highlights

This junction box provides reliable environmental protection for commercial wiring, junction, pull, and termination applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 12124RTSC
• Country of Origin: US

Technical Specifications

• Product Name: Eaton B-Line series Type 3/3R junction boxes
• Catalog Number: 12124 RTSC
• UPC: 782051343809
• Product Length/Depth: 4 in
• Product Height: 12 in
• Product Width: 12 in
• Product Weight: 8.5 lb
• Certifications: UL 50 CSA C22.2. NEMA
• Product Type: Type 3/3R junction boxes
• Material: Carbon steel
• Wall thickness: 16 gauge
• Finish color: Painted
• Color: ANSI 61 gray
• Style: Small single door
• Model: RTSC enclosure
• Cover type: Screw
• Mounting method: Surface
• Mounting hole details: Embossed thru holes
• Closure type: Flanged cover
• Special features: Rain hood, plated screws
• Bottom knockouts: 5
• NEMA Rating: 3R
• Applications: Wiring Boxes, Junction and Pull Boxes
• Cable Entry: Knockouts
• Size: 12.00 In Width X 4.00 In Depth X 12.00 In Height
• Standard: CSA C22.2,IEC 60529,UL 50
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 782051343809
• GTiN: 00782051343809
• Product UPC: 78205134380
• Height: 12 Inch
• Length: 4 Inch
• Depth: 4 in
• Width: 12 in
• Mounting: Wall
• IP/NEMA Rating: NEMA 3R
• Finish: GRAY
