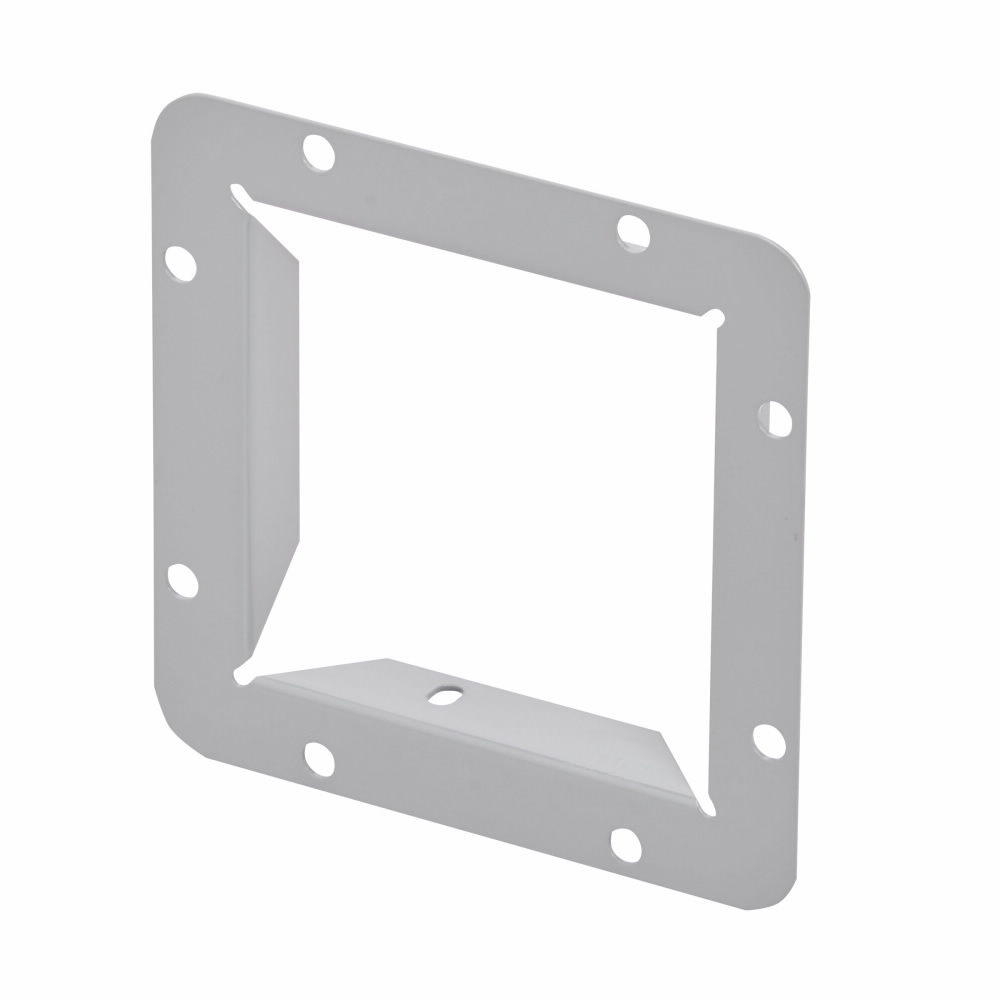

Eaton B-Line 1010GF Wireway End Flange 10 inches X 10 inches

Product Description

The Eaton B-Line 1010GF series wireway end flange, NEMA 1, is made of steel with an ANSI 61 gray painted finish. This wireway end flange measures 10" X 10" and is suitable for control and power cable, cable and wire junction, distribution and termination applications.

• Steel material
• ANSI 61 gray painted finish
• NEMA 1 enclosure

Product Highlights

The Eaton B-Line 1010GF wireway end flange provides a durable and reliable solution for wireway applications.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 1010GF
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton B-Line series wireway end flange
• Catalog Number: 1010 GF
• UPC: 782051109542
• Product Length/Depth: 10 in
• Product Height: 10 in
• Product Width: 11.5 in
• Product Weight: 1.159 lb
• Certifications: UL Listed CSA C22.2. NEMA
• Product Type: Wireway end flange
• Material: Steel
• Finish color: ANSI 61 gray painted
• Type: Wireway End Flange
• Degree of protection: 1
• Applications: Control and Power Cable, Cable and Wire Junction, Distribution and Termination
• Cover Type: Screw
• Enclosure: IP30,NEMA 1
• Standard: CSA C22.2,IEC 60529,UL 870
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 782051109542
• Finish: Plain
• Weight: 1.159 lb
• Height: 10 Inch
• Length: 10 Inch
• Width: 11.5 in
• Product UPC: 78205110954
• UNSPSC: 39131711
• Product Category: Wireway Box/Wall Connecto
• Commodity Code: 3631
• Country of Origin: USA
• Unique Product Key: 359365
• Mfr Catalog Number: 1010 GF
