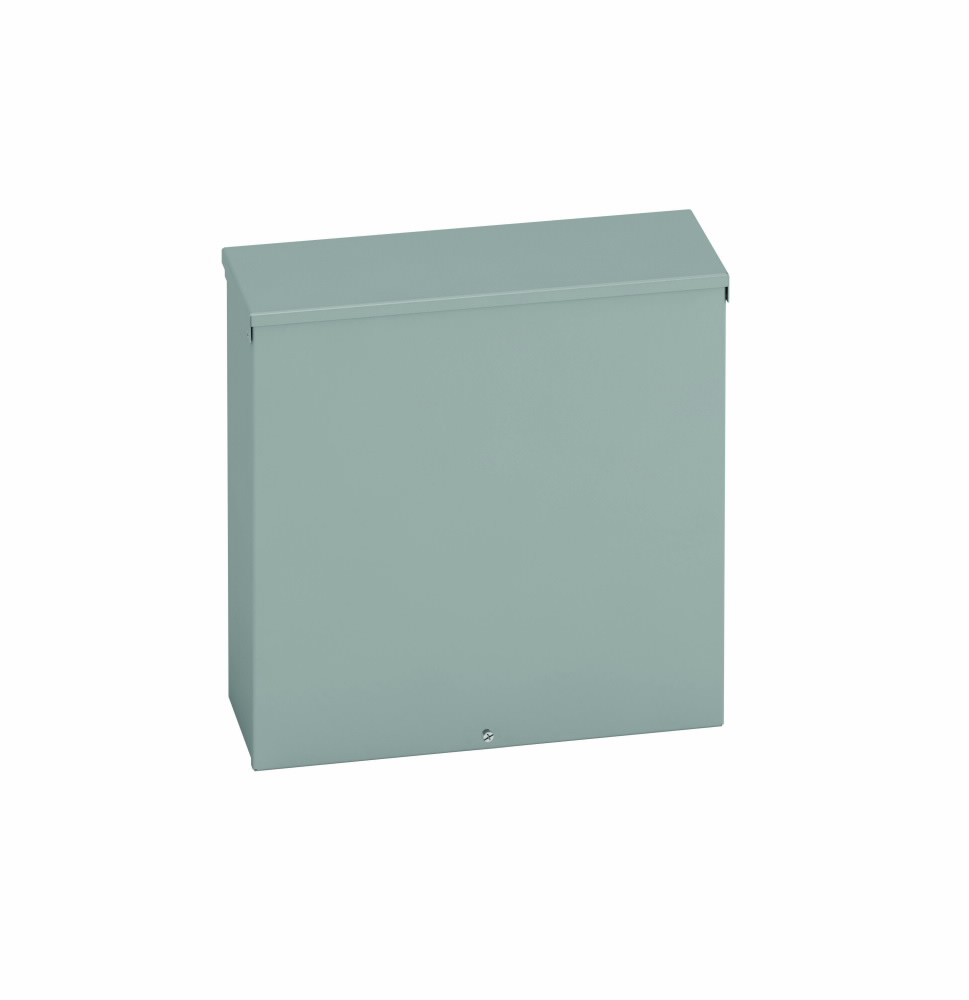

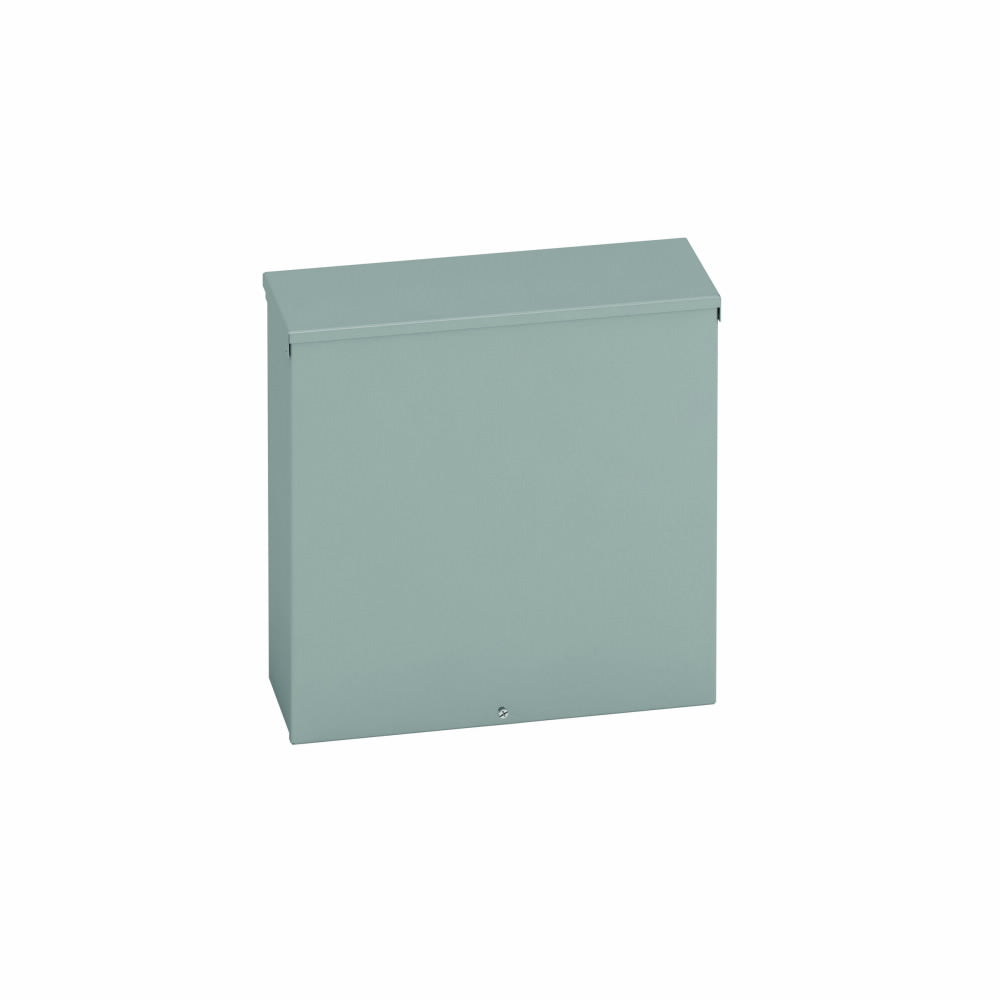

Eaton B-Line 10104RTSC Series Type 3/3R Junction Boxes 10 inches x 10 inches x 4 inches

Product Description

The Eaton B-Line 10104RTSC series Type 3/3R junction boxes are 10" in height, 4" in length, and 10" in width. These carbon steel junction boxes feature a NEMA 3R rating, screw cover, and RTSC enclosure. Designed for surface mounting, they include a small single door and 5 embossed thru holes. Ideal for wiring, junction, and pull box applications.

• Rain hood
• Plated screws
• Enclosure body has embossed mounting holes on the back

Product Highlights

The Eaton B-Line series junction boxes are made of carbon steel with a NEMA 3R rating and are suitable for surface mounting.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: 10104RTSC
• Country of Origin: US

Technical Specifications

• Product Name: Eaton B-Line series Type 3/3R junction boxes
• Catalog Number: 10104 RTSC
• UPC: 782051342802
• Product Length/Depth: 4 in
• Product Height: 10 in
• Product Width: 10 in
• Product Weight: 6.4 lb
• Certifications: UL 50 CSA C22.2. NEMA
• Product Type: Type 3/3R junction boxes
• Material: Carbon steel
• Wall thickness: 16 gauge
• Finish color: Painted
• Color: ANSI 61 gray
• Style: Small single door
• Model: RTSC enclosure
• Cover type: Screw
• Mounting method: Surface
• Mounting hole details: Embossed thru holes
• Closure type: Flanged cover
• Special features: Rain hood, plated screws
• Bottom knockouts: 5
• NEMA Rating: 3R
• Country of origin: US
• Applications: Wiring Boxes, Junction and Pull Boxes
• Cable Entry: Knockouts
• Standard: CSA C22.2,IEC 60529,UL 50
• Type: IP32,NEMA 3R,Screw Cover
• Brand: B-Line
• Sub Brand: Electrical Enclosures
• 12-Digit UPC: 782051342802
• Finish: GRAY
• Depth: 4 in
• Mounting: Wall
• IP/NEMA Rating: NEMA 3R
• ECCN: EAR99
• Cover Mounting: Screw Cover
• UNSPSC: 39121324
