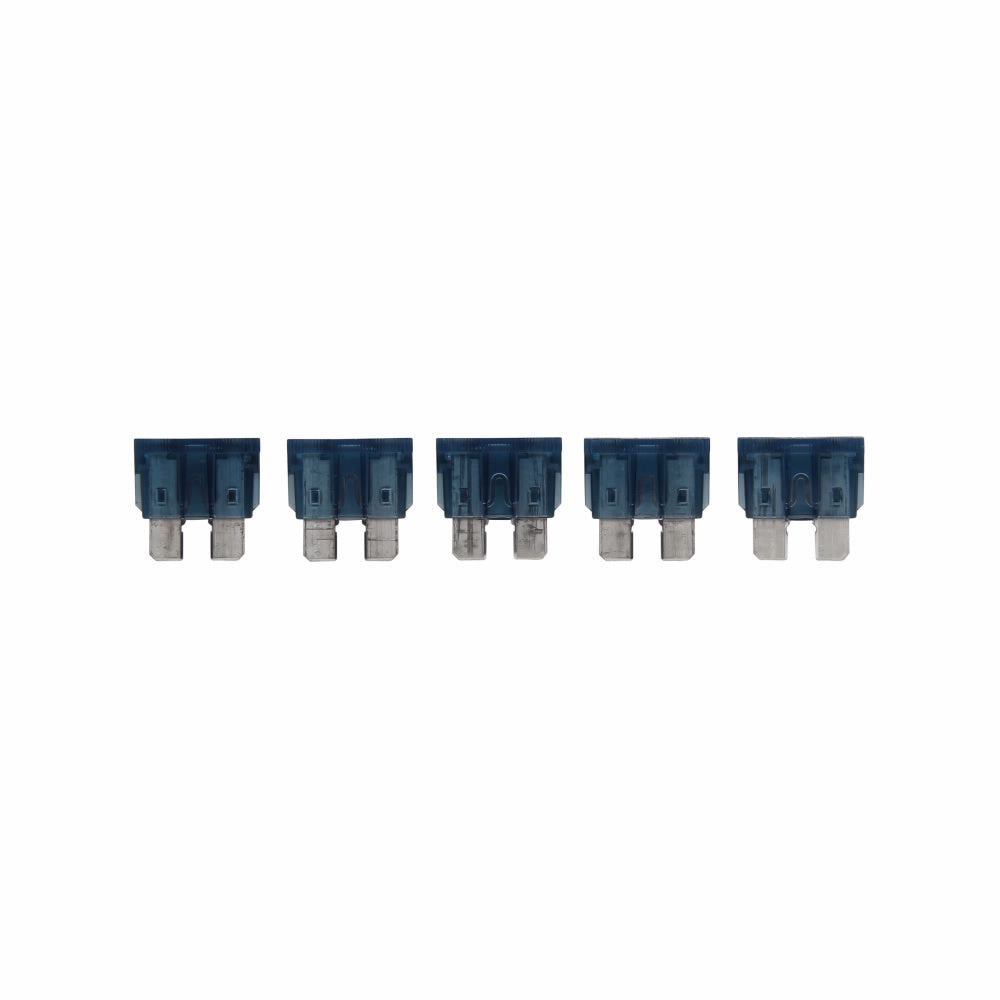

Eaton ATC-15 BUS FUSE; 15A AUTOMOTIVE FAST ACTING; 19.1x19.3x5.25mm PLASTIC-BLUE BLADE; 32VDC

Product Description

The Eaton ATC-15 is a standard fast acting fuse designed for automotive applications. This fuse offers a rated current of fifteen amperes and operates at a voltage of thirty-two volts DC. It is made with a plastic body in blue, ensuring visibility and easy identification during installation or replacement.

• Fast acting response to overcurrent situations
• Single element design enhances reliability
• UL recognized for safety and performance

Product Highlights

This fuse is ideal for various low voltage automotive and control circuit applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171270325

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 32 VDC
• Color: Blue
• Material: Plastic
• Width: 0.76 in
• Depth: 0.207 in
• Mounting Type: Holder
• Terminal Type: Blade
• Series: ATC
• Standards/Approvals: UL JFHR2 File NO E56412|SAE J1284
• Rejection Type: Non-Rejection
• Element: Single
• Indicating: Non-Indicating
