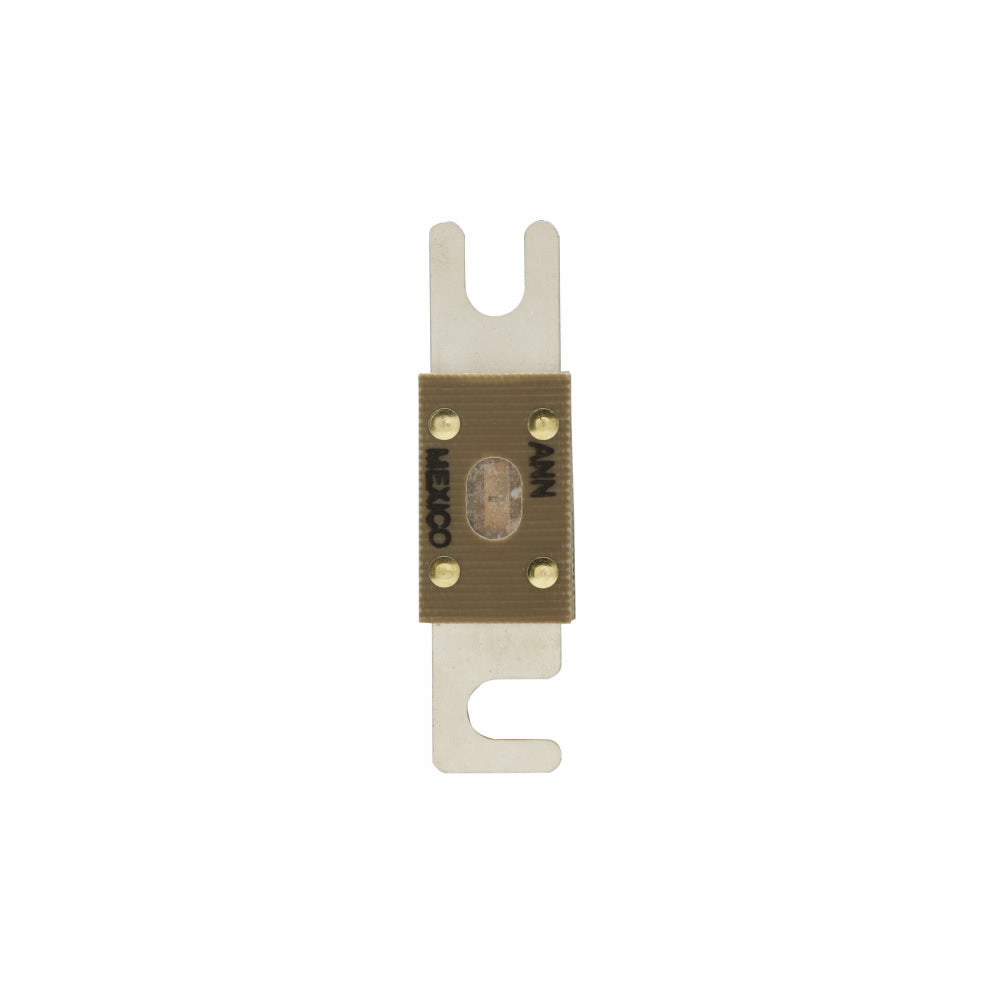

Eaton ANN-250 BUS FUSE VERY FAST ACTING L 250 A 125 VAC/80 VDC

Product Description

The Eaton ANN-250 is a non-indicating very fast acting circuit limiter designed for high-performance applications. With a current rating of 250 Amperes, it operates at 125 VAC or 80 VDC. The device has a 2.5/2.7 kAIC interrupt rating. It features a bolted-down terminal and is compatible with stud mount installations. The body is built using melamine material and measures three and three-sixteenth inches in length by seven-eighths inch in width.

• Current rating: 250 A
• Voltage rating: 125 VAC/80 VDC
• Flat body design for efficient space utilization

Product Highlights

The Eaton ANN-250 offers a small footprint and a window that shows limiter status. It responds quickly to short circuit conditions, ensuring operational safety. The open link element is visible through a mica window, providing easy monitoring of the device status.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Non-Indicating Very Fast Acting

Technical Specifications

• Amperage Rating: 250 A
• Voltage Rating: 125 VAC / 80 VDC
• Body Size: 3-3/16 in L x 7/8 in W
• Body Type: Flat
• Element: Single
• Material: Melamine
• Mounting Type: Stud
• Series: ANN
• Standards/Approvals: CE Certified, CSA File No.53787, UL File No. E56412 Guide JFHR2
• Terminal Type: Bolted-Down
