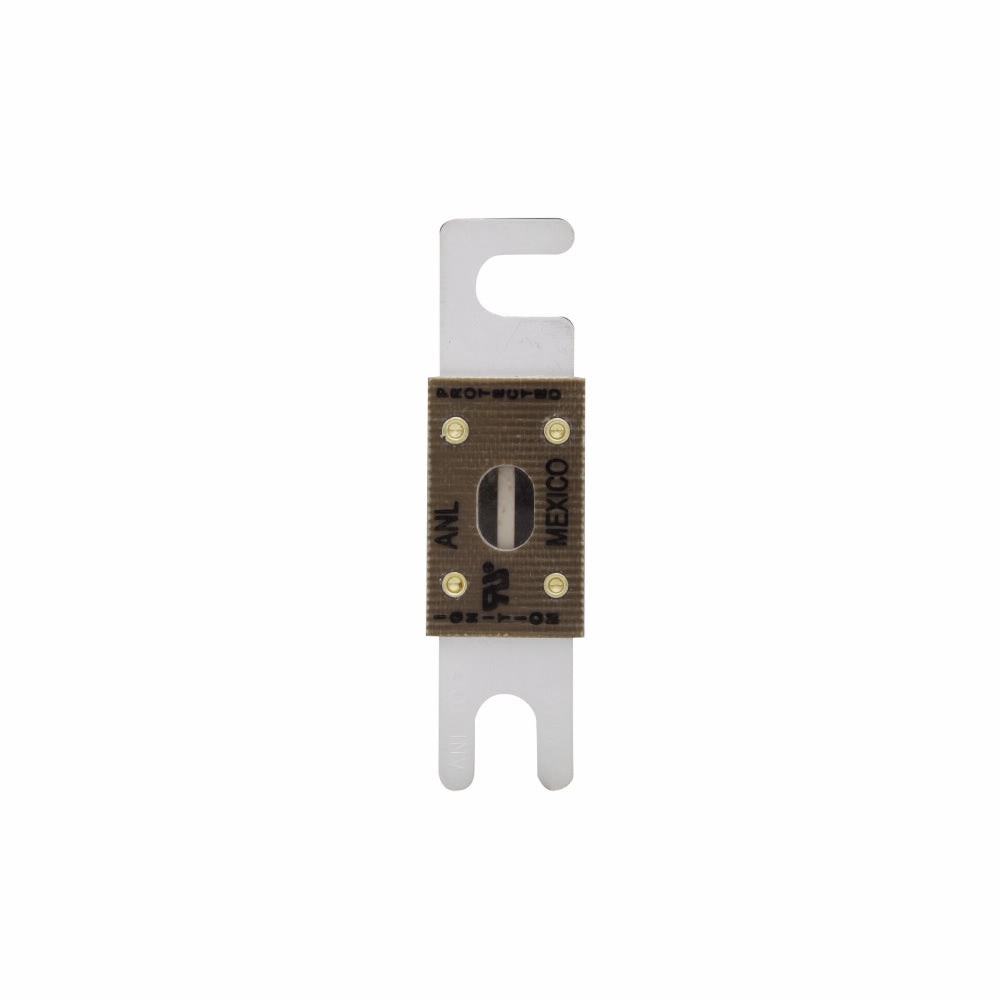

Eaton ANL-35 Bus Ind Fuse 1

Product Description

The Eaton ANL-35 Bus Ind Fuse is a circuit limiting device that offers non-time delay, non-indicating performance at 35 Amperes. This limiter supports up to 32 VAC or 80 VDC and is designed for interrupted currents of 2.7 to 6 kA. It features a bolted-down terminal for stable mounting and has a flat body design, ensuring efficient use of space in various applications.

• 35 A amperage rating
• Flat body size of 3-3/16 inches long by 7/8 inch wide
• Built for aviation, marine, and security systems applications

Product Highlights

The Eaton ANL-35 is suitable for fast acting scenarios, isolating faults in electrical systems. Its compact size makes it ideal for installation in tighter spaces.

Product Information

Standard Information

• Manufacturer: Eaton
• Product Name: ANL35 Bus Ind Fuse (1)

Technical Specifications

• Amperage Rating: 35 A
• Voltage Rating: 32 VAC/80 VDC
• Material: Melamine
• Body Size: 3-3/16 in L x 7/8 in W
• Mounting Type: Stud
• Element: Single
• Standards/Approvals: CSA 1422-30, RoHS Compliant, UL File No. E56412
• Application: Aviation, Fork Lifts, Marine, Safety and Security Systems
