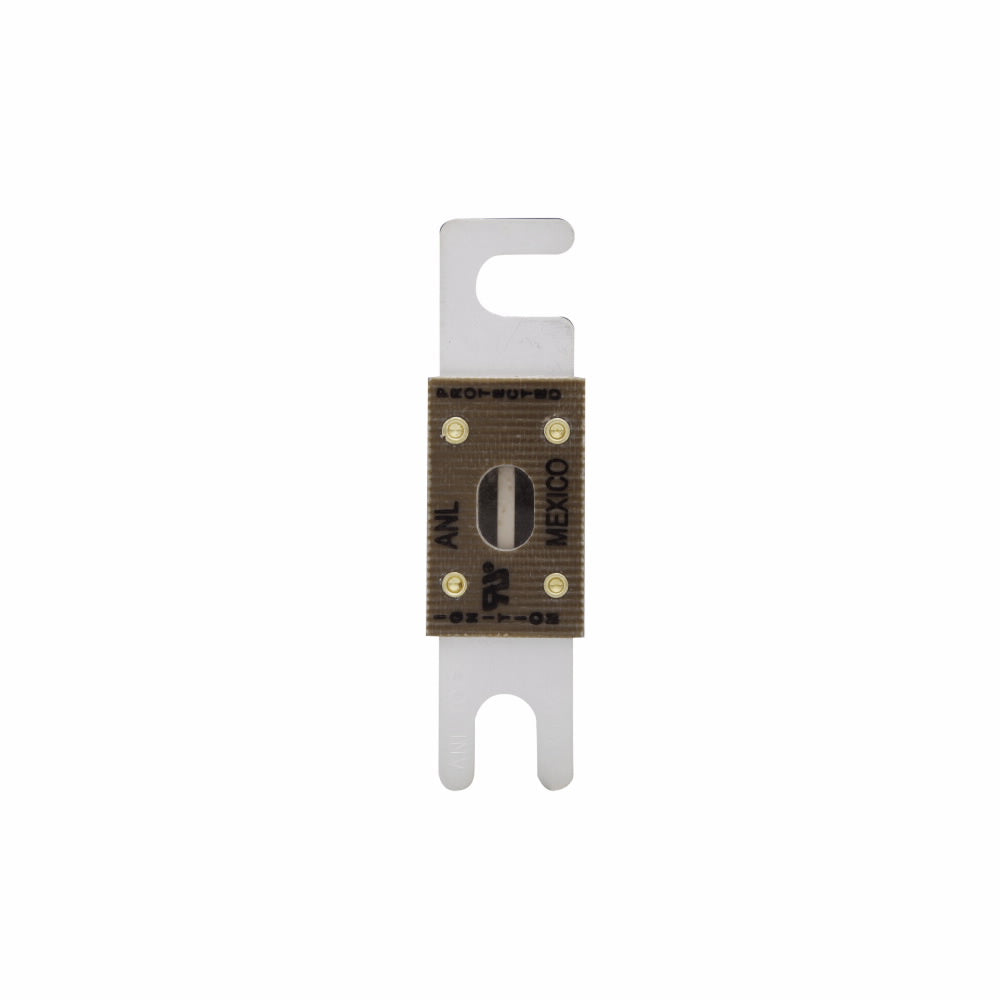

Eaton ANL-300 EFSE ANL-300 5X20MM QUICK ACT

Product Description

The Eaton ANL-300 is a low voltage non-time delay circuit limiter fuse designed for various applications. This fuse provides essential protection for electrical systems. It is rated for three hundred amperes and can handle voltages of thirty-two volts alternating current and eighty volts direct current.

• Low voltage non-time delay capability
• Designed for flat body installation
• Ideal for aviation and industrial applications

Product Highlights

This fuse is an important component in protecting electrical circuits from overloads in systems like lift trucks and marine applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Product UPC: 782634706069

Technical Specifications

• Amperage Rating: 300 A
• Voltage Rating: 32 VAC/80 VDC
• Body Size: 3-3/16 inches long by 7/8 inches wide
• Mounting Type: Stud
• Element: Single
• Standards/Approvals: CSA File No.53787, RoHS Compliant, SAE J1171, UL File No.E56412 Guide JFHR2
• Material: Melamine
• Body Type: Flat
