Eaton AN59GN0A5E045 Freedom NEMA motor control starter 45 amp

Product Description

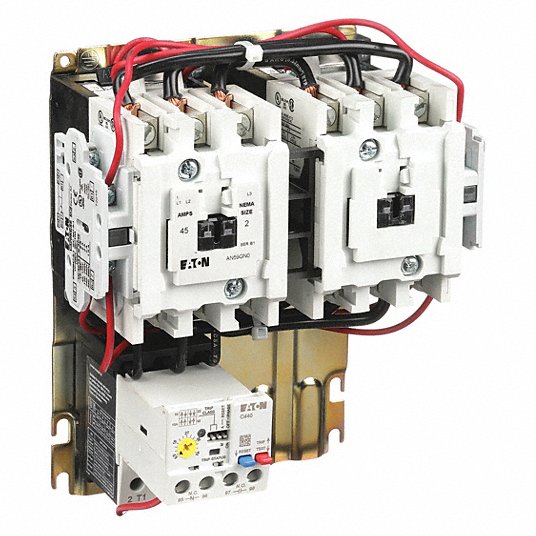

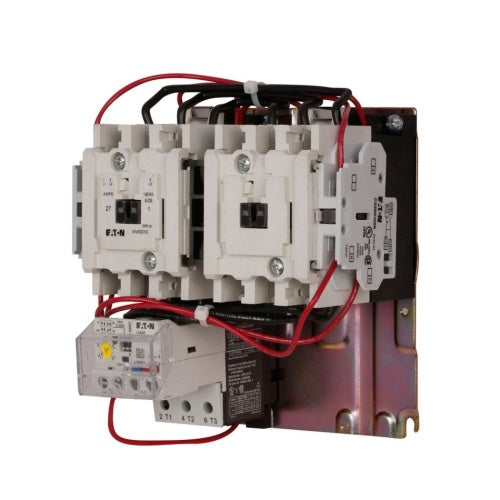

The Eaton AN59GN0A5E045 Freedom NEMA starter is a full voltage reversing starter with a C440 electronic overload relay. It features a NEMA Size 2 open enclosure and is rated for 45 A. Designed for horizontal mounting, it operates with a 120/60 or 110/50 coil voltage and includes a C440 standard feature set from 9–45 A.

• Full voltage reversing
• C440 electronic overload relay
• NEMA Size 2 open enclosure - 45 A
• Horizontal mounting
• 120/60 or 110/50 coil voltage

Product Highlights

This reversing NEMA motor starter is ideal for motor applications that switch their direction constantly.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN59GN0A5E045
• Country of Origin: Dominican Republic

Technical Specifications

• NEMA frame size: NEMA Size 2
• Relay: C440 electronic
• Type: Starter
• Special features: With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
• Configuration: Reversing
• Amperage Rating: 45 A
• Size: 2
• Overload relay: C440 electronic
• Coil voltage: 110/120 V AC
• Starter Enclosure Type: Open
• Starter NEMA Size: 2
• Starter Frequency: 50 Hz
• Starter Coil Voltage: 110 VAC
• Starter Amperage: 45 Amp
• Starter Reversing Capability: Reversing
• Manufacturer: Eaton
• Component: NEMA Reversing Starter
• Starter Maximum Voltage: 120 VAC
• Brand: EATON
• Manufacturer Part Number: AN59GN0A5E045
• Series: Freedom
• Starter Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Number of Poles: 3
• Phase: 1/3
• Max Current (AC): 45 A
• Minimum Overload Relay Current Setting: 9 A
• Maximum Overload Relay Current Setting: 45 A
• Trip Class: 10A/10/20/30
• Frequency: 50/60 Hz
• Nominal Coil Voltage @ 60Hz: 120V AC
• Maximum Voltage Rating: 600V AC
• Horsepower @ Single Phase - 120V AC: 3 hp
• Horsepower @ Single Phase - 240V AC: 7-1/2 hp
• Horsepower @ Three Phase - 208V AC: 10 hp
• Horsepower @ Three Phase - 240V AC: 15 hp
• Horsepower @ Three Phase - 480V AC: 25 hp
• Horsepower @ Three Phase - 600V AC: 25 hp
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• Operator: None
• NEMA Enclosure Rating: No
• Mounting Style: Surface
• Mounting Postion: Horizontal
• Standards: CE; CSA; UL Listed
• UNSPSC: 39121521
• Mounting: Horizontal
• Connection Type: Line/Load Lug
• Country of Origin: DO
• Enclosure Type: Open
