Eaton AN56BN0AC Nema Open Rev Str Siz

Product Description

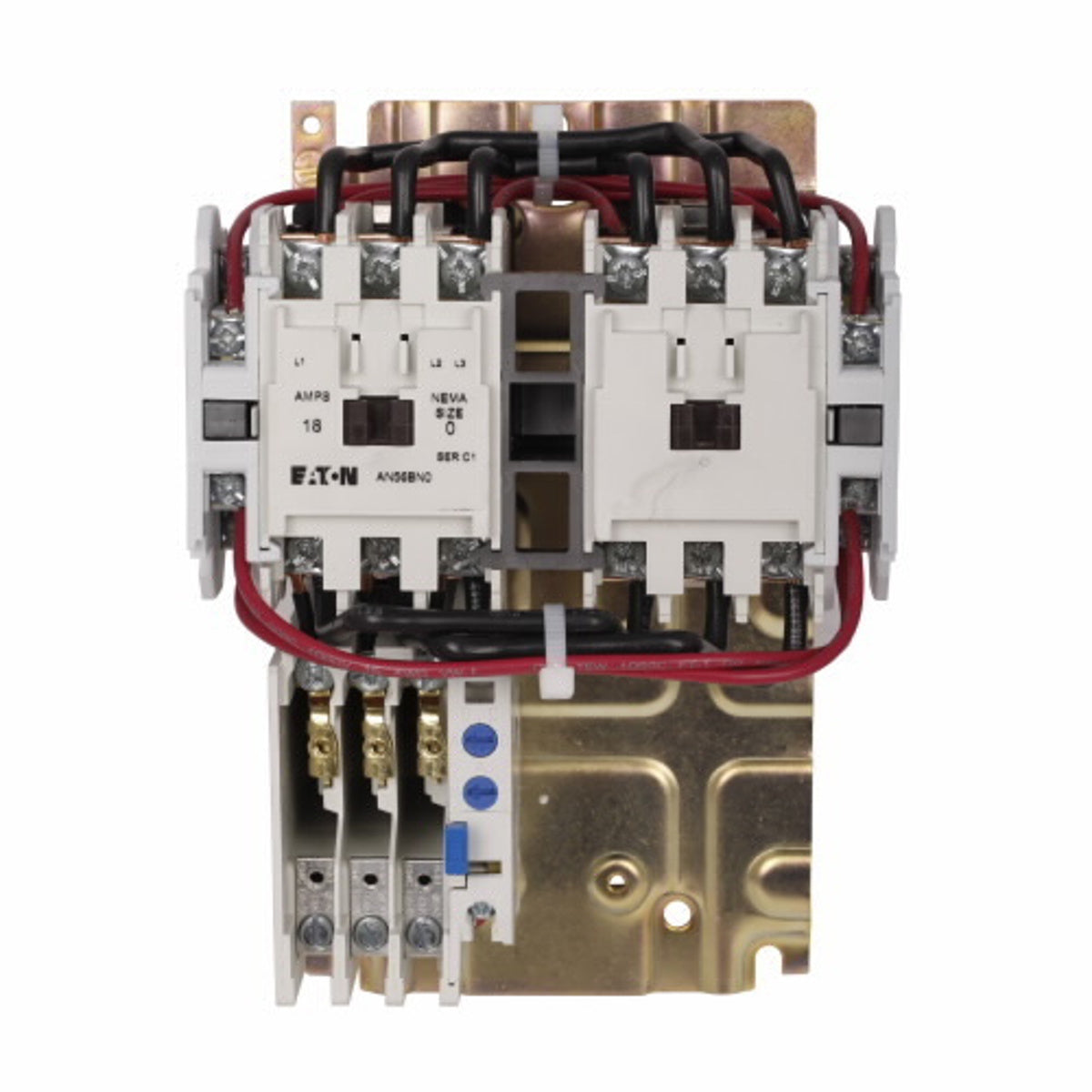

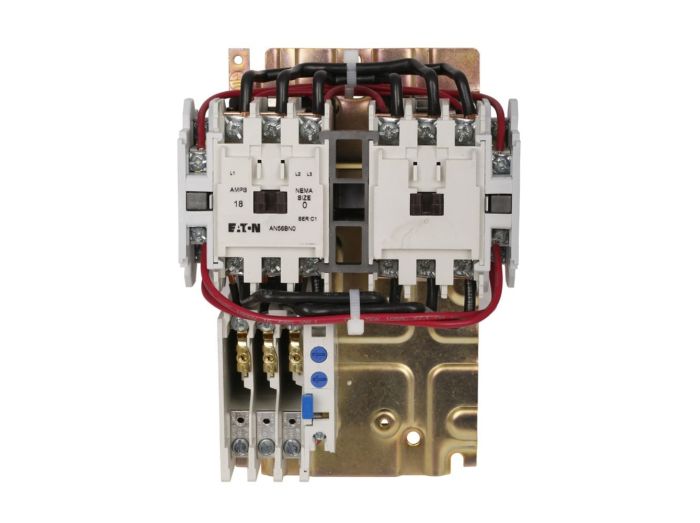

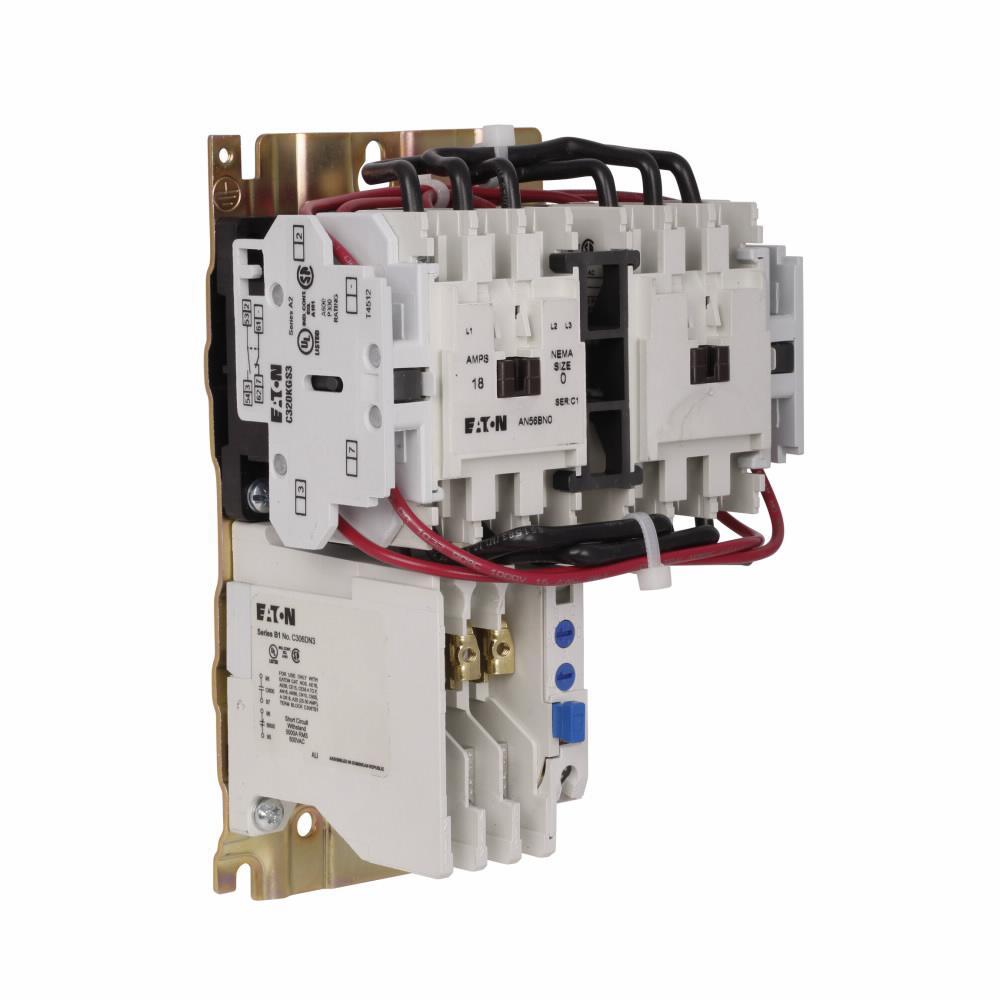

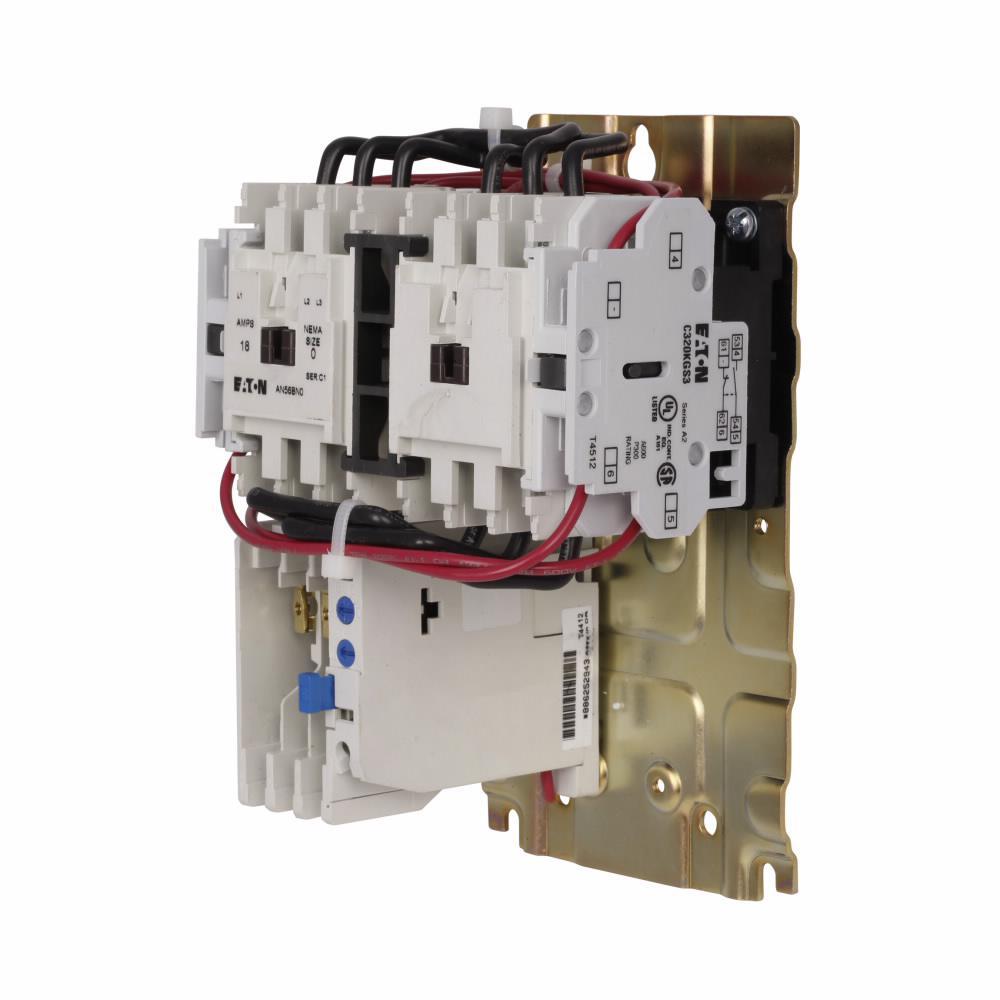

The Eaton AN56BN0AC is a Freedom NEMA motor control starter with a reversing reset overload relay. It supports 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, and 10 hp at 480,600V maximum horsepower. Operates at 120V/60 Hz or 110V/50 Hz coil voltage and 18A, with a three-pole, Size 0 configuration. Designed for use with CE or CN non-reversing and reversing contactors.

• Features a compact, space-saving design.
• Employs high strength, impact and temperature resistant insulating materials.
• Equipped with accessible terminals for ease of wiring.

Product Highlights

This Eaton Freedom starter is suitable for stationary machinery and equipment, offering overload protection up to 900 hp.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN56BN0AC
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Motor control starter
• Size: 0
• Brand: Eaton
• Amperage: 18 Amp
• Height: 3.31 Inch
• Length: 4.61 Inch
• Number of Poles: 3 Pole
• Number of Phases: 1,3 Phase
• Applications: Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Catalog Number: AN56BN0AC
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Standard: CSA Certified,UL Listed
• UPC: 782113972480
• GTIN: 00782113972480
• Item Type: Motor control starter
• Amperage Rating: 18 A
• Connection Type: Line/Load
• Frequency Rating: 50/60 Hz
• Motor Power: 5 hp
• Operating Cycles: 3000000 Cycles
• Overload Relay: C306 Bimetal
• Reset Type: Automatic/Manual
• Series: Freedom
• Voltage Rating: 600 VAC
• Coil Voltage: 110 to 120 VAC
• Action: Reversing
• Enclosure Type: NEMA 0
• Maximum Horsepower: 10 hp at 480,600V
• Voltage: 120V/60 Hz or 110V/50 Hz
• Poles: Three-pole
• Product Length/Depth: 4.61 in
• Product Height: 3.31 in
• Product Width: 4.38 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Heater Packs must be purchased separately
• Product Type: Motor control starter
• HP rating - max: 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208,240V, 10 hp at 480,600V
• Phase: Single-phase, three-phase
• Style: Open
• Industry Standard: NEMA
• Nominal Voltage: 120 VAC
• Current Rating: 18 A
• Coil Type: Magnetic
• Auxiliary Contact: 1NO
• Overload Type: Interchangeable Bimetallic
• Overload Series: C306
• Termination: Screw
• Mounting: Surface
• Construction Standard: NEMA 600V AC
• UL Cont. Amps: 18A
• Hp 1-Phase 115V: 1 Hp
• Hp 1-Phase 230V: 2 Hp
• Hp 3-Phase 200V: 3 Hp
• Hp 3-Phase 230V: 3 Hp
• Hp 3-Phase 460V: 5 Hp
• Hp 3-Phase 575V: 5 Hp
• Motor FLA: Refer to Heater
• Auxiliary Contacts: (1) NO
• IGCC: 4727
