Eaton AN56AN0BC Freedom NEMA motor control starter 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V

Product Description

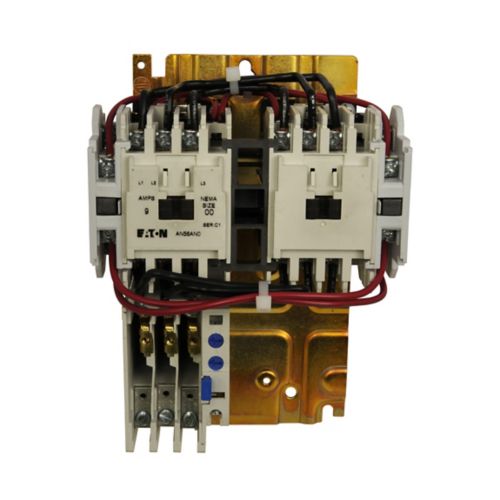

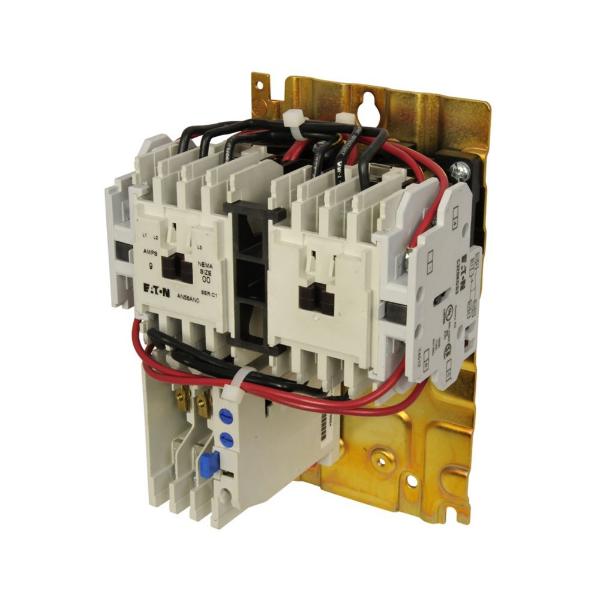

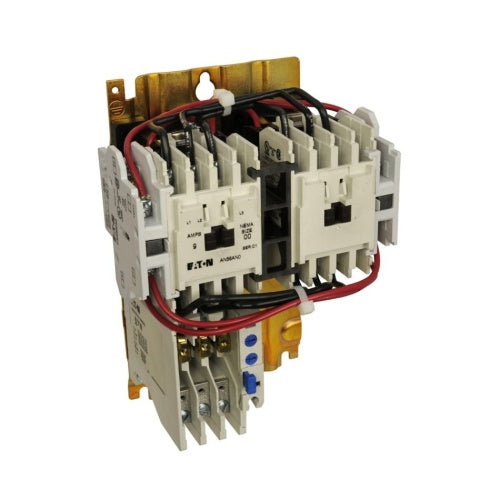

The Eaton AN56AN0BC Freedom NEMA motor control starter is a reversing reset overload relay starter with a maximum horsepower of 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208,240V, and 2 hp at 480,600V. It features a 240V/60 Hz or 220V/50 Hz coil voltage and a 9A, three-pole, Size 00 configuration. Heater packs must be purchased separately.

• Reversing Reset Overload Relay Starter
• Compact, space-saving design
• Adjustable bimetallic ambient compensated contactors

Product Highlights

The Eaton Freedom NEMA motor control starter features state-of-the-art technology and high strength, impact and temperature resistant insulating materials.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN56AN0BC
• Country of Origin: US

Technical Specifications

• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: AN56AN0BC
• UPC: 782113980492
• Product Length/Depth: 4.61 in
• Product Height: 3.31 in
• Product Width: 4.38 in
• Certifications: UL Listed CSA Certified
• Catalog Notes: Heater Packs must be purchased separately
• Product Type: Motor control starter
• HP rating - max: 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
• Phase: Single-phase, three-phase
• Amperage Rating: 9A
• Size: 00
• Coil voltage: 220-240 Vac, 50/60 Hz
• Starter Frequency: 50 Hz
• Starter NEMA Size: 00
• Starter HP: 1 HP @ 240 VAC
• Starter Poles: Three Pole
• Starter Amperage: 9 Amp
• Starter Coil Voltage: 220 VAC
• Starter Reversing Capability: Reversing
• Manufacturer: Eaton
• Component: NEMA Reversing Starter
• Starter Maximum Voltage: 240 VAC
• Brand: Eaton - Cutler Hammer
• Contact Configuration: 1NO, 1NC
• Control Voltage: 240 V
• Current Rating: 9 A
• Frame Type: 00 Frame (45mm)
• Motor FLA Range: Heaters Purchased Separately
• Mounting Type: Panel Mount
• Number of Poles: 3
• Numeric ID: 4388640
• Primary Type: DOL Starter
• Series: Freedom Series
• Item: Motor Starter
• Frequency: 50/60 Hz
• Max. Hp Rating: 1/3 hp @ 115V, 1 hp @ 230V, 1-1/2 hp @ 208, 240V, 2 hp @ 480, 600V
• Notes: Heater Packs Must Be Purchased Separately
• Length: 4.61"
• Width: 4.38"
• Amps Rating: 9A
