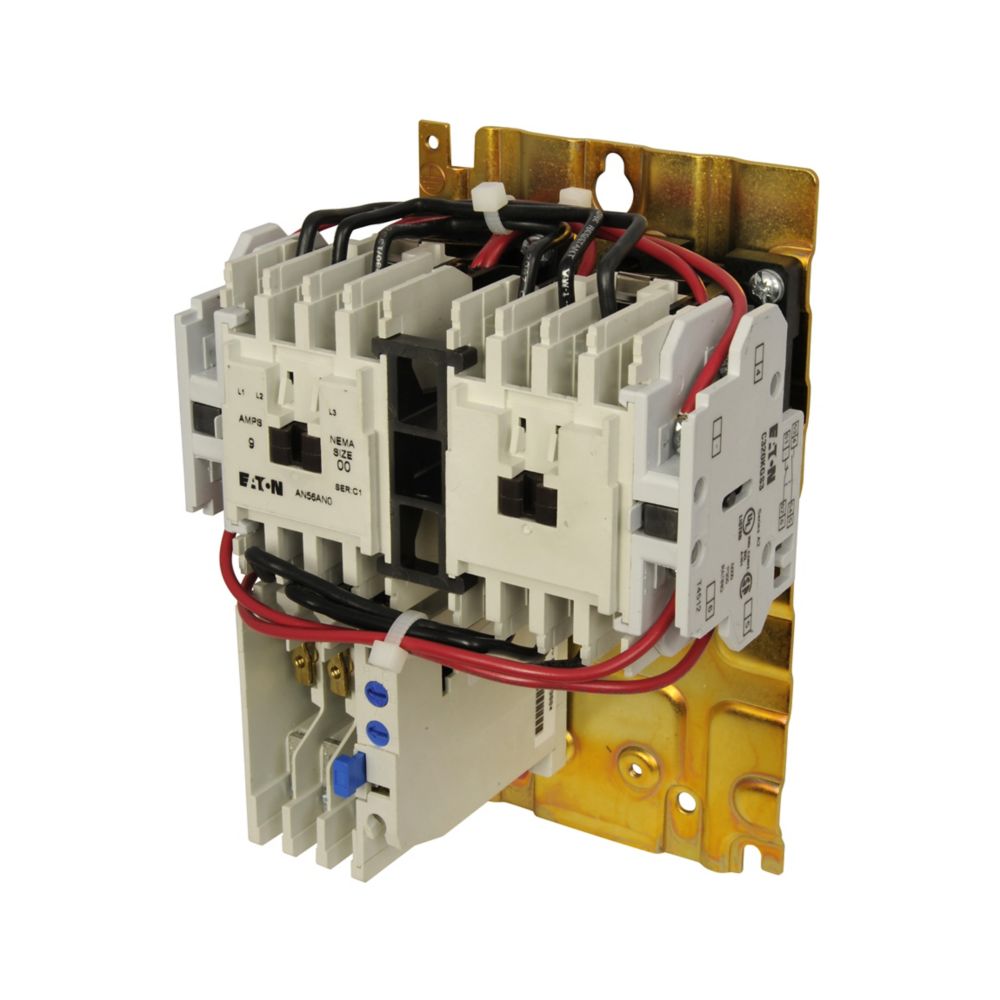

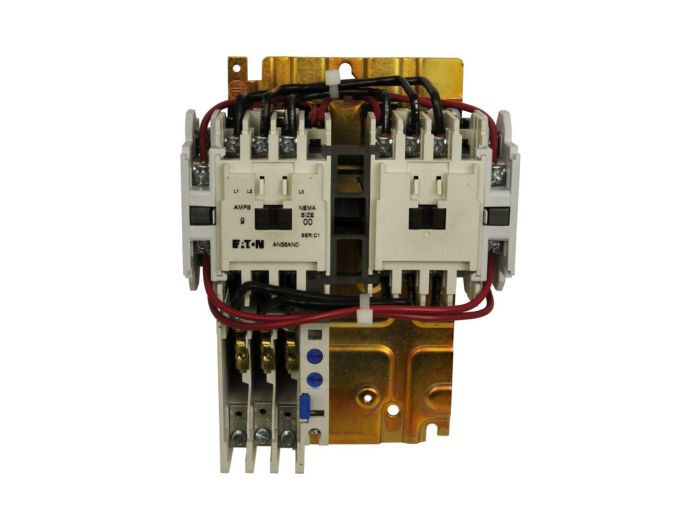

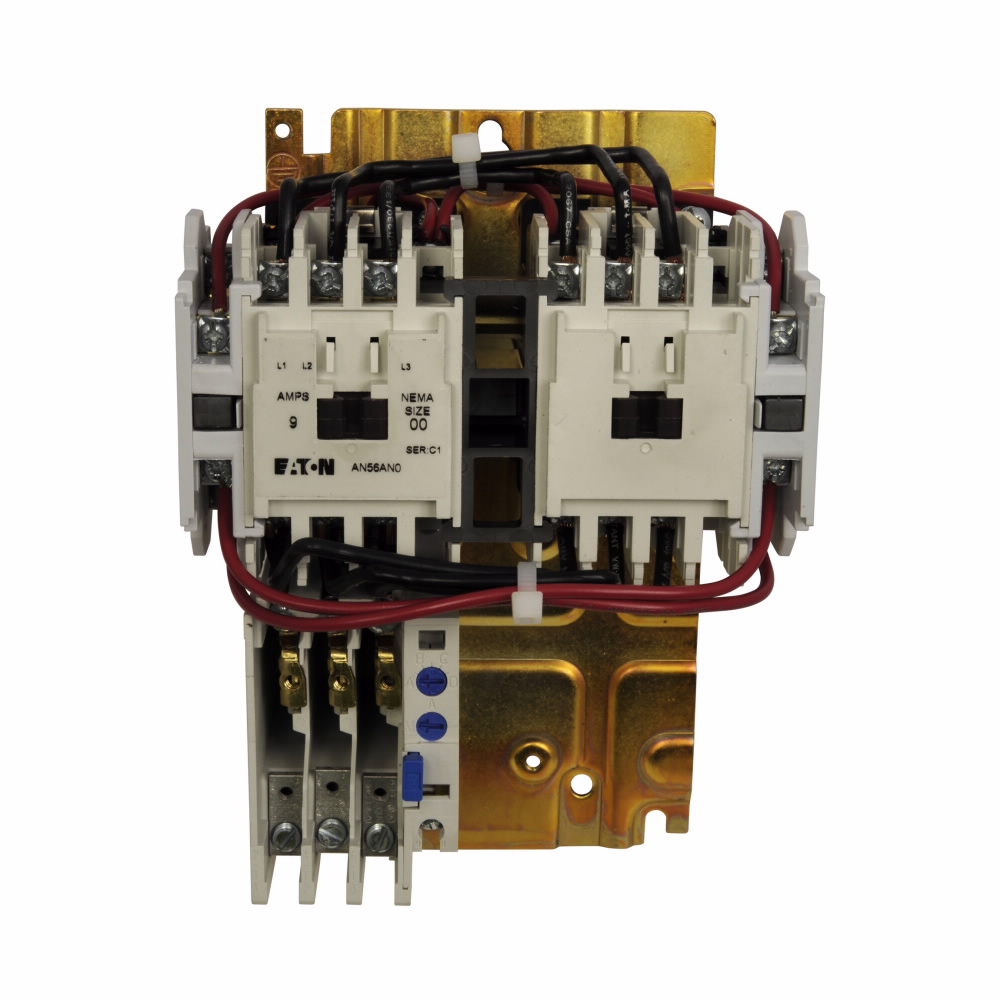

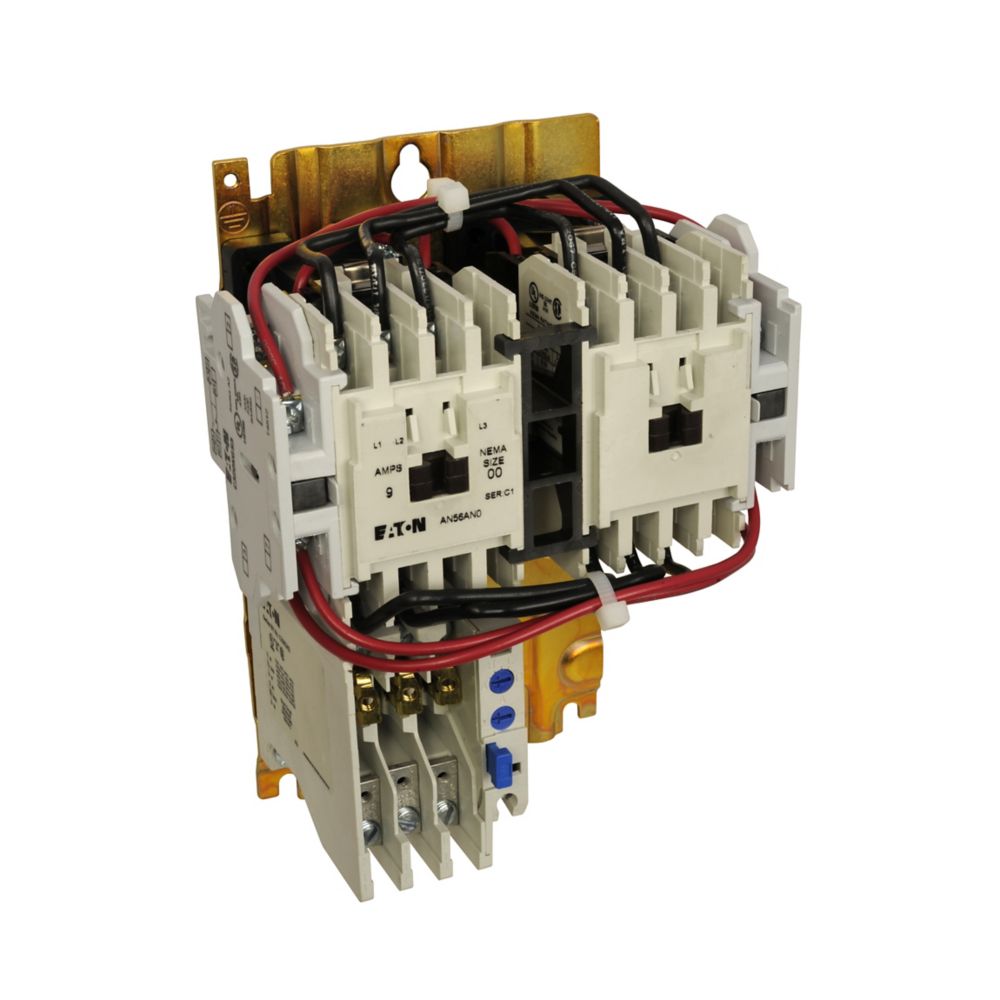

Eaton AN56AN0AC Nema Open Rev Str Siz 0

Product Description

The EATON AN56AN0AC Freedom NEMA motor control starter is rated for 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208,240V, and 2 hp at 480,600V maximum horsepower. It features a 120V/60 Hz or 110V/50 Hz coil voltage, 9A, and a three-pole configuration. It is designed for use with CE or CN non-reversing and reversing contactors.

• Designed for use with CE or CN non-reversing and reversing contactors
• Features interchangeable heater packs
• Full line of snap-on accessories common to both IEC and NEMA devices

Product Highlights

The EATON AN56AN0AC motor control starter is suitable for stationary machinery and equipment. It offers overload protection up to 900 hp.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN56AN0AC
• Country of Origin: Dominican Republic

Technical Specifications

• Size: 0
• Type: Full Voltage Horizontal Reversing Type AN56
• Brand: Eaton
• Amperage: 9 Amp
• Product UPC: 78211397246
• 12-Digit UPC: 782113972466
• Applications: Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Coil Voltage: 120 V
• Number of Poles: 3 Pole
• Number of Phases: 1,3 Phase
• Standard: CSA,UL
• Certifications: CSA Certified UL Listed
• Catalog Notes: Heater Packs must be purchased separately
• HP rating - max: 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V
• Phase: Single-phase, three-phase
• Amperage Rating: 9 A
• Coil voltage: 110-120 Vac, 50/60 Hz
• Part Number: AN56AN0AC
• Manufacturer: Eaton Cutler-Hammer
• Family: Freedom Series
• Volt: 120
• Category: Starters
• Product Series: Freedom
• Style: Open
• Industry Standard: NEMA
• Voltage: 120 VAC
• Nominal Voltage: 120 VAC
• Current Rating: 9 A
• Coil Type: Magnetic
• Auxiliary Contact: 1NO
• Overload Type: Interchangeable Bimetallic
• Overload Series: C306
• Termination: Screw
• Mounting: Surface
• Comments: Heater packs are required and are sold separately. Three heater packs per carton.
• Voltage Rating: 600 VAC
• Frequency Rating: 50/60 Hz
• Motor Power: 1-1/2 hp
• Reset Type: Auto/Manual
• Connection Type: Line/Load Lug
• Overload Relay: C306 Bimetal
• Enclosure Type: Open
• Operating Cycles: 3000000 Cycles
• Construction Standard: NEMA 600V AC
• UL Cont. Amps: 9A
• Hp 1-Phase 115V: 0.33 Hp
• Hp 1-Phase 230V: 1 Hp
• Hp 3-Phase 200V: 1.5 Hp
• Hp 3-Phase 230V: 1.5 Hp
• Hp 3-Phase 460V: 2 Hp
• Hp 3-Phase 575V: 2 Hp
• Motor FLA: Refer to Heater
• Auxiliary Contacts: (1) NO
