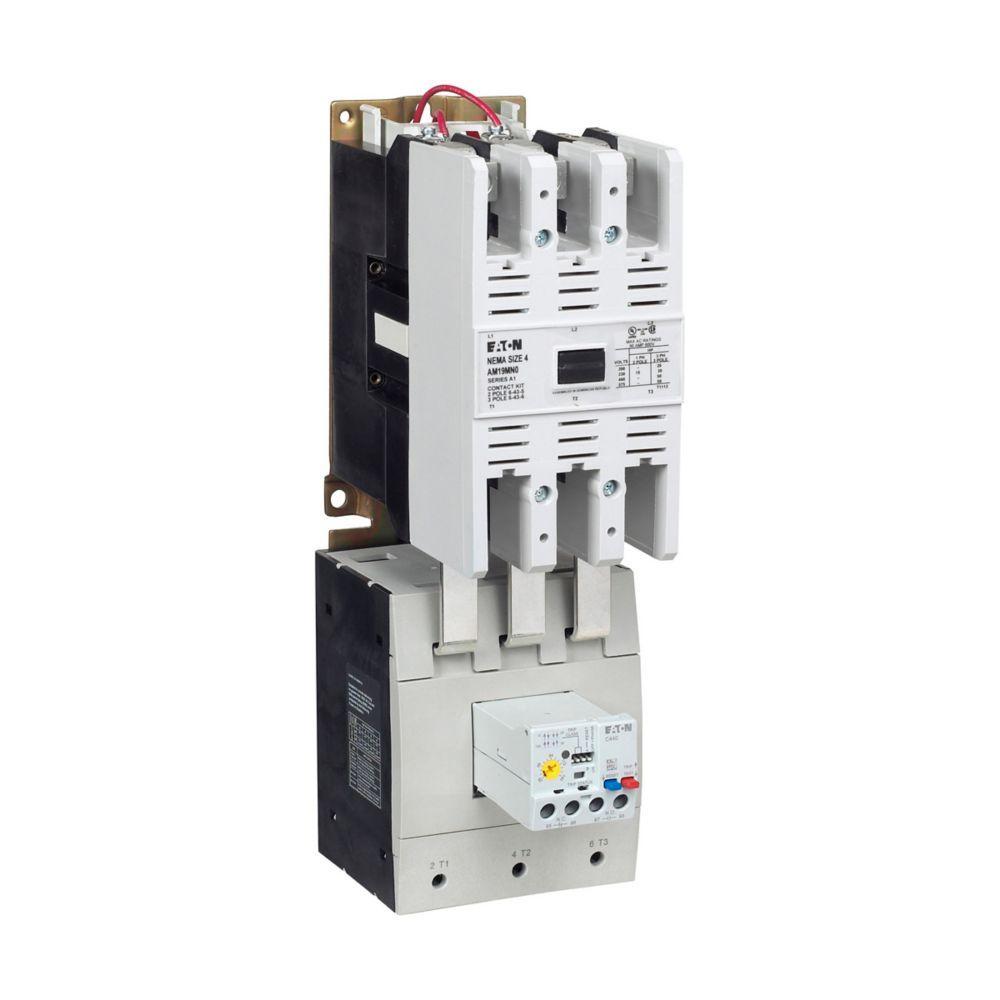

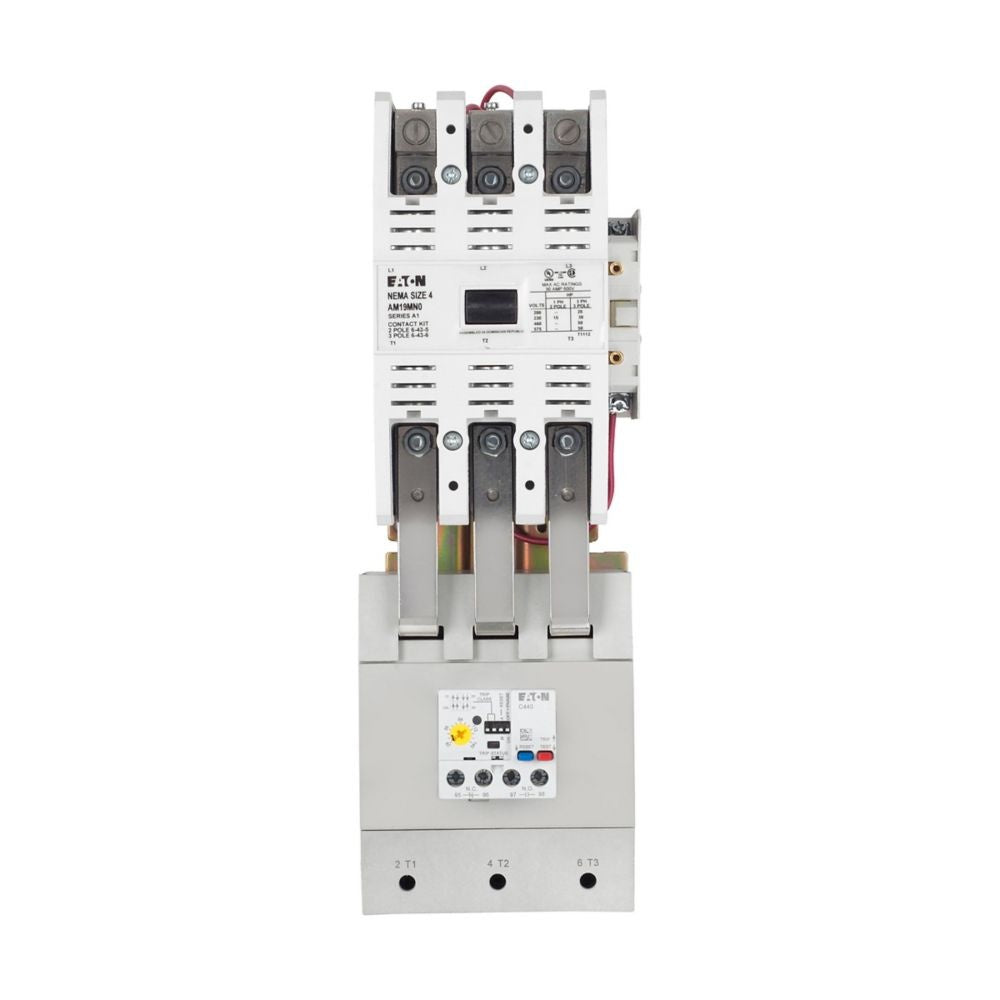

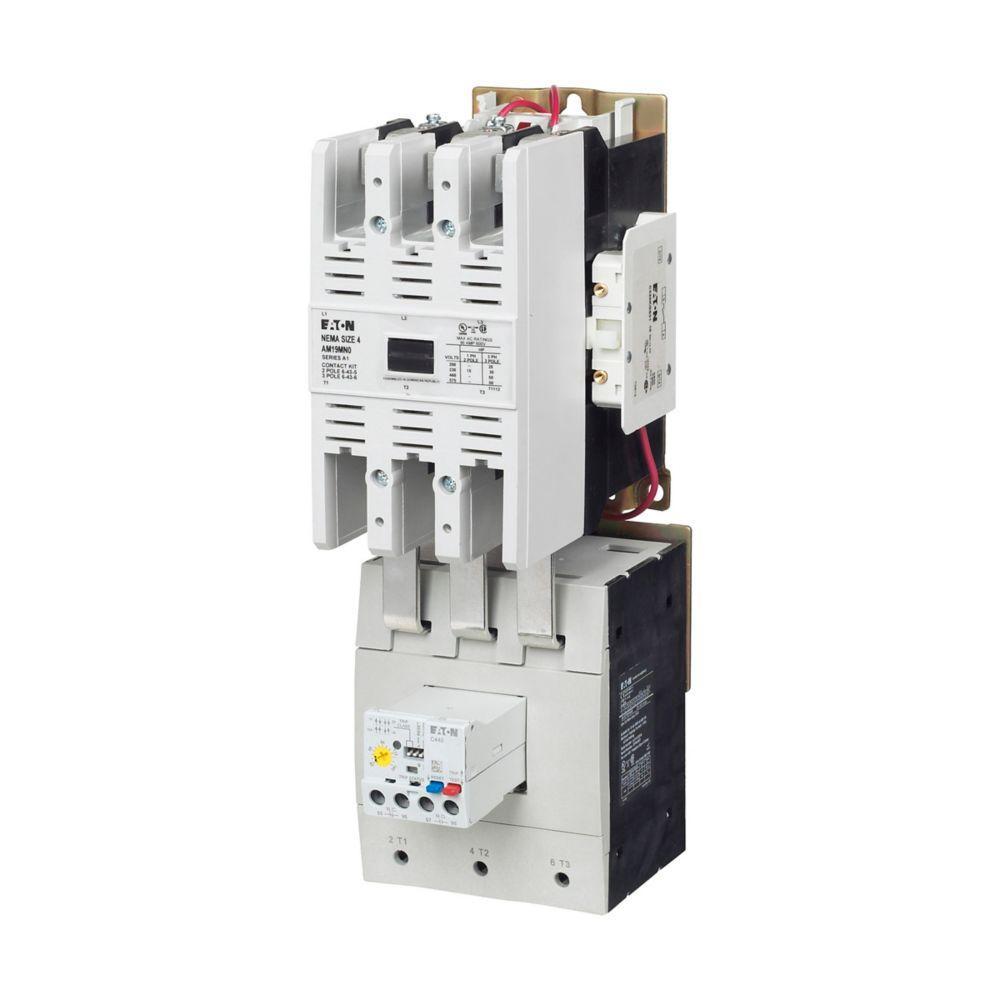

Eaton AN19NN0A5E140 Freedom Full Voltage Non-Reversing NEMA Starter 100 hp

Product Description

The EATON AN19NN0A5E140 Freedom series adjustable bi-metallic ambient compensated contactors are designed for use with CE or CN non-reversing and reversing contactors. They feature a full line of snap-on accessories common to both IEC and NEMA devices. It is used for electrical assemblies, panels and EOEMs applications.

• Screw type power terminals have captive, backed out self-lifting pressure plates with +/- screws - reduced wiring time
• Accessible terminals allow for ease of use and are convenient for simple wiring
• Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout

Product Highlights

Eaton's Freedom starters feature a compact, space-saving design, using state-of-the-art technology. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440).

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19NN0A5E140
• Country of Origin: DOM

Technical Specifications

• Amperage Rating: 28 to 140 A
• Connection Type: Screw
• Frequency Rating: 50/60 Hz
• Full Load Current: 28 to 140 A
• Motor Power: 100 hp
• Overload Relay: C440 Electronic
• Reset Type: Auto/Manual
• Series: Freedom
• Voltage Rating: 600 VAC
• Type: Full Voltage Non-Reversing
• Coil Voltage: 120 VAC
• Number of Poles: 3
• Enclosure Type: Open
• NEMA frame size: NEMA Size 4
• Configuration: Non-reversing
• Phase: 3
• Mounting Type: Panel
• Protection: Magnetic
• Standards: UL, CSA, CE, NEMA, IEC/EN, ISO, RoHS
• Nema Size: 4
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Standard: UL Listed
