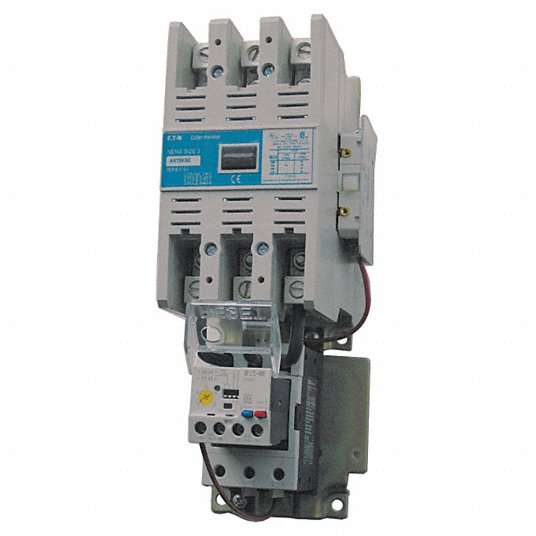

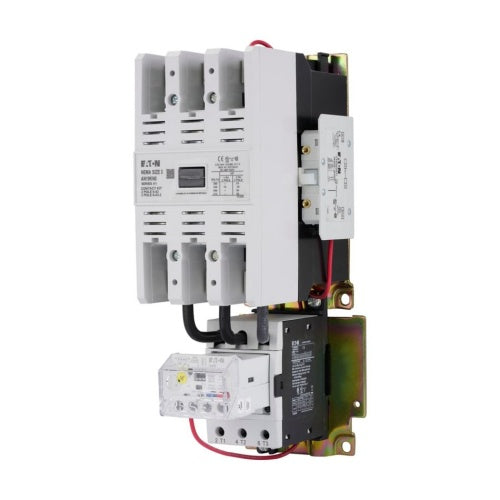

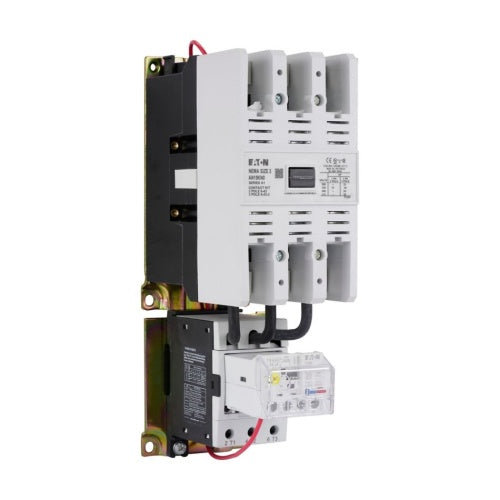

Eaton AN19KN0E5E100 Freedom NEMA Motor Control Starter 90 A

Product Description

The Eaton AN19KN0E5E100 Freedom NEMA motor control starter is a full voltage, non-reversing starter with a C440 electronic overload relay and a NEMA Size 3 open enclosure. It is designed for horizontal mounting and features a 208/60 coil voltage and a C440 standard feature set with a 20–100 A range.

• With C440 EOLR standard feature set
• SEL reset
• SEL class (10a, 10, 20, 30)

Product Highlights

This motor control starter offers reliable motor protection and easy installation, suitable for electrical assemblies, panels, and OEMs applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19KN0E5E100
• Country of Origin: Dominican Republic

Technical Specifications

• SKU: AN19KN0E5E100
• Product Name: Eaton Freedom NEMA motor control starter
• Catalog Number: AN19KN0E5E100
• UPC: 786685415604
• Product Length/Depth: 5.92 in
• Product Height: 11.4 in
• Product Width: 4.09 in
• Compliances: RoHS Compliant
• Certifications: UL, CSA, CE, NEMA
• Product Type: Motor control starter
• NEMA frame size: NEMA Size 3
• Relay: C440 electronic
• Type: Starter
• Special features: With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
• Configuration: Non-reversing
• Amperage Rating: 90 A
• Size: 3
• Mounting: Horizontal
• Overload relay: C440 electronic
• Coil Voltage: 208/60 VAC
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Eaton Electrical
• Voltage - Load: 208V
• Series: AN19
• Current - Output: 90A
• Packaging: Box
• Wattage - Load: 37.285 kW
• Part Status: Active
• Voltage - Supply: 208VAC
• Interface: CAN, EtherCAT, Modbus TCP, RS-485
• Motor Type: AC Motor
• Mounting Type: Chassis Mount
• Control / Drive Type: Motor Starter
• Operating Temperature: -25 C ~ 55 C
• Starter Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Phase: Three
• NEMA Size: 3
• Max Current (AC): 90 A
• Minimum Overload Relay Current Setting: 20 A
• Maximum Overload Relay Current Setting: 100 A
• Trip Class: 10A/10/20/30
• Frequency: 60 Hz
• Nominal Coil Voltage @ 60Hz: 208V AC
• Maximum Voltage Rating: 600V AC
• Horsepower @ Single Phase - 120V AC: 7-1/2 hp
• Horsepower @ Single Phase - 240V AC: 15 hp
• Horsepower @ Three Phase - 208V AC: 25 hp
• Horsepower @ Three Phase - 240V AC: 30 hp
• Horsepower @ Three Phase - 480V AC: 50 hp
• Horsepower @ Three Phase - 600V AC: 50 hp
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• Operator: None
• NEMA Enclosure Rating: No Enclosure
• Frame Size: S3
• Overall Height: 11.4 in
• Overall Width: 4.09 in
• Overall Depth: 5.92 in
• Mounting Style: Surface
• Mounting Postion: Horizontal
• Standards: CE; CSA; UL Listed
• UNSPSC: 39121521
• Brand: EATON
• Condition: New
• Reset Type: Automatic/Manual
• Application: Electrical Assemblies, Panels and OEMs Applications
• Enclosure Type: Open
• Overload Relay: C440 Standard Electronic
• Voltage Rating: 600
• Connection Type: Line/Load Lug
• Frequency Rating: 60
• Motor Power: 50
• Starter Enclosure Type: Open
• Starter Frequency: 60 Hz
• Starter NEMA Size: 3
• Starter Coil Voltage: 208 VAC
• Starter Reversing Capability: Non-Reversing
• Starter Amperage: 90 Amp
• Component: NEMA Non-Reversing Starter
