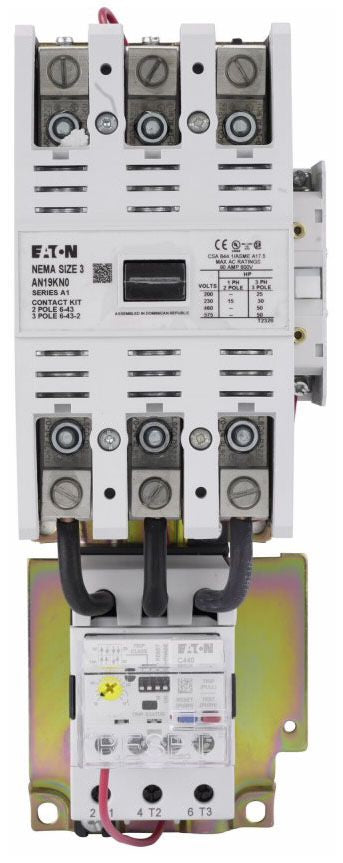

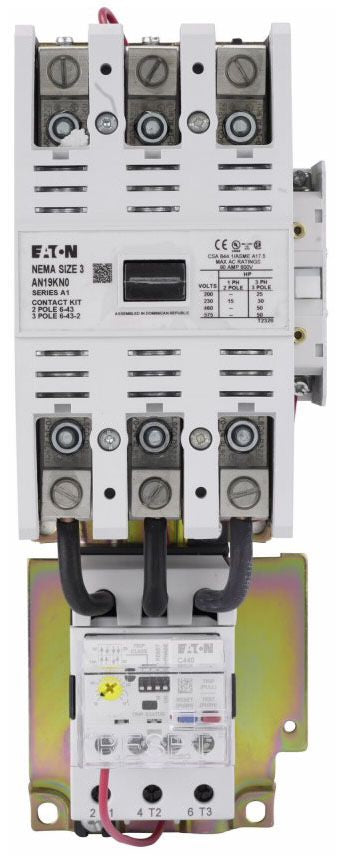

Eaton AN19KN0A5E100 Non-reversing Motor Starter

Product Description

The EATON AN19KN0A5E100 is a non-reversing magnetic motor starter designed to control and protect AC induction motors in industrial and commercial applications. Magnetic motor starters combine a contactor with overload protection in a single assembly, allowing the motor to be energized and de-energized safely under load. The AN19KN0A5E100 is a non-reversing type, meaning it drives the motor in a single rotational direction, which is the standard configuration for pumps, fans, compressors, and conveyor drives. Electricians and industrial maintenance technicians are the primary installers of this device.

This starter is suited for use in motor control centers, standalone enclosures, and panel-mounted applications across light industrial, commercial HVAC, and process equipment installations. Non-reversing starters are the standard choice wherever a motor only needs to run in one direction. Typical applications include fan coil unit motors, pump motors, and air handling unit drives found in both new construction and retrofit projects.

Key Features

• Non-reversing configuration for single-direction motor control
• Integrated overload relay provides motor overcurrent protection
• Magnetic contactor design allows remote or automated switching
• Suitable for motor control center or standalone enclosure mounting
• Weighs 11 pounds, indicating a robust, full-sized starter assembly

Compatibility

Designed as an OEM-style replacement or direct-install magnetic motor starter for commercial and industrial motor control applications where a non-reversing NEMA or IEC starter is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power sources before handling or wiring the starter. Verify that the starter coil voltage, amperage rating, and overload heater elements match the motor nameplate data before energizing. Do not modify the overload relay setting beyond the motor full-load amperage rating listed on the motor nameplate.

Technical Specifications

• Configuration: Non-Reversing
• Weight: 11 pounds
• UPC: 78668541552

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19KN0A5E100
