Eaton AN19GN0E5E045 Fdm Str Fvnr Sz2 45 Amp

Product Description

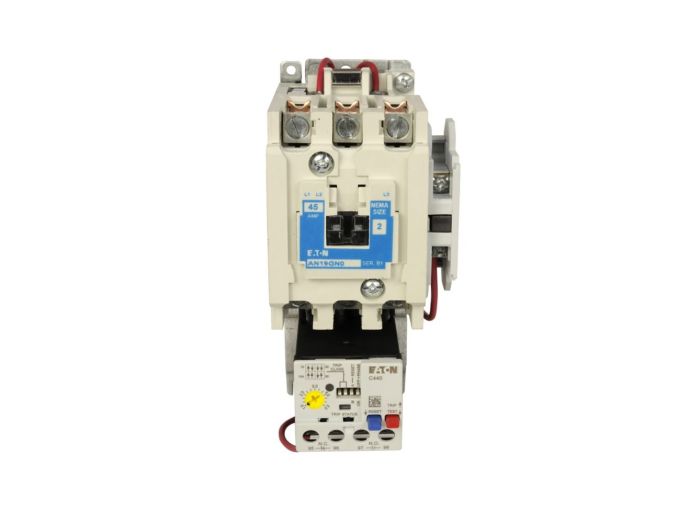

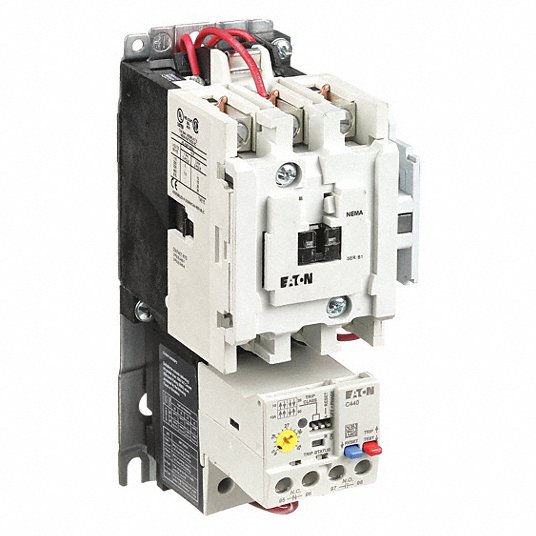

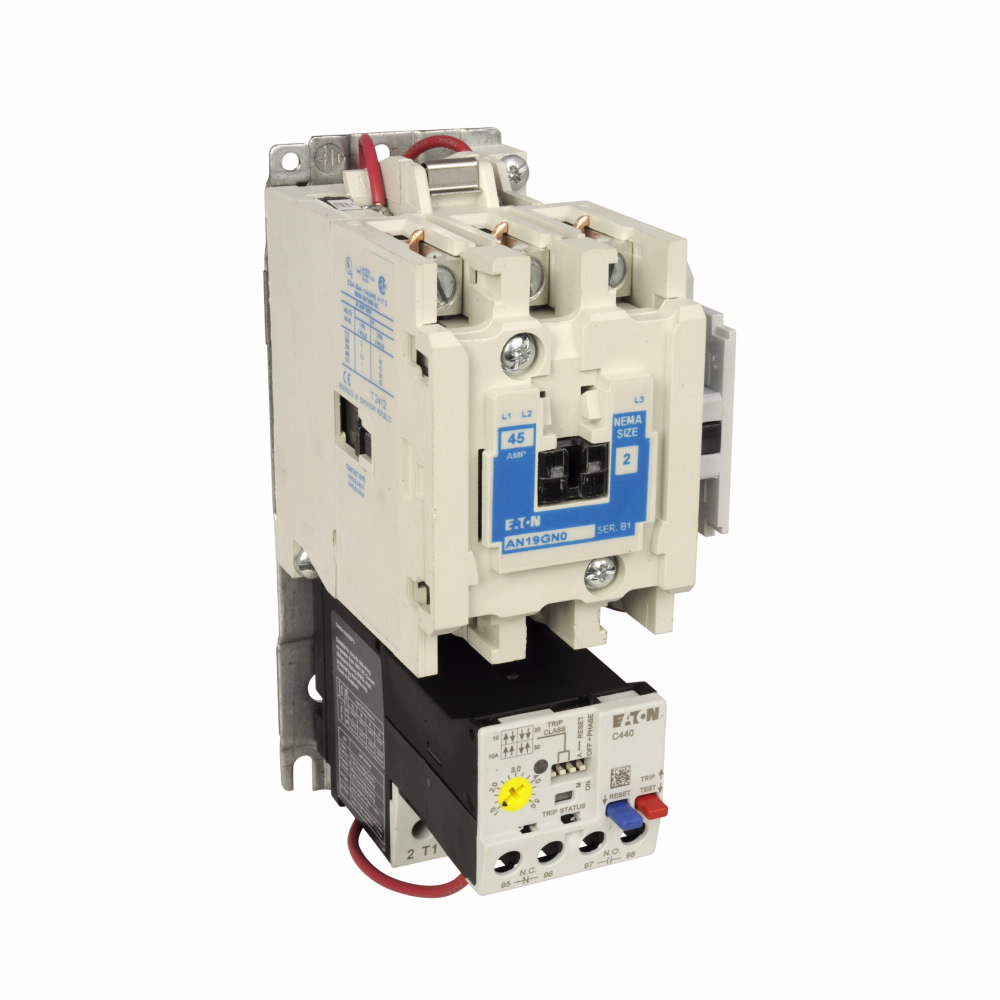

The Eaton AN19GN0E5E045 Freedom NEMA Starter is a full voltage non-reversing motor control starter with a C440 electronic overload relay and NEMA Size 2 open enclosure. Rated to 45 A with horizontal mounting and a 208/60 coil voltage, it features a C440 standard feature set. It connects and disconnects power to motors and other high-current equipment.

• With C440 EOLR standard feature set
• SEL reset
• SEL class (10a, 10, 20, 30)

Product Highlights

The Eaton Freedom series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19GN0E5E045
• Country of Origin: Dominican Republic

Technical Specifications

• GTiN: 00786685415307
• Size: 2
• Type: Motor control starter
• Brand: Eaton
• Height: 7.1 Inch
• Length: 4.98 Inch
• Weight: 4 lb
• Amperage: 45 Amp
• Product UPC: 78668541530
• 12-Digit UPC: 786685415307
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Mounting Type: Horizontal
• Enclosure Material: Stainless Steel
• Catalog Number: AN19GN0E5E045
• Product Length/Depth: 4.98 in
• Product Height: 7.1 in
• Product Width: 2.6 in
• Warranty: 1 year
• Compliances: RoHS Compliant
• Certifications: UL CSA CE NEMA
• Product Type: Motor control starter
• NEMA frame size: NEMA Size 2
• Relay: C440 electronic
• Special features: With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
• Configuration: Non-reversing
• Amperage Rating: 45 A
• Mounting: Horizontal
• Overload relay: C440 electronic
• Coil voltage: 208/60
• Series: Freedom
• Starter Style: NEMA
• Overload Protection Type: Electronic
• Thermal Units Required: None (Not Applicable to Electronic Overloads)
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Phase: Three
• NEMA Size: 2
• Max Current (AC): 45 A
• Minimum Overload Relay Current Setting: 9 A
• Maximum Overload Relay Current Setting: 45 A
• Trip Class: 10A/10/20/30
• Coil Voltage: 208V AC
• Frequency: 60 Hz
• Nominal Coil Voltage @ 60Hz: 208V AC
• Maximum Voltage Rating: 600V AC
• Horsepower @ Single Phase - 120V AC: 3 hp
• Horsepower @ Single Phase - 240V AC: 7-1/2 hp
• Horsepower @ Three Phase - 208V AC: 10 hp
• Horsepower @ Three Phase - 240V AC: 15 hp
• Horsepower @ Three Phase - 480V AC: 25 hp
• Horsepower @ Three Phase - 600V AC: 25 hp
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• Operator: None
• NEMA Enclosure Rating: No
• Enclosure: None
• Frame Size: S2
• Overall Height: 7.1 in
• Overall Width: 2.6 in
• Overall Depth: 4.98 in
• Mounting Style: Surface
• Mounting Postion: Horizontal
• Standards: CE; CSA; UL Listed
• UNSPSC: 39121521
• Manufacturer: Eaton
• Product Series: Freedom
• Family Series: Eaton Starters, Freedom Series
• Description: Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 2 open enclosure - 45 A, Horizontal mounting, 208/60 coil voltage, C440 standard feature set - 9 –45 A
• Style: Open
• Industry Standard: NEMA
• Poles: 3
• Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Current Rating: 45 A
• Coil Type: Magnetic
• Net Weight: 4.1 lbs
• Gross Weight: 4 lbs
• UL Cont. Amps: 45A
• Motor FLA: 9 - 45
• Auxiliary Contacts: (1) NO Right Side Mounted
