Product Description

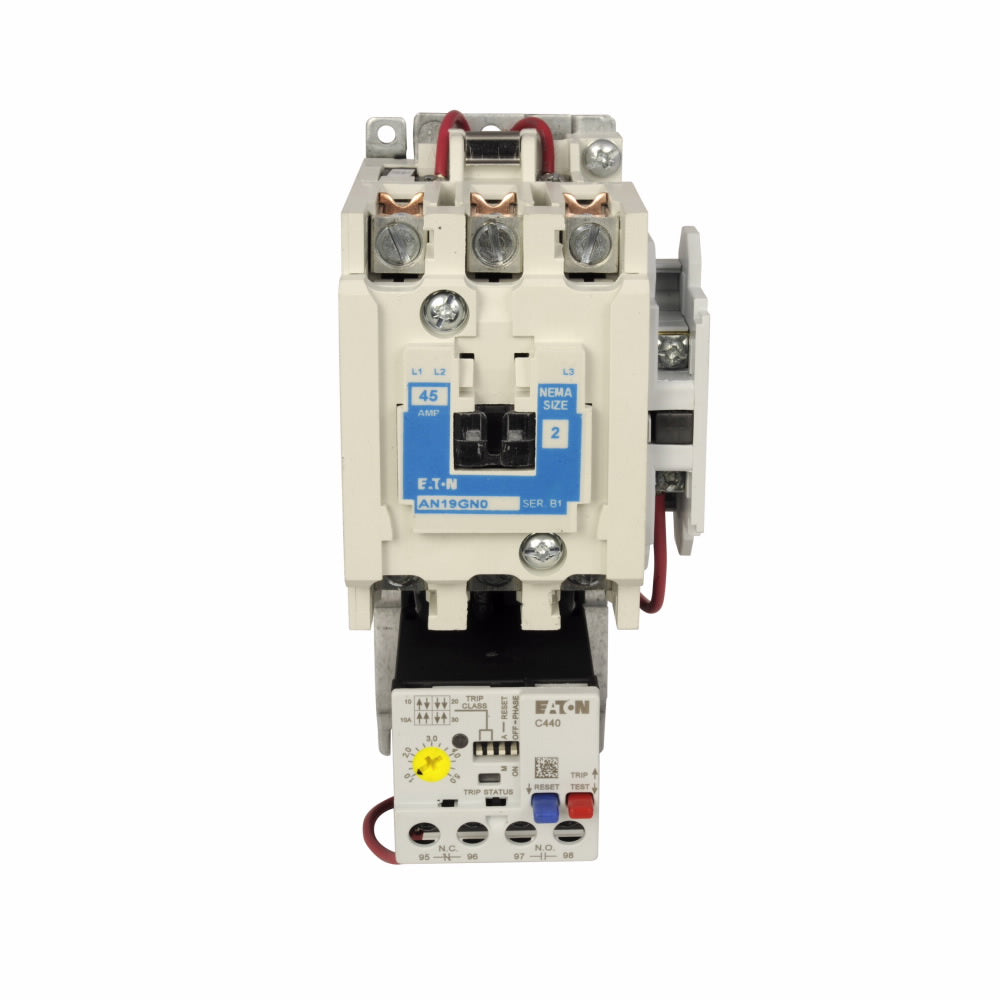

The EATON AN19GN0A5E045 is a NEMA starter designed to operate with 120/240 volts. It features a full voltage open design with non-reversing capability. This model reliably controls electric motors and comes equipped with a C440 electronic overload relay.
- Rated for 9 to 45 Amps.
- NEMA Size 2 for various applications.
- Mounting type: horizontal.
Product Highlights
Ideal for electrical assemblies, panels, and OEM applications. It is built to withstand high performance and can handle a motor power of up to 25 horsepower.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Model Number: AN19GN0A5E045
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 45 A
-
Number of Poles: 3
-
Coil Voltage: 110/120 VAC
-
Enclosure Type: NEMA 2
-
Dimensions: 4.98 x 2.6 x 7.1 inches
-
Frequency Rating: 50/60 Hz
-
Overload Relay: C440 Electronic
