Product Description

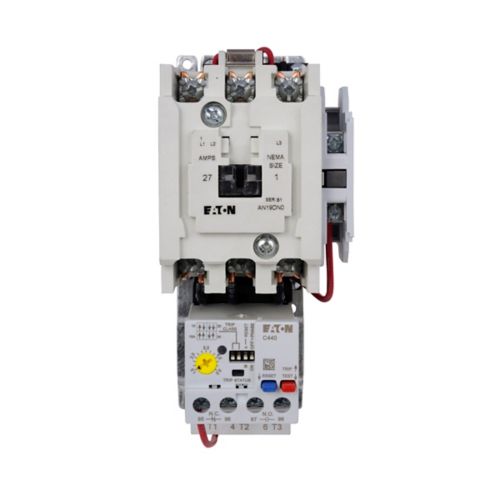

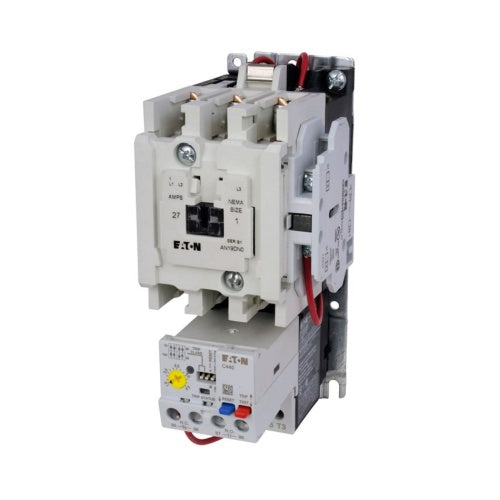

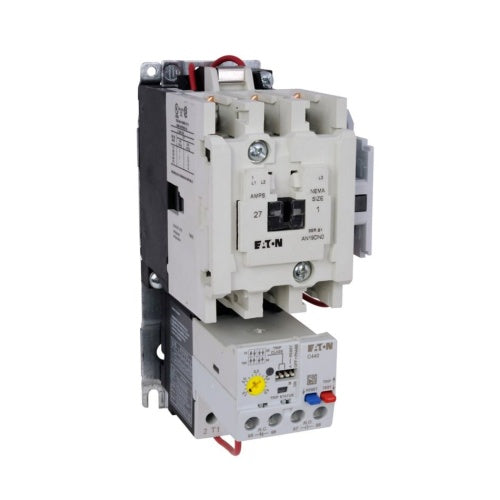

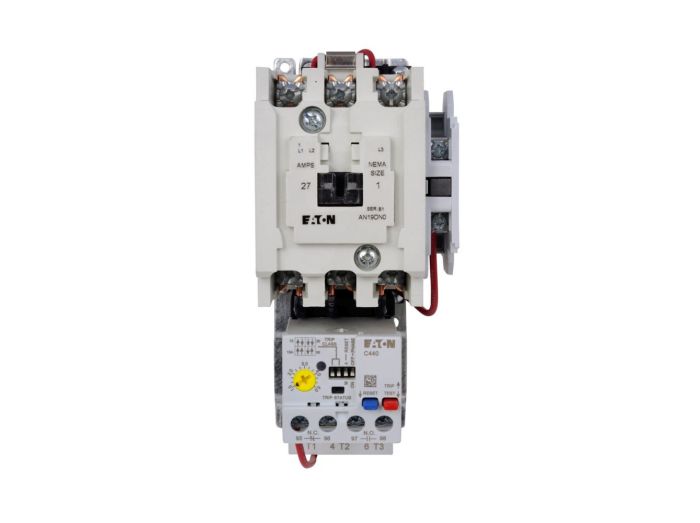

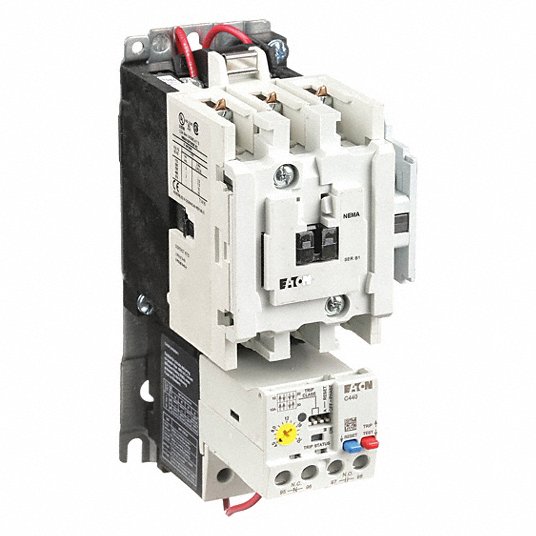

The Eaton AN19DN0E5E020 Freedom NEMA motor control starter is a full voltage, non-reversing starter with a C440 electronic overload relay and a NEMA Size 1 open enclosure. It features horizontal mounting and a 208/60 coil voltage, with a C440 standard feature set of 4–20 A.
- Full voltage non-reversing
- C440 electronic overload relay
- NEMA Size 1 open enclosure
- Horizontal mounting
- C440 standard feature set
Product Highlights
The Eaton Freedom series contactors feature long life and are suitable for most general duty control applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: AN19DN0E5E020
-
Country of Origin: Dominican Republic
Technical Specifications
-
Product Name: Eaton Freedom NEMA motor control starter
-
Catalog Number: AN19DN0E5E020
-
UPC: 786685417370
-
Product Length/Depth: 4.98 in
-
Product Height: 7.1 in
-
Product Width: 2.6 in
-
Compliances: RoHS Compliant
-
Certifications: UL CSA CE NEMA
-
Product Type: Motor control starter
-
NEMA frame size: NEMA Size 1
-
Relay: C440 electronic
-
Type: Starter
-
Special features: With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
-
Configuration: Non-reversing
-
Amperage Rating: 27 A
-
Size: 1
-
Mounting: Horizontal
-
Overload relay: C440 electronic
-
Coil voltage: 208/60
-
Phase: 1/3
-
Reset Type: Automatic/Manual
-
Application: Electrical Assemblies, Panels and OEMs Applications
-
Enclosure Type: Open
-
Overload Relay: C440 Standard Electronic
-
Voltage Rating: 600
-
Connection Type: Line/Load Lug
-
Frequency Rating: 60
-
Series: Type AN19 Freedom
-
Motor Power: 10
-
Starter Enclosure Type: Open
-
Starter NEMA Size: 1
-
Starter Frequency: 60 Hz
-
Starter Coil Voltage: 208 VAC
-
Starter Reversing Capability: Non-Reversing
-
Starter Amperage: 27 Amp
-
Manufacturer: Eaton
-
Component: NEMA Non-Reversing Starter
-
Product Series: Freedom
-
Family Series: Eaton Starters, Freedom Series
-
Description: Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 1 open enclosure - 27 A, Horizontal mounting, 208/60 coil voltage, C440 standard feature set - 4 20 A
-
Style: Open
-
Industry Standard: NEMA
-
Poles: 3
-
Voltage: 208 VAC
-
Nominal Voltage: 208 VAC
-
Current Rating: 27 A
-
Coil Type: Magnetic
-
Approvals: CSA, UL
-
Motor Starter Type: Non-Reversing Starter
-
Power Rating: 10hp
-
No. of Phases: Single Phase, Three Phase
-
No. of Poles: 3 Pole
-
Supply Voltage Min: 115VAC
-
Supply Voltage Max: 600VAC
-
IP / NEMA Rating: NEMA 1
-
Product Range: AN19 Freedom Series
-
Overload Protection Type: Electronic
-
Thermal Units Required: None (Not Applicable to Electronic Overloads)
-
Max Current (AC): 27 A
-
Minimum Overload Relay Current Setting: 4 A
-
Maximum Overload Relay Current Setting: 20 A
-
Trip Class: 10A/10/20/30
-
Nominal Coil Voltage @ 60Hz: 208V AC
-
Maximum Voltage Rating: 600V AC
-
Horsepower @ Single Phase - 120V AC: 2 hp
-
Horsepower @ Single Phase - 240V AC: 3 hp
-
Horsepower @ Three Phase - 208V AC: 7-1/2 hp
-
Horsepower @ Three Phase - 240V AC: 7-1/2 hp
-
Horsepower @ Three Phase - 480V AC: 10 hp
-
Horsepower @ Three Phase - 600V AC: 10 hp
-
Includes Auxiliary Contacts: Yes
-
Auxiliary Contacts Included: 1NO
-
Operator: None
-
NEMA Enclosure Rating: No
-
Enclosure: Frame Size
-
Overall Height: 7.1 in
-
Overall Width: 2.6 in
-
Overall Depth: 4.98 in
-
Mounting Style: Surface
-
Mounting Postion: Horizontal
-
Standards: CE; CSA; UL Listed
-
UNSPSC: 39121521
-
Brand: EATON
-
Condition: New
