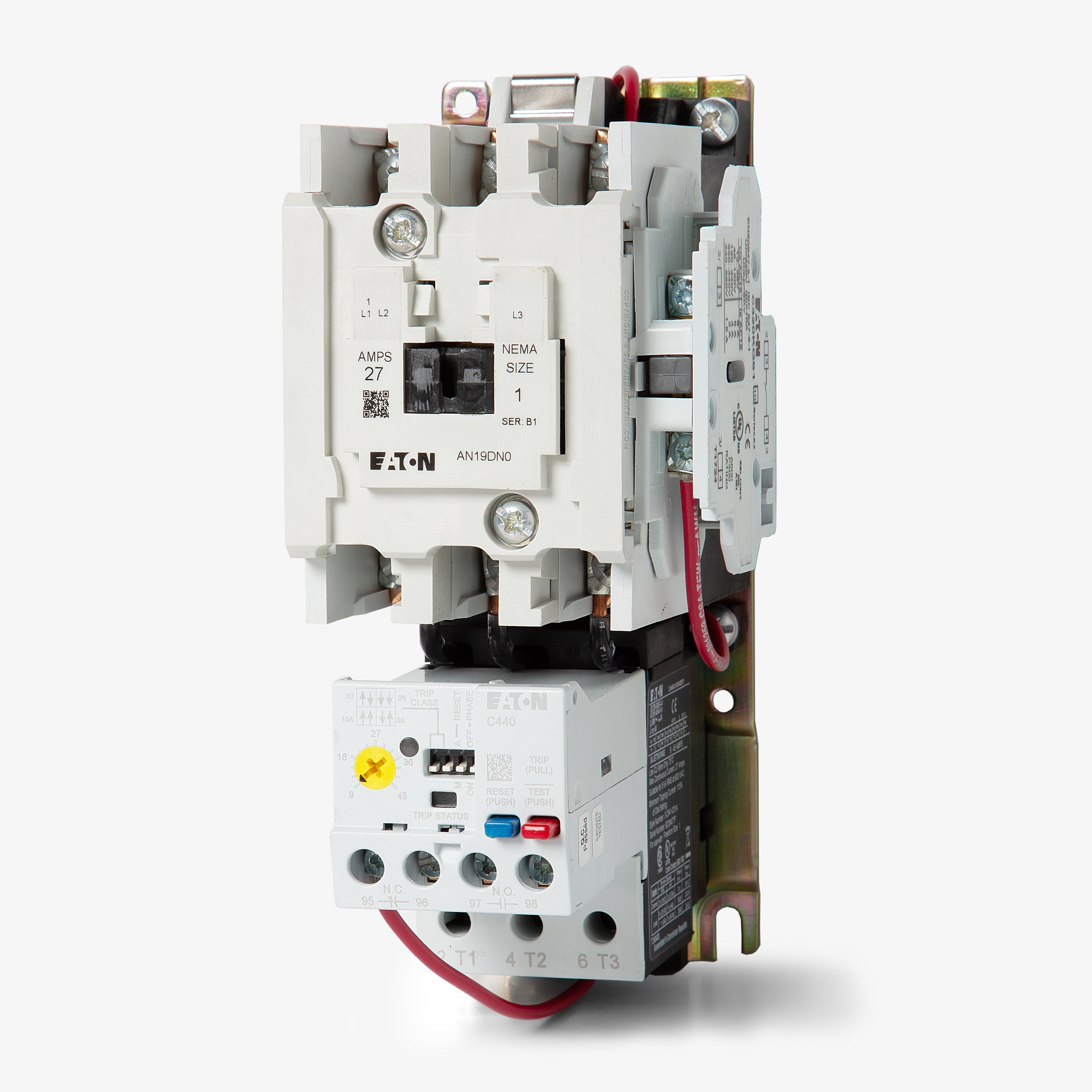

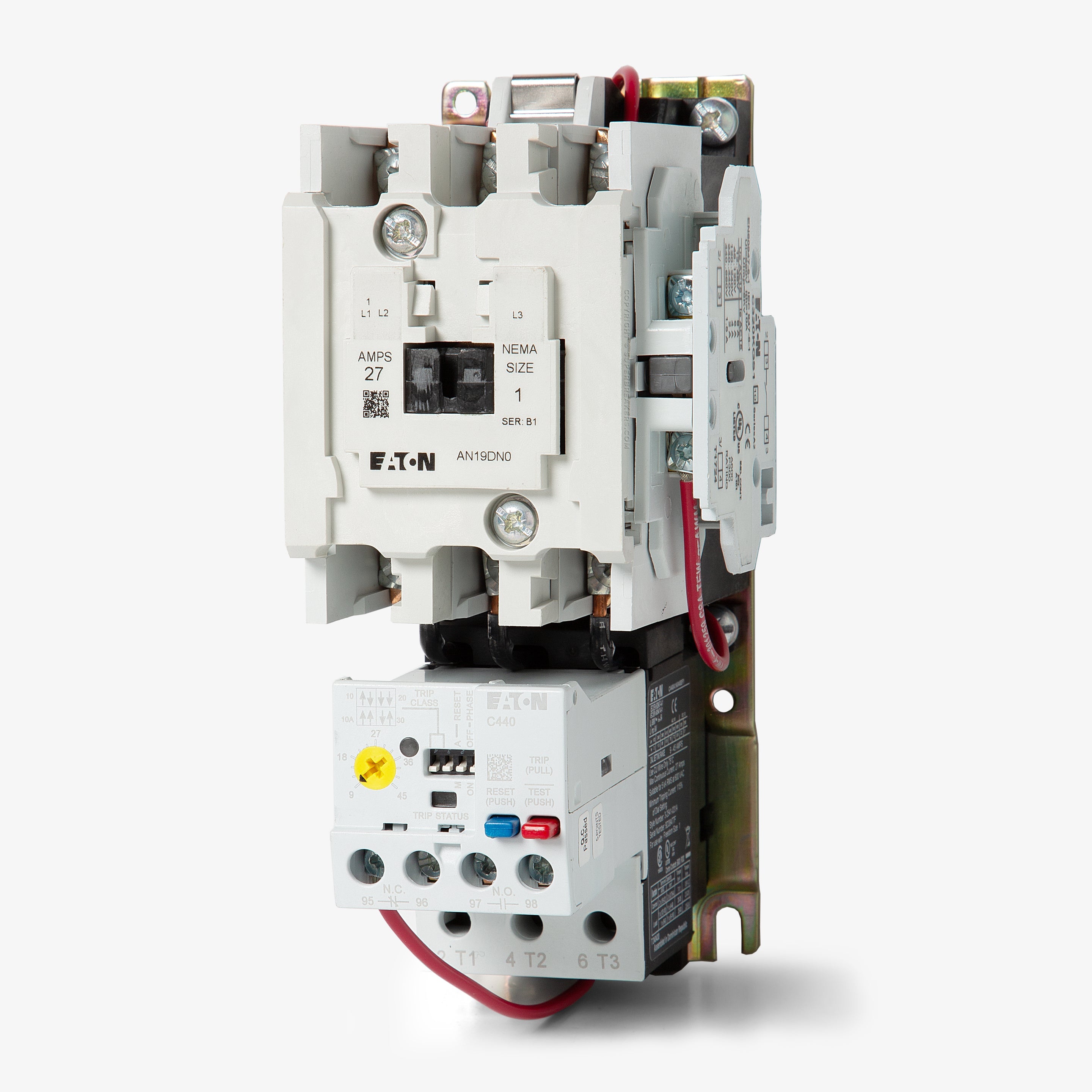

Eaton AN19DN0A5E045 Freedom NEMA Starter 10 Hp (Size 1)

Product Description

The Eaton AN19DN0A5E045 is a Freedom series full-voltage non-reversing NEMA 1 motor starter equipped with a C440 electronic overload relay. It is rated for 480/600 VAC service, supports a full-load amp range of 9 to 45 A, and is sized as NEMA 1 (Size 1) with a 27 A frame rating and 10 hp motor capability. The unit is configured for 3-phase operation with a 1 NO contact and horizontal mounting.

• C440 electronic overload relay; full-load amp range 9–45 A and frame rating 27 A
• Electrical ratings: 480/600 VAC, 3-phase, 10 hp motor capability; control/coil voltage 120 VAC @ 60 Hz or 110 VAC @ 50 Hz
• Mechanical: NEMA 1 open enclosure (Size 1), horizontal mounting, 3 poles, 1 NO auxiliary contact

Product Highlights

Full-voltage non-reversing NEMA 1 starter with C440 electronic overload relay; 480/600 VAC, 9–45 A range, 10 hp, 3-phase.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19DN0A5E045
• Country of Origin: Dominican Republic

Technical Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: AN19DN0A5E045
• Series: Freedom
• Product Type: Motor starter
• Starter Type: Full-voltage non-reversing starter
• Voltage Rating: 480/600 VAC
• Full Load Current: 9 to 45 A
• Amperage Rating: 27 A (frame rating)
• Motor Power: 10 hp
• Phase: 3-Phase
• Number of Poles: 3
• Contact Configuration: 1 NO

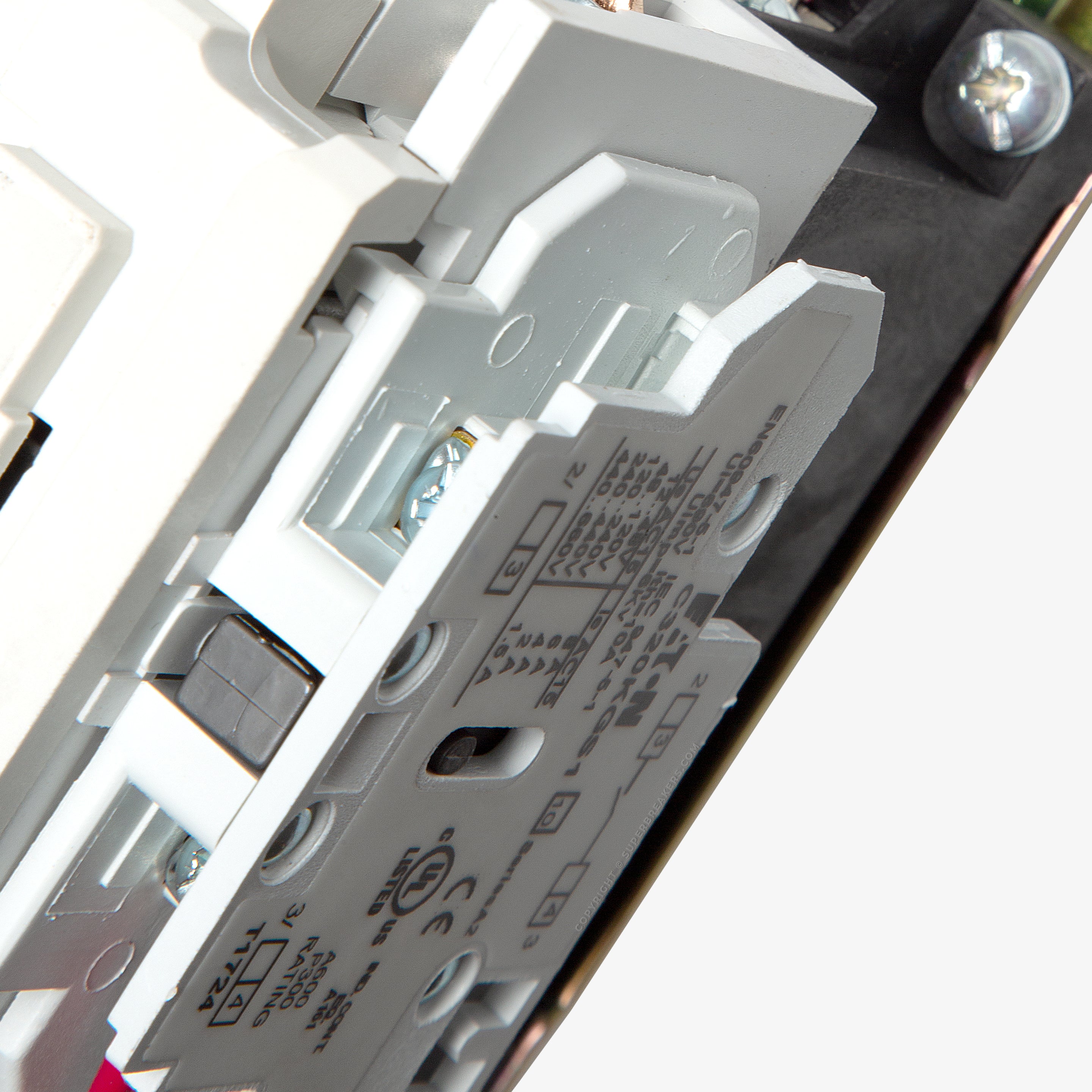

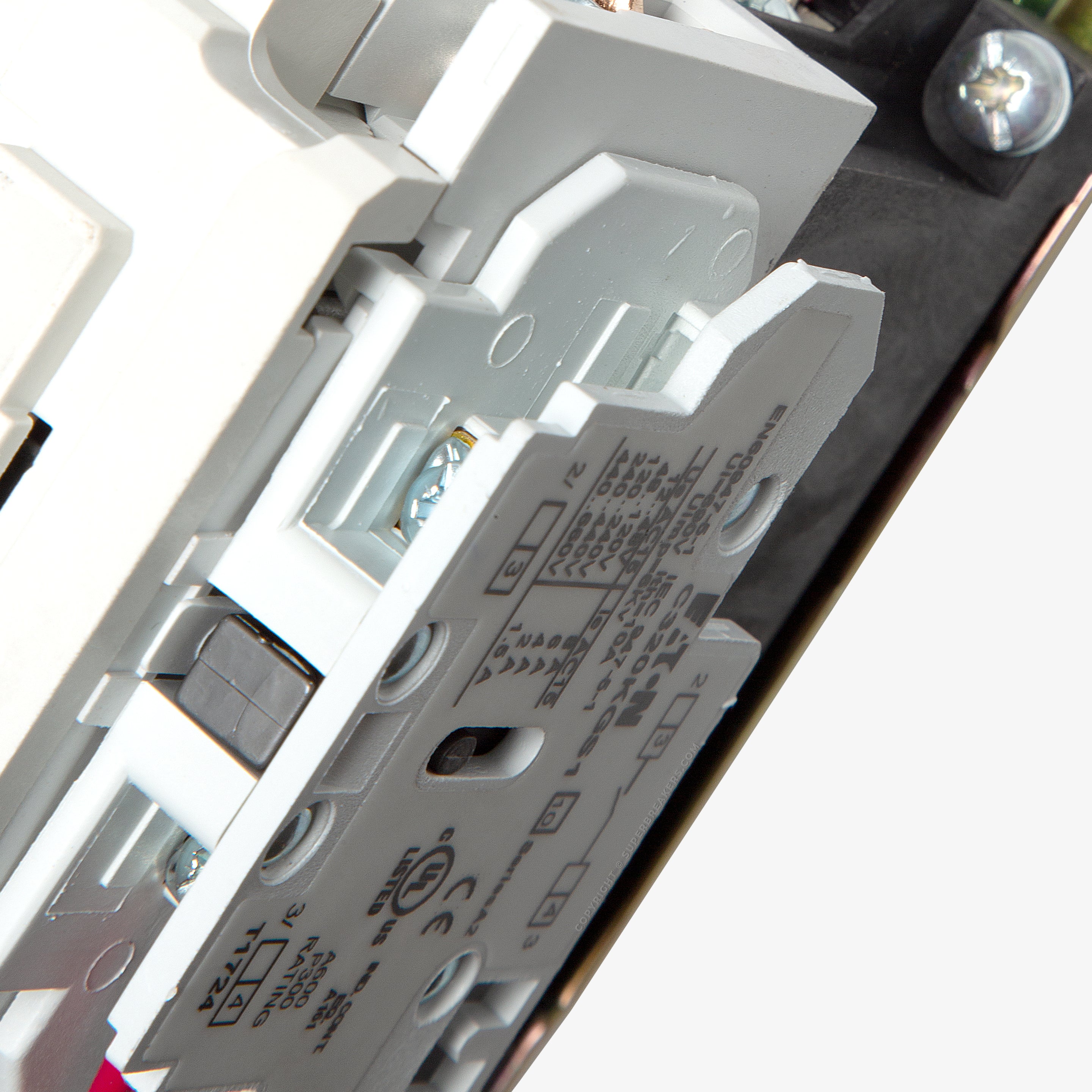

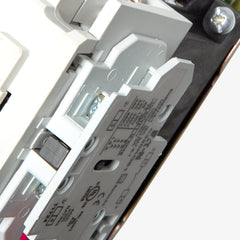

• Auxiliary Contact: 1 NO

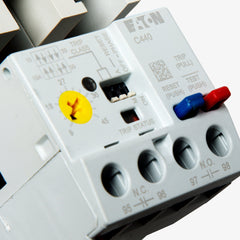

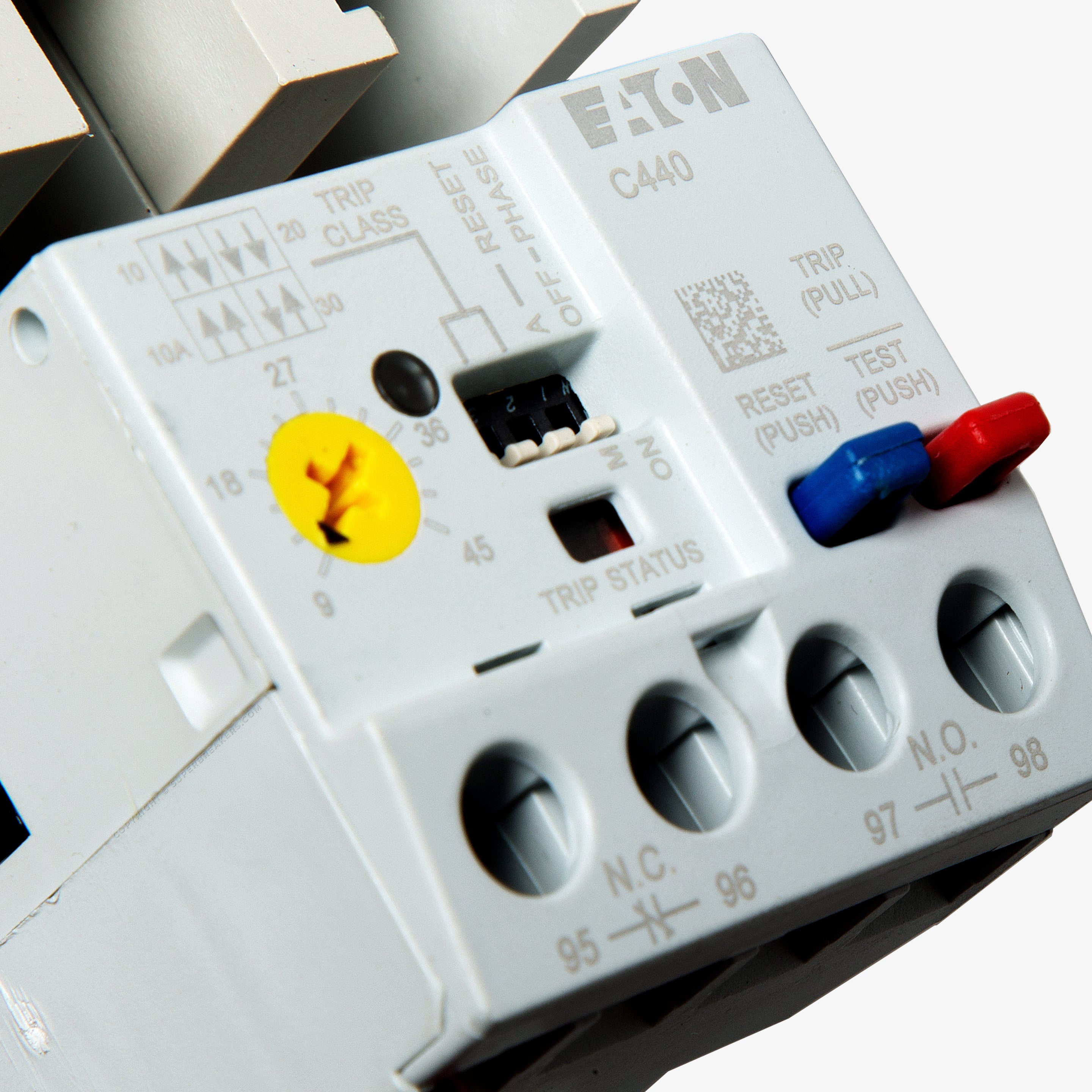

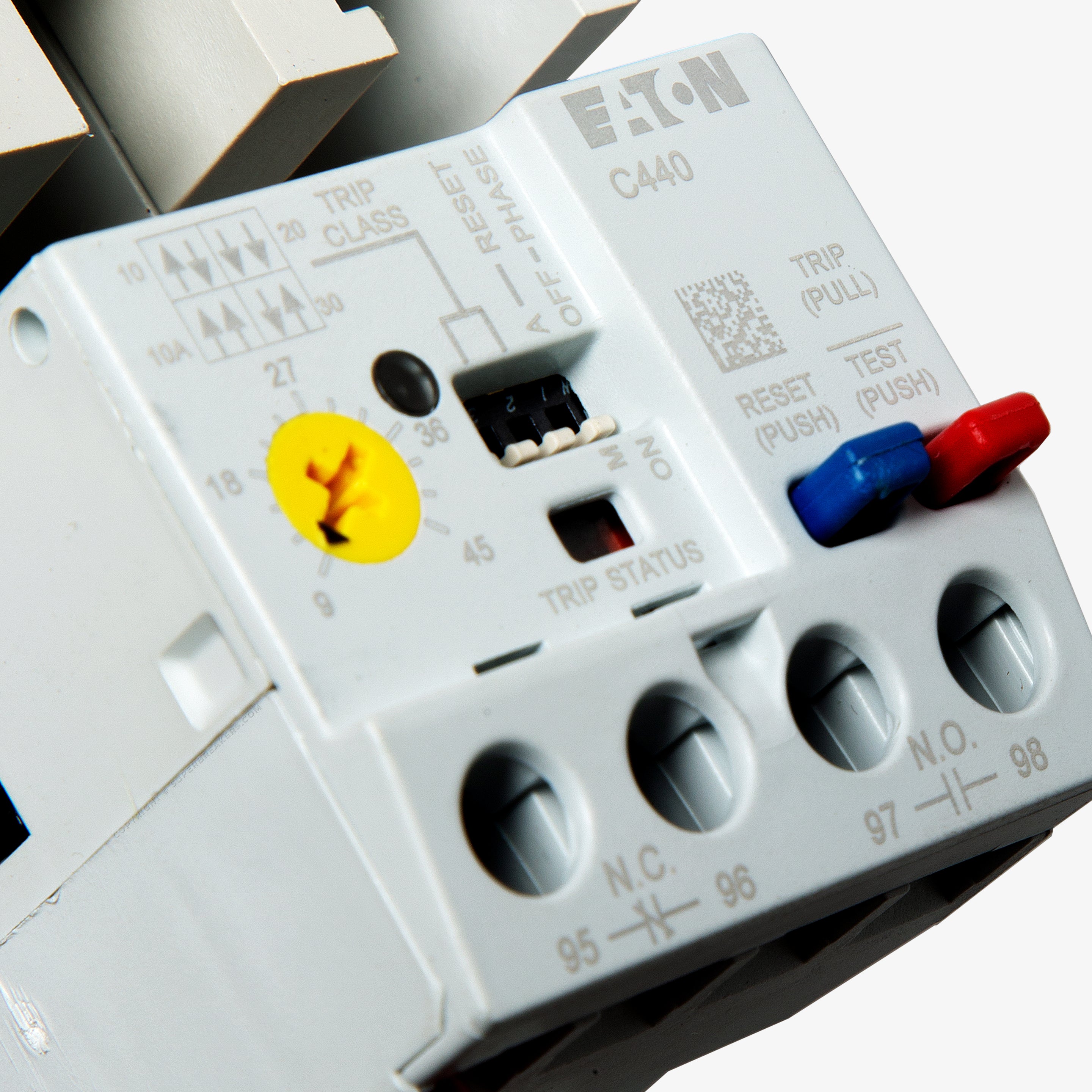

• Overload Relay: C440 electronic overload relay
• Coil Voltage: 120 VAC @ 60 Hz or 110 VAC @ 50 Hz
• Enclosure Type: NEMA 1 (open enclosure)
• NEMA Size: Size 1

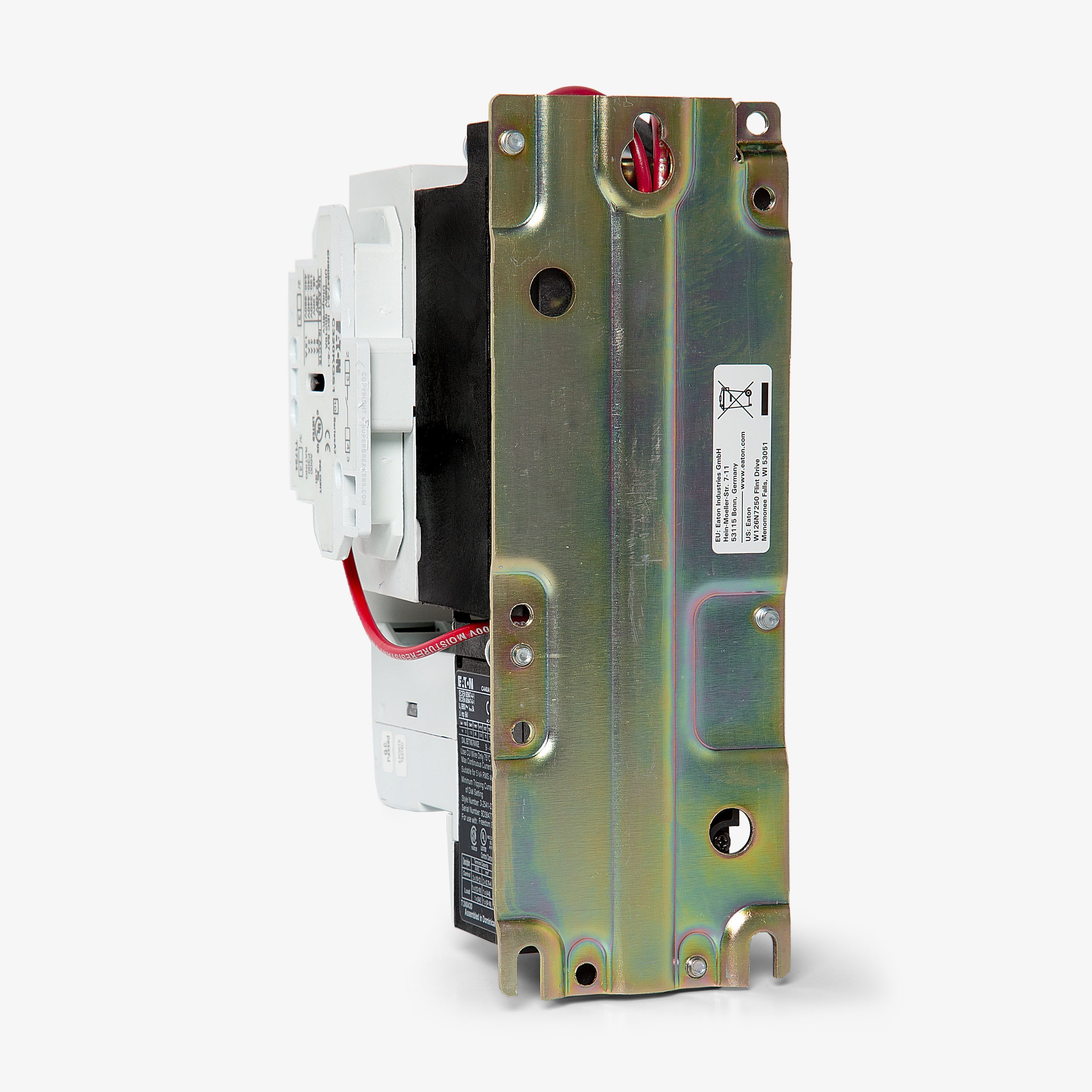

• Mounting Type: Horizontal
• Dimensions: 4.98 x 2.6 x 7.1 in
• Weight: 4 lb

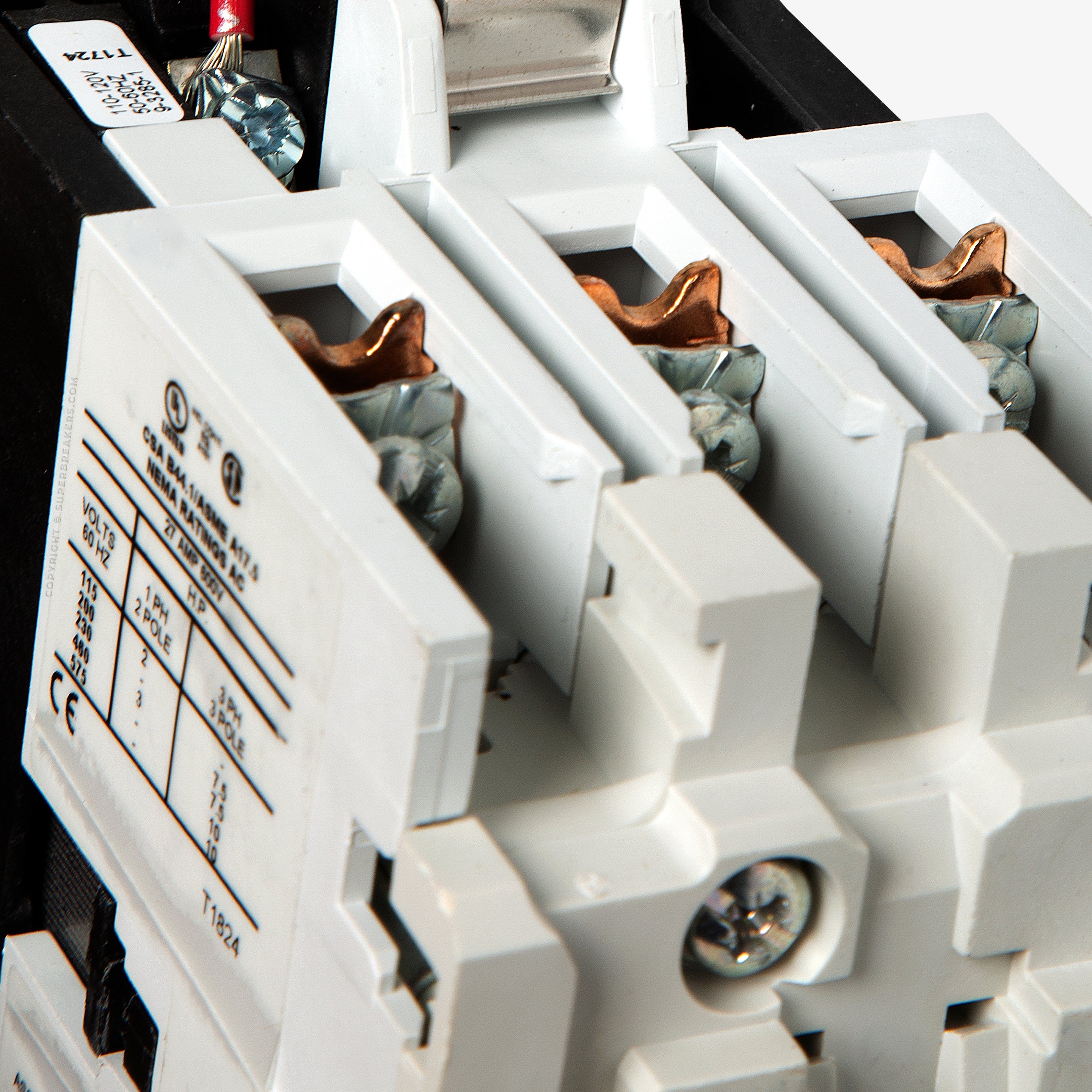

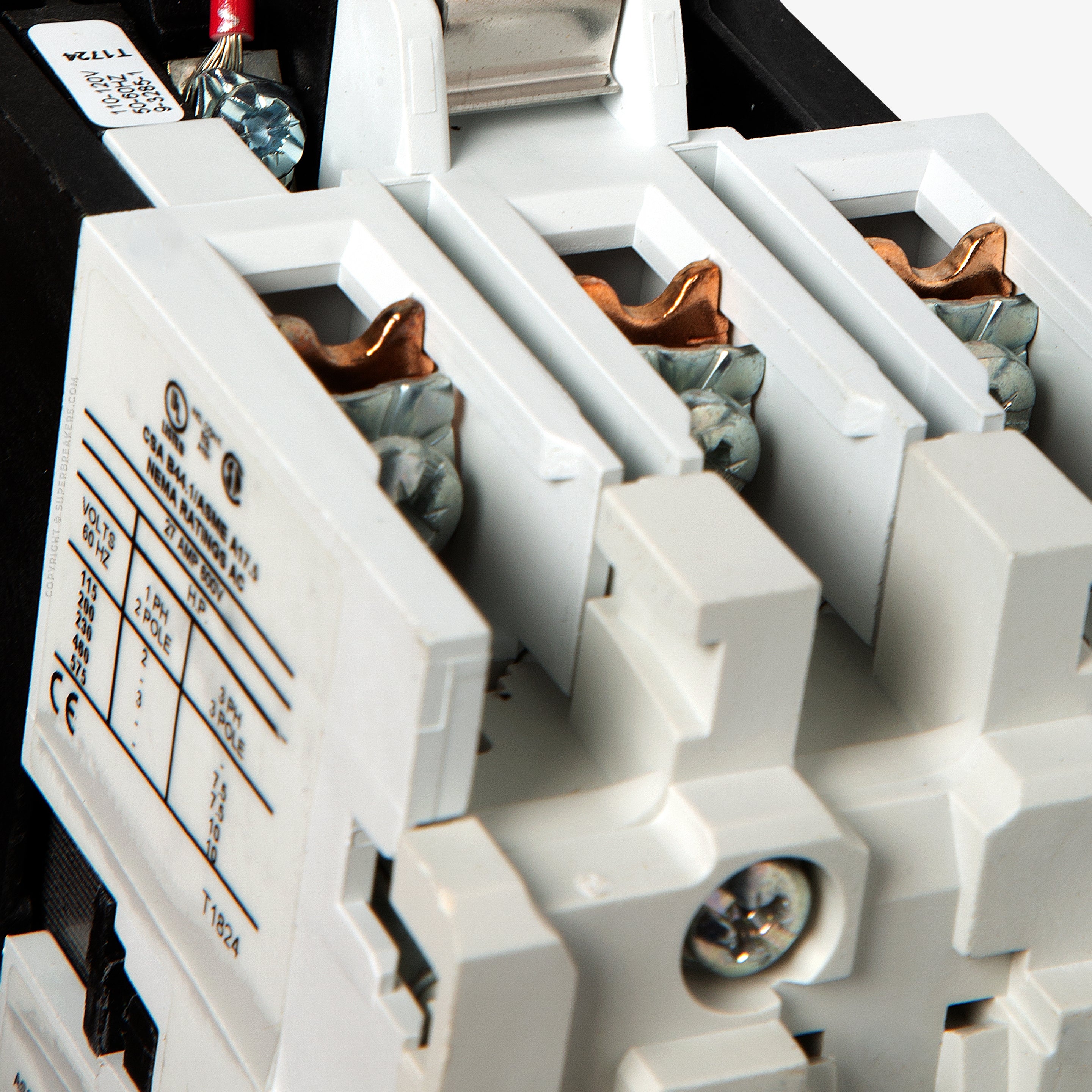

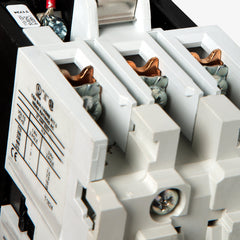

• Terminal Type: Screw-type captive power terminals
• Connection Type: Screw
• Certifications: NEMA, UL, CSA, CE, RoHS
• GTIN: 00786685417707
• UPC: 786685417707
• Country of Origin: Dominican Republic
