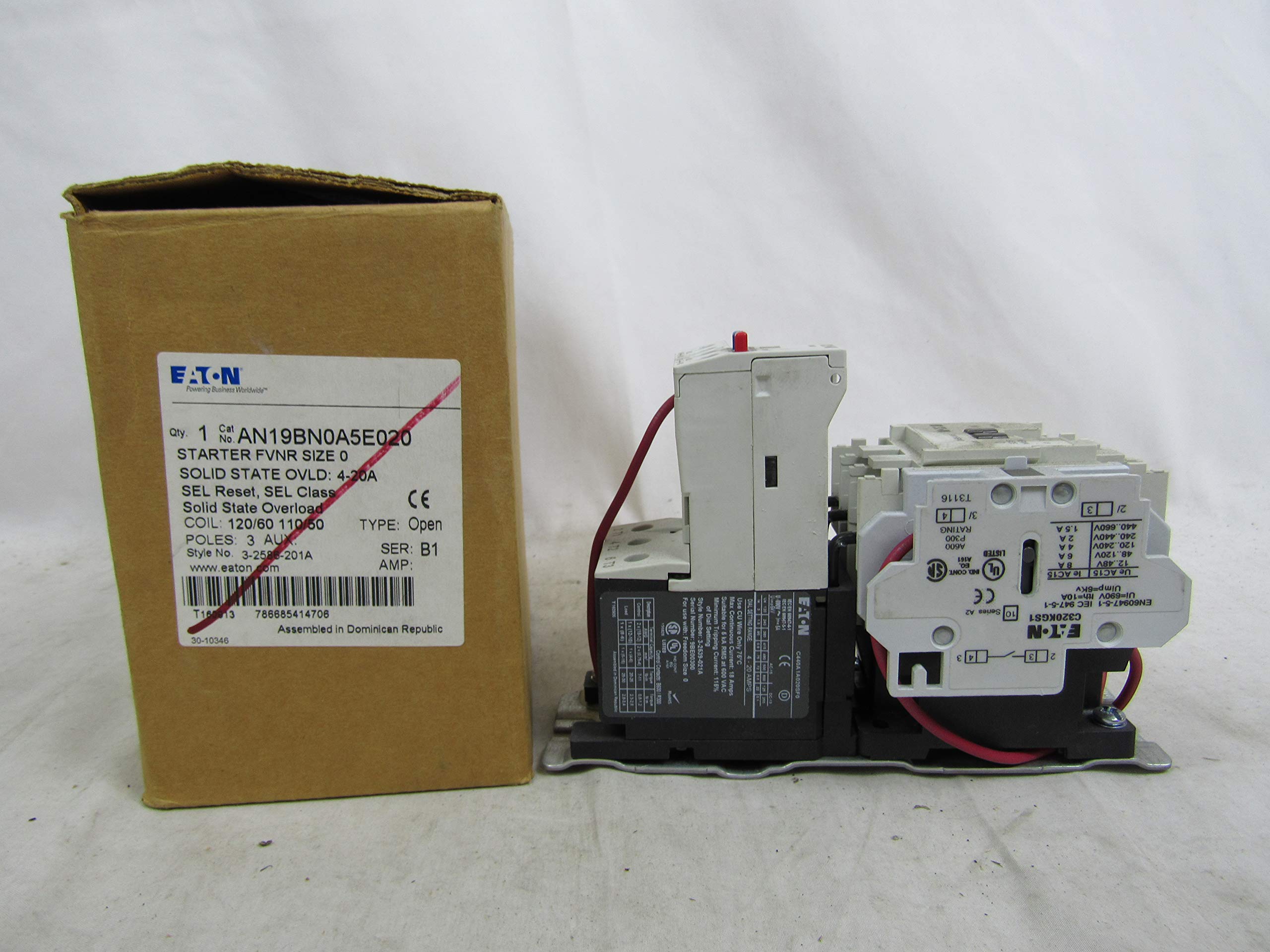

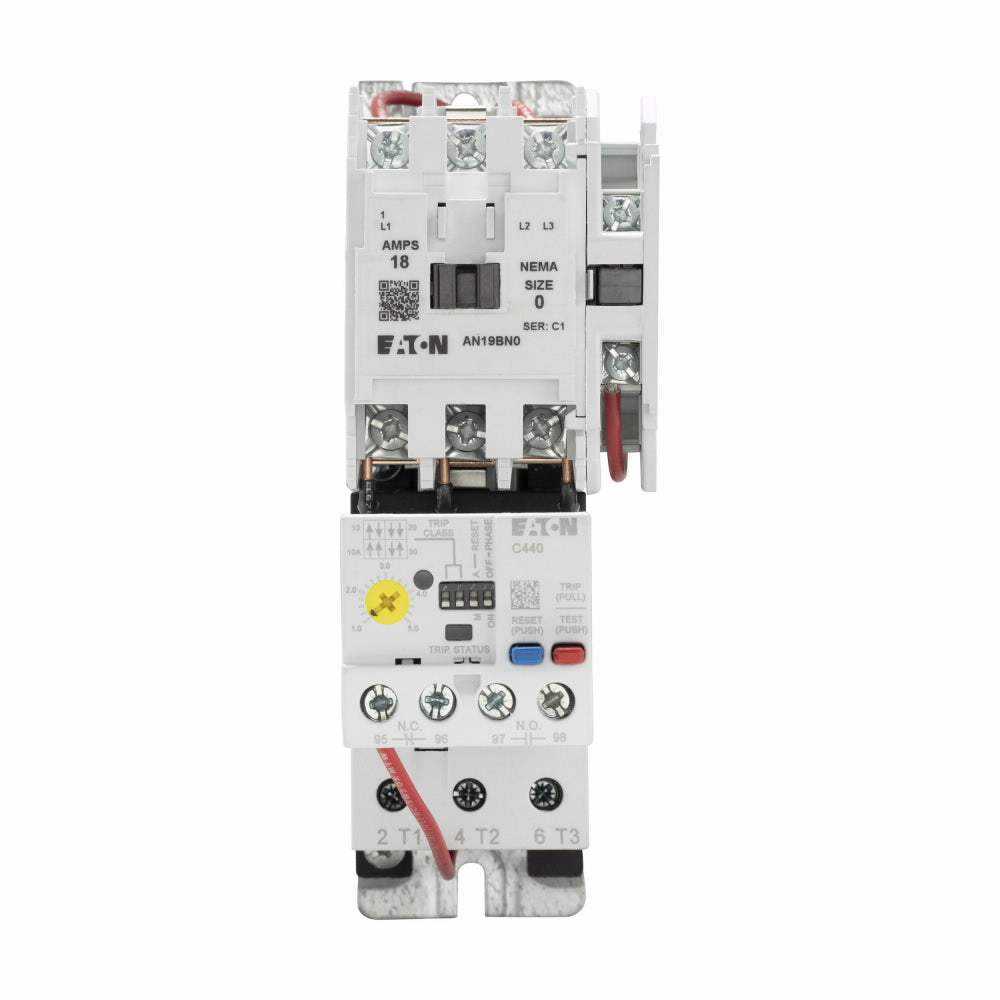

Eaton AN19BN0A5E020 NEMA 2 Non-Reversing Starter 480/600 Volt 18 Amp 5 Hp 1/3-Phase 3-Pole

Product Description

The Eaton AN19BN0A5E020 NEMA 2 Non-Reversing Starter is designed for effective motor control. Supporting up to 480/600 volts, it can manage 18 amps and work with motors up to 5 horsepower in 1/3-phase applications. The product features a robust C440 electronic overload relay and comes with a 3-pole configuration for comprehensive usability.

• 480/600 volts capacity
• Manages 18 amps
• Handles motors up to 5 horsepower

Product Highlights

The Eaton AN19BN0A5E020 is a reliable choice for industrial motor control. It is easy to install, maintain, and ensures robust performance for various applications.

Product Information

Standard Information

• Amperage: 18 Amp
• Motor Power: 5 hp

Technical Specifications

• Brand: Eaton
• MPN: AN19BN0A5E020
• Voltage Rating: 480/600 VAC
• Amperage: 18 A
• Size: 0
• Enclosure: NEMA 2
• Mounting Type: Horizontal
• Number of Poles: 3
• Dimensions: 4.9 inches x 1.97 inches x 6.6 inches
• Coil Voltage: 120/60 or 110/50
• Overload Relay: C440 Electronic
• Standards: CE, CSA, NEMA, UL, RoHS Compliant
• Applications: Electrical Assemblies, Panels, OEMs
• Country of Origin: Dominican Republic
