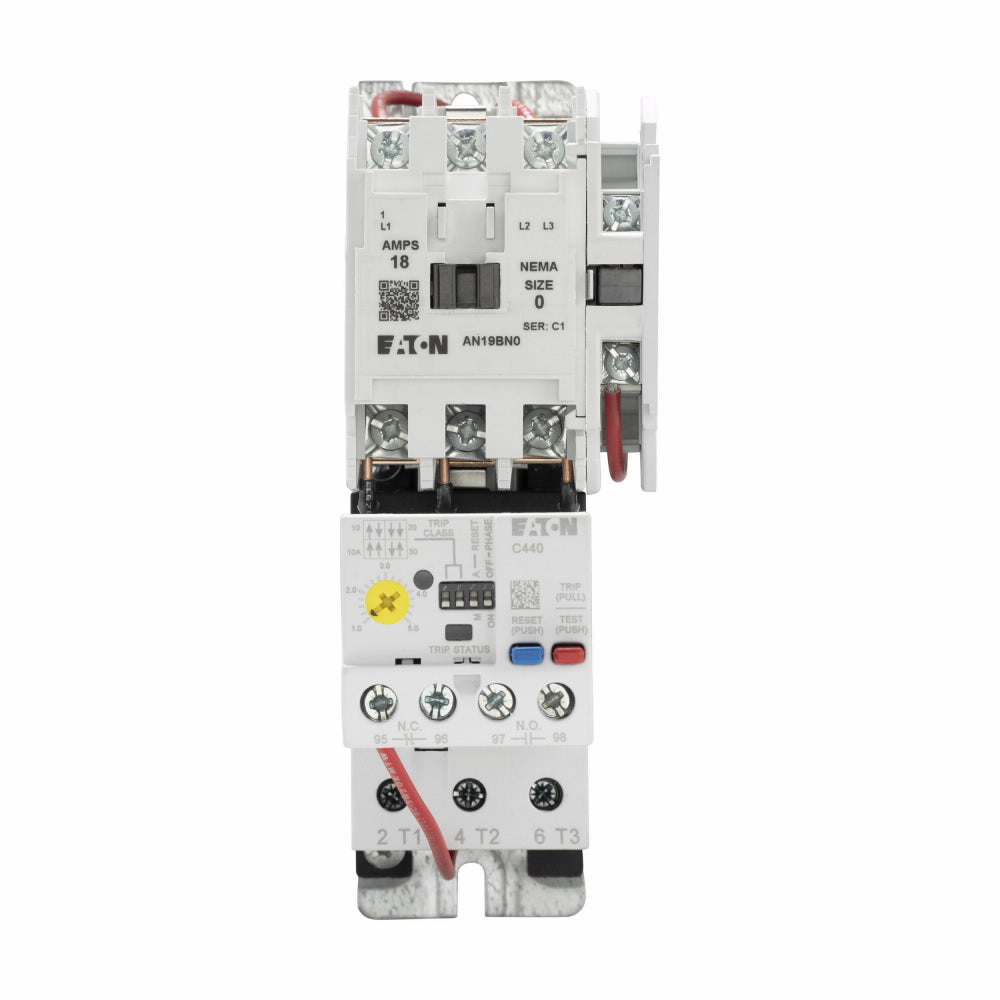

EATON AN19BN0A5E005 Non-Reversing NEMA Starter 110/120VAC 3 Pole

Product Description

EATON AN19BN0A5E005 is engineered for reliable performance in industrial applications. Its non-reversing operation is ideal for setups that require consistent motor control. This starter is recognized for its robust functionality in controlling motor operations.

• Equipped with a C440 electronic overload relay.
• Designed for horizontal mounting in a NEMA 0 enclosure.
• Features a coil voltage of 110/120 VAC suited for 3 poles operations.

Product Highlights

This motor starter supports a voltage rating of 600 VAC and can handle an amperage rating of up to 18 A. Suitable for use with engines up to 5 hp, it demonstrates versatility across different industrial setups.

Technical Specifications

• Manufacturer: Eaton
• MPN: AN19BN0A5E005
• Enclosure Type: NEMA 0
• Operating Cycles: 3000000 cycles
• Dimensions: 8 x 4 x 6 inches
• Weight: 2.22 lbs
• Standard Features: SEL reset, SEL class (10a, 10, 20, 30)
• Coil Voltage: 110/120 VAC
